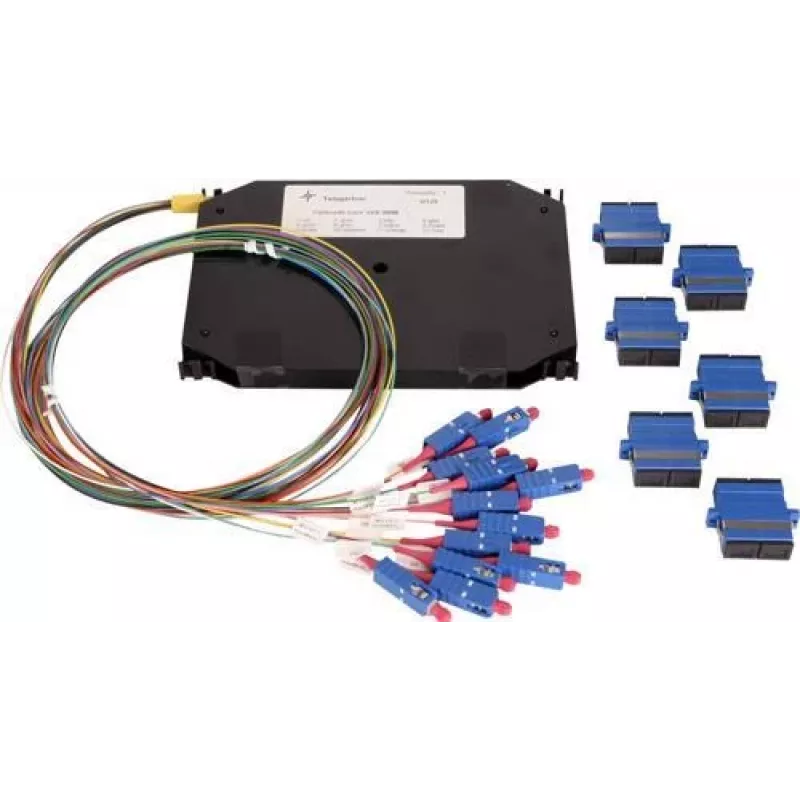

TELEGÄRTNER kuitu-laajennussarja 6xSCD 50/125 OM3 (H02050A0155)

This TELEGÄRTNER fiber optic extension set provides six SC duplex connections for OM3 multimode fiber, making it a practical choice for expanding network capacity in data centers and backbone cabling.

Highlights

• 6x SC Duplex connectors
• OM3 multimode fiber, 50/125 µm
• Supports 10/40/100 Gigabit Ethernet
• Aqua jacket for easy identification

In daily use

The set is engineered for high-speed data transmission at 850 nm and 1300 nm wavelengths. With insertion loss ≤ 0.3 dB and return loss ≥ 20 dB per connector, it maintains signal integrity in demanding environments.

Full specifications

• Fiber Type: Multimode OM3
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 12 (6x Duplex)
• Connector Type: SC Duplex
• Attenuation at 850 nm: ≤ 3.5 dB/km
• Attenuation at 1300 nm: ≤ 1.5 dB/km
• Jacket Color: Aqua
• Compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.3

Final note

Designed for reliable performance in LAN, SAN, and data center backbone applications.
