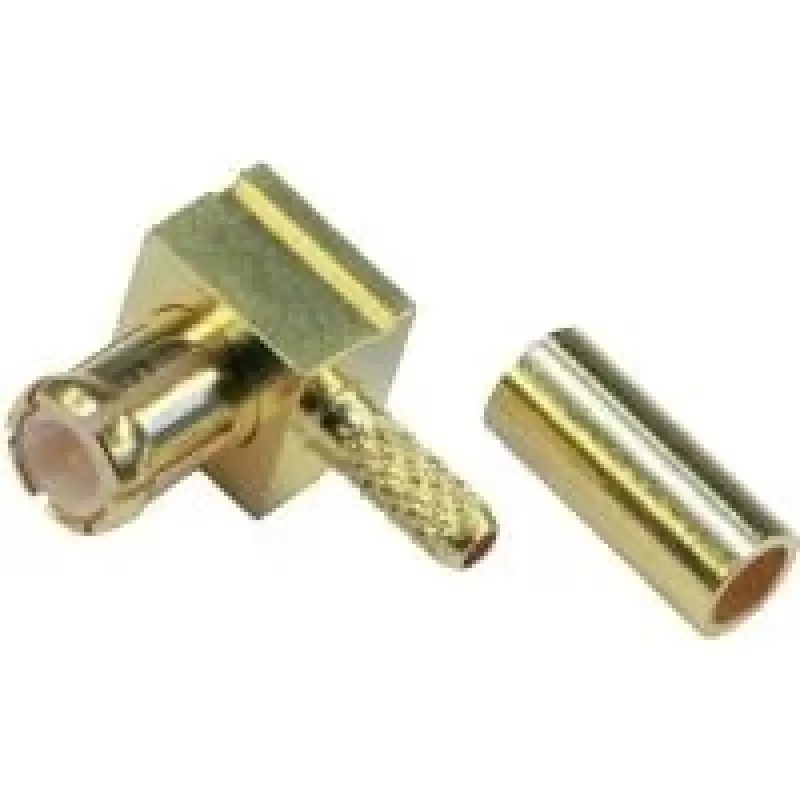

Telegärtner MCX kulma-puristuspistoke, 50 ohm, kullattu sisäjohdin

This MCX right-angle plug delivers reliable RF performance up to 6 GHz with a 50 Ohm impedance, making it ideal for high-frequency coaxial connections in compact spaces. Its angled body allows easy routing in tight installations, and the crimp termination ensures a secure, durable connection to compatible cables.

Advantages

The gold-plated center contact and nickel-plated brass body provide excellent conductivity and corrosion resistance. With a VSWR of ≤1.3 at 6 GHz and low contact resistance, it maintains signal integrity across the entire frequency range. The PTFE insulator supports stable performance from -55 °C to +155 °C, and the connector withstands at least 500 mating cycles.

Suitable for

• RF and microwave applications requiring a right-angle MCX plug
• Crimping to RG 174 A/U, RG 188 A/U, RG 316 /U, LMR-100A, or ENVIROFLEX 316 D cables
• Compact devices where space is limited

Key specifications

• Connector series: MCX
• Connector type: Plug
• Body style: Right-angle
• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• VSWR: ≤1.3 at 6 GHz
• Dielectric withstanding voltage: 750 Veff
• Insulation resistance: ≥1 GΩ
• Center contact resistance: ≤5 mΩ
• Outer contact resistance: ≤2.5 mΩ
• Body material: Brass, nickel-plated
• Center contact material: Brass, gold-plated
• Insulator material: PTFE
• Operating temperature: -55 °C to +155 °C
• Mating cycles: ≥500

Recommendations

For best results, use a proper crimp tool designed for MCX connectors and follow the cable manufacturer's stripping dimensions. Ensure the cable type matches one of the listed compatible cables.
