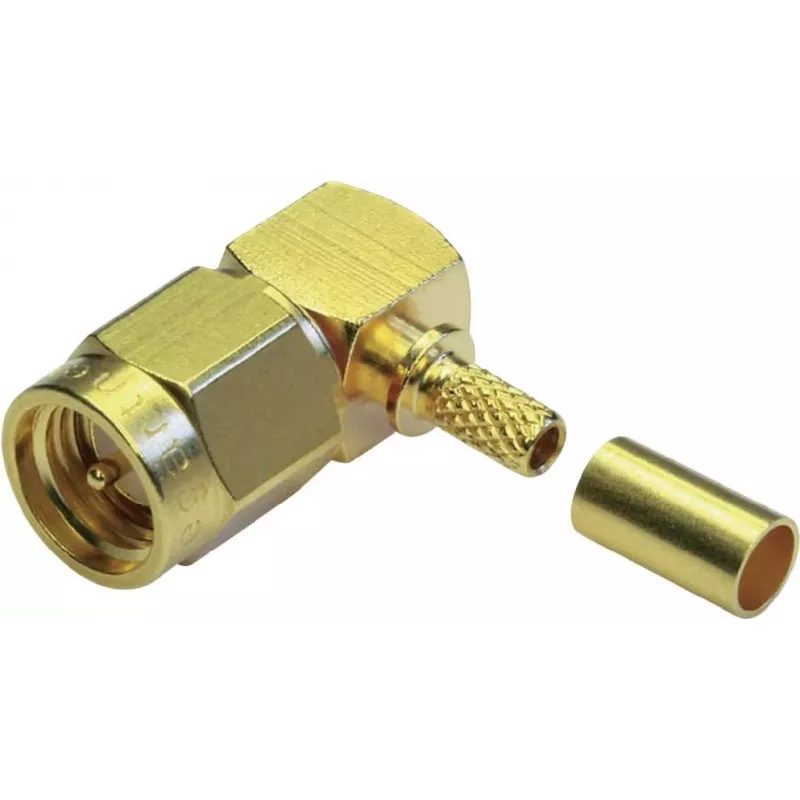

TELEGÄRTNER SMA-kulmapuristusliitin RG-58 C/U:lle, kulta, 5 kpl:n pakkaus J01150A0091

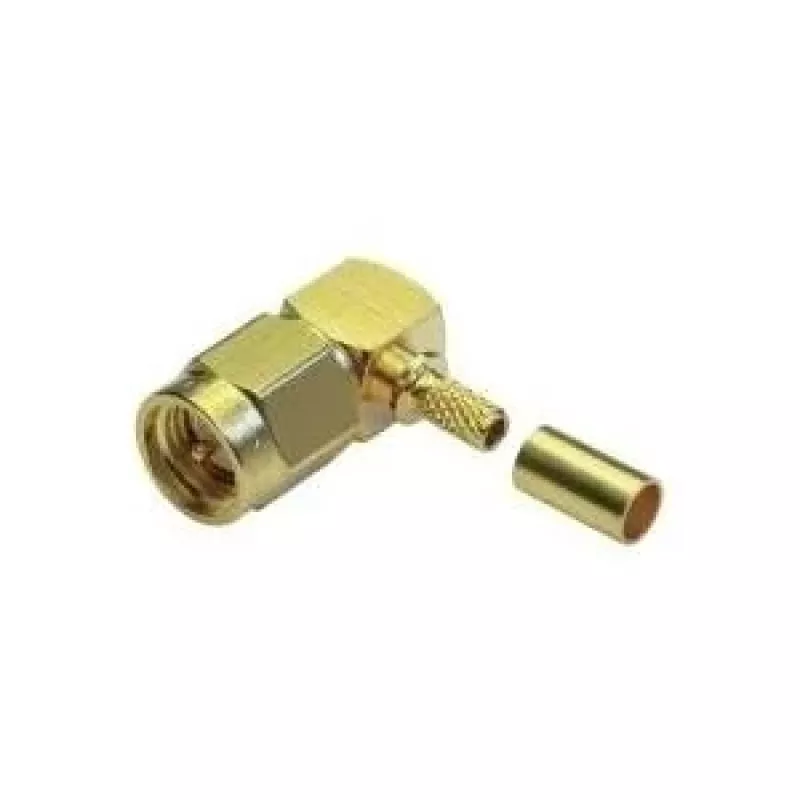

This TELEGÄRTNER SMA right-angle crimp plug offers a space-saving 90° connection for RG-58 C/U coaxial cable, ideal for tight installations where a straight connector would not fit. The gold-plated brass body and centre contact ensure low contact resistance and excellent corrosion resistance, while the PTFE insulator provides stable electrical performance up to 6 GHz.

Highlights

• Right-angle design for compact routing
• Crimp termination for secure, durable attachment
• Gold-plated contacts and body for reliable signal integrity
• 50 Ohm impedance, DC to 6 GHz frequency range
• Pack of 5 connectors

In daily use

The screw-on coupling mechanism provides a positive, vibration-resistant connection. With an operating temperature range of -65°C to +165°C and a voltage rating of 500 V rms, this connector is suitable for demanding RF applications including test and measurement, telecommunications, and industrial systems.

Full specifications

• Connector type: SMA male (plug)
• Connector style: Right-angle
• Termination method: Crimp
• Cable compatibility: RG-58 C/U (G01)
• Impedance: 50 Ohm
• Contact plating: Gold
• Body plating: Gold
• Body material: Brass
• Insulator material: PTFE
• Frequency range: DC to 6 GHz
• Voltage rating: 500 V (rms)
• Operating temperature: -65°C to +165°C
• Dielectric withstanding voltage: 1500 V (rms)
• VSWR: ≤ 1.25 @ 6 GHz
• Coupling mechanism: Screw-on
• Quantity per pack: 5
• Manufacturer series: G01 C0405

Final note

TELEGÄRTNER quality ensures consistent performance and long-term reliability for professional RF installations.
