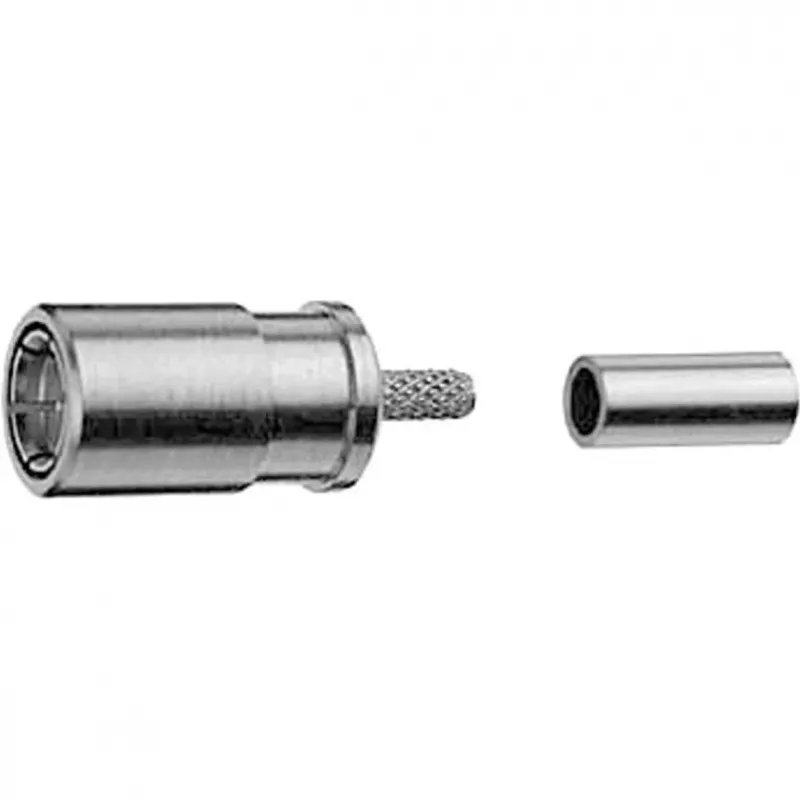

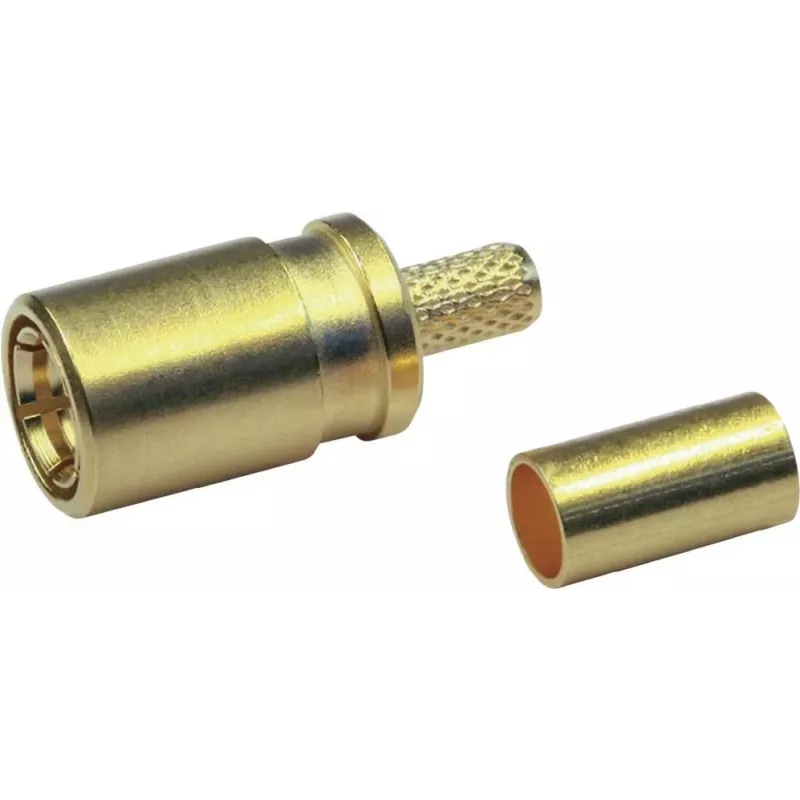

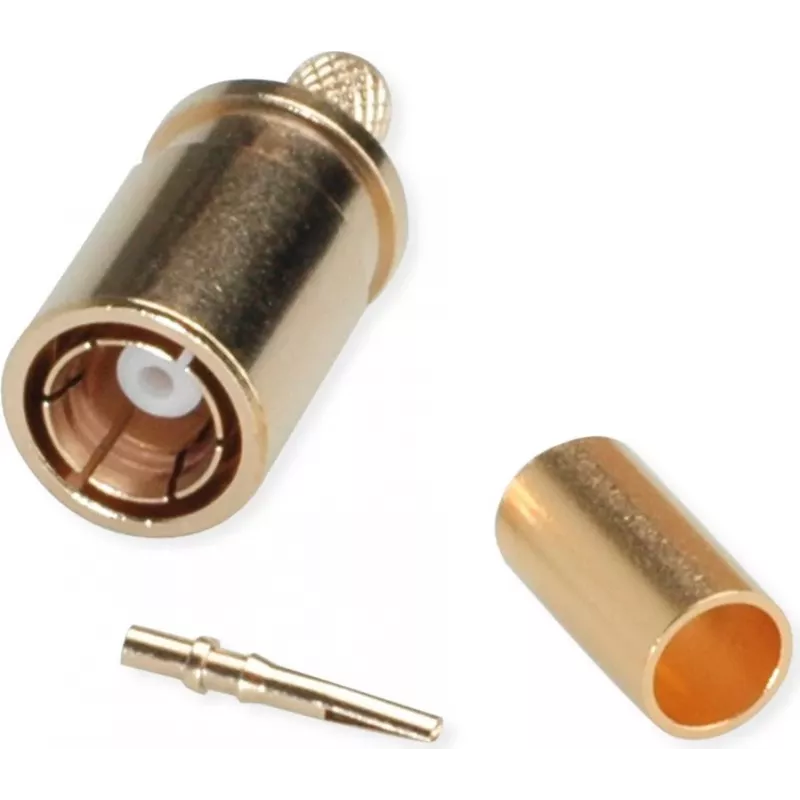

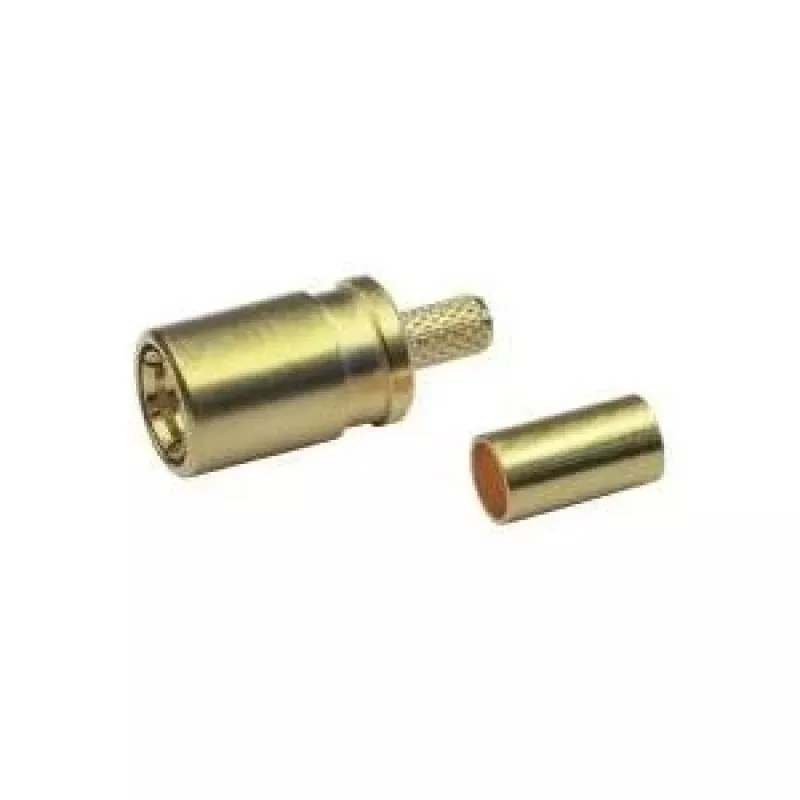

Telegärtner SMB-liitäntä suora PCB-paneeliasennusliitin 50 ohm J01161A0691

RF engineers and technicians working on SMB-based systems up to 4 GHz use this straight panel-mount jack for secure, low-loss connections. The solder-terminated center and outer contacts suit semi-rigid or flexible cables in instrumentation, telecommunications, and industrial RF paths.

Key specifications

• Connector series: SMB
• Gender: jack (female)
• Body style: straight
• Impedance: 50 Ohm
• Mounting type: panel mount
• Termination: solder (center and outer conductor)
• Frequency range: DC to 4 GHz
• Voltage rating: 335 Veff (RMS)
• Insulation resistance: ≥ 5 GΩ
• Contact resistance: center ≤ 5 mΩ, outer ≤ 2.5 mΩ
• VSWR: ≤ 1.2 @ 3 GHz
• Durability: 500 mating cycles
• Operating temperature: -65 °C to +165 °C
• Center contact: beryllium copper, gold-plated (min. 1.27 µm)
• Outer conductor: brass, nickel-plated (min. 2 µm)
• Insulator: PTFE
• Standard: IEC 60169-10

Why choose it

Gold-plated beryllium copper center contact and PTFE insulator ensure low loss and reliable performance across a wide temperature range. The panel-mount design with solder termination provides a robust connection for fixed installations.

Ideal use cases

• RF test and measurement setups
• Telecommunications equipment
• Industrial RF systems
• Panel-mounted coaxial connections

Good to know

The connector meets IEC 60169-10 and is suitable for applications requiring stable impedance and high mating cycles.
