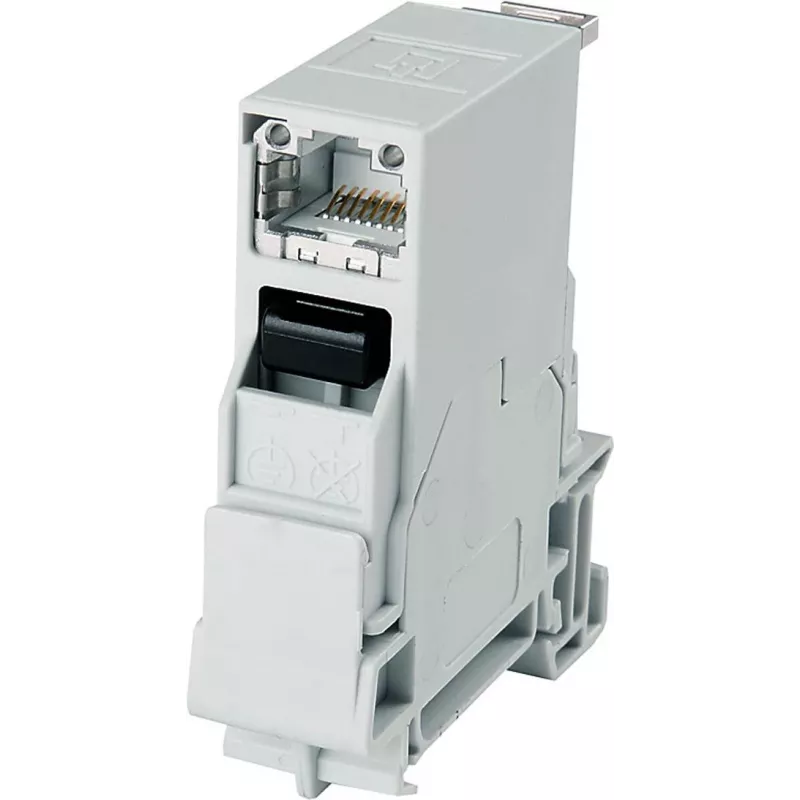

Telegärtner STX DIN-kiskoasennus RJ45 Cat.6A suojattu moduuli, vaaleanharmaa

The Telegärtner STX DIN rail mounted RJ45 module delivers shielded Cat.6A performance in a compact 1 TE (18 mm) housing, enabling 10 Gigabit Ethernet connectivity in industrial and building automation environments. Its tool-less IDC termination supports both solid and stranded conductors, ensuring fast, reliable installations on TS35 DIN rails.

Advantages

This module combines high-performance data transmission with rugged construction. The shielded design provides excellent EMI protection, while the gold-plated contacts guarantee long-term reliability. The tool-less termination reduces installation time and eliminates the need for special tools, making it ideal for field deployments.

Suitable for

• Industrial Ethernet networks requiring Cat.6A performance
• Building automation and control cabinets
• DIN rail mounted patch panels and distribution boxes
• Applications demanding 10GBASE-T over copper

Key specifications

• Connector: RJ45, shielded, Cat.6A (ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2)
• Mounting: DIN rail TS35 (EN 60715), width 1 TE (18 mm)
• Termination: Tool-less IDC, solid AWG 24/1–22/1, stranded AWG 26/7–22/7
• Performance: Up to 10 Gigabit Ethernet (10GBASE-T)
• Material: PC/ABS housing, light grey (RAL 7035), IP20
• Operating temperature: -40°C to +70°C, ≥750 mating cycles

Recommendations

For reliable high-speed connectivity in harsh industrial environments, pair this module with Telegärtner STX patch cables and DIN rail enclosures to create a complete, future-proof network infrastructure.
