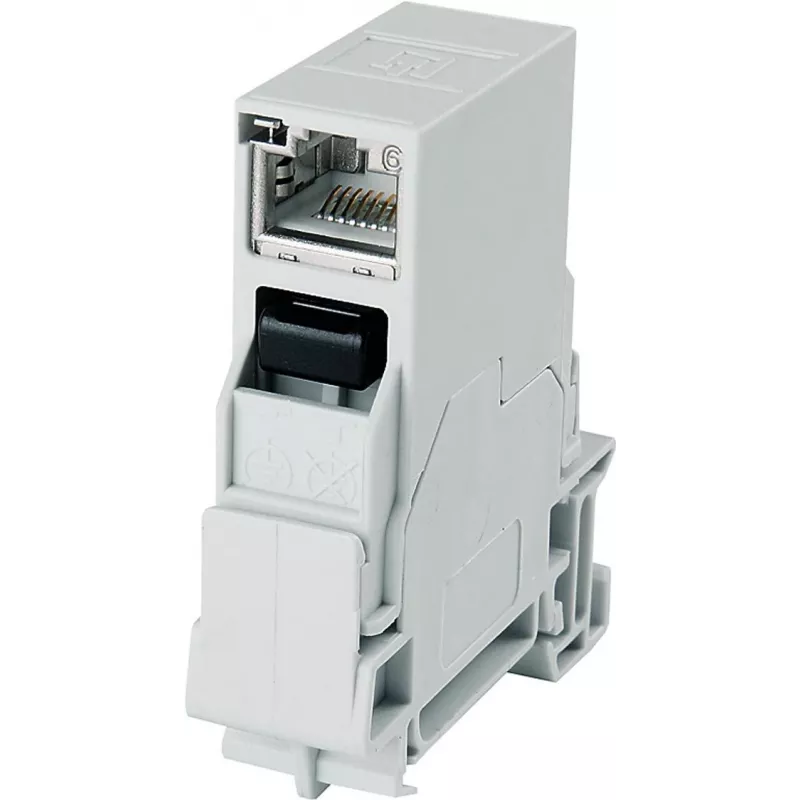

Telegärtner STX RJ45 DIN-kiskorasio Cat.6A suojattu, vaaleanharmaa

The Telegärtner STX DIN Rail Outlet is a shielded RJ45 connection module engineered for industrial Ethernet and network infrastructure. Its die-cast zinc housing and robust design ensure reliable performance in demanding environments, while the Cat.6A rating supports high-speed data transmission up to 10 Gigabit Ethernet.

Advantages

This outlet features a compact 1 TE (18 mm) width, saving valuable space on the DIN rail. The shielded design and gold-plated contacts provide excellent signal integrity and resistance to electromagnetic interference. Termination is quick and secure via IDC, accommodating both solid and stranded conductors. The light grey housing blends seamlessly into control cabinets and patch panels.

Suitable for

• Industrial automation and control systems
• Building automation and IoT gateways
• Network cabinets and patch panels
• Harsh environments requiring IP20 protection
• High-speed data links up to 10 Gbps

Key specifications

• Connector type: RJ45 female
• Performance: Category 6A (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2)
• Shielding: Shielded
• Mounting: 35 mm DIN rail
• Number of ports: 1
• Colour: Light grey
• Housing material: Die-cast zinc (module), plastic (housing)
• Contact plating: Gold over phosphor bronze
• Termination: IDC
• Wiring scheme: TIA/EIA 568A/B
• Supported wire gauge: AWG 24/1 – AWG 22/1 (solid), AWG 26/7 – AWG 22/7 (stranded)
• Operating temperature: -40°C to +70°C
• Protection class: IP20
• Standards: IEC 60603-7-51

Recommendations

For optimal performance, pair this outlet with Telegärtner STX patch cables and connectors. Ensure proper grounding of the DIN rail to maintain shielding effectiveness. This outlet is ideal for new installations or upgrades in industrial networks.
