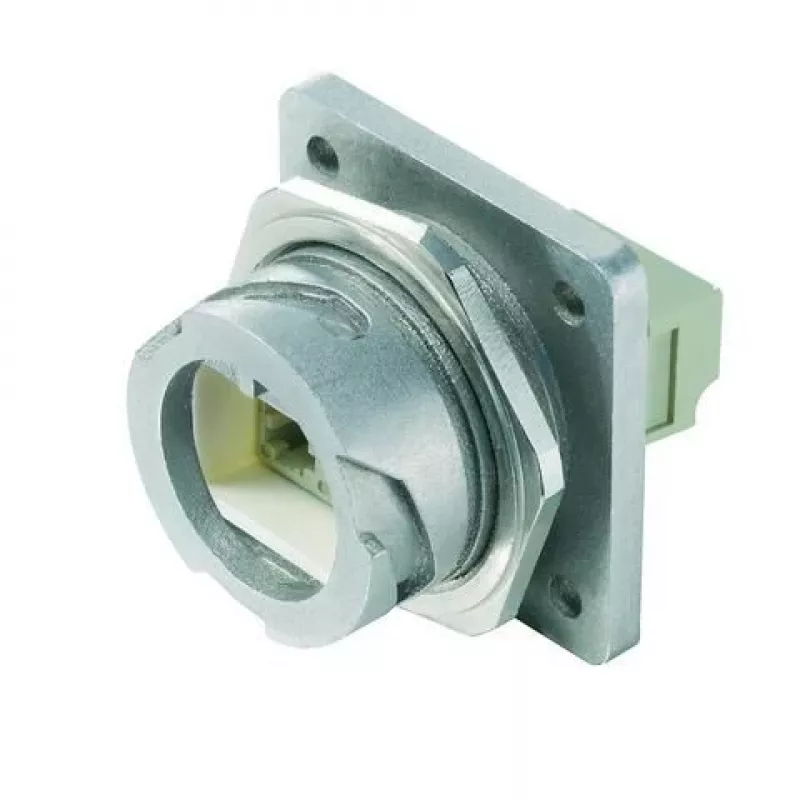

Telegärtner STX V1 LC-duplex monimuoto metallilaippasarja J88074A0002

LC-Duplex multimode fibre optic flange set with metal housing for Telegärtner STX V1 modular panels. Provides a snap-in, panel-mount connection point for two multimode fibres, ensuring low insertion loss and high mating durability in indoor industrial environments.

Advantages

Metal housing offers robust mechanical protection and durability. Zirconia ceramic ferrules ensure precise fibre alignment for stable optical performance. Snap-in design allows quick and secure installation into STX V1 modules without additional tools.

Suitable for

• Indoor fibre optic distribution in industrial settings
• STX V1 modular patch panels and enclosures
• Multimode fibre links requiring LC-Duplex connectivity

Key specifications

• Connector type: LC-Duplex
• Fiber mode: Multimode
• Housing material: Metal
• Ferrule material: Zirconia ceramic
• Insertion loss: < 0.2 dB
• Return loss: > 20 dB
• Mating durability: > 500 cycles
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: IEC 61754-20, TIA/EIA-604-10

Recommendations

For reliable multimode fibre connections in Telegärtner STX V1 systems, this metal flange set offers low loss and long-term stability.
