Telegärtner STX V1 RJ45 pistokesarja muoviversio 1 suora 8P8C musta J80026A0009 1 kpl

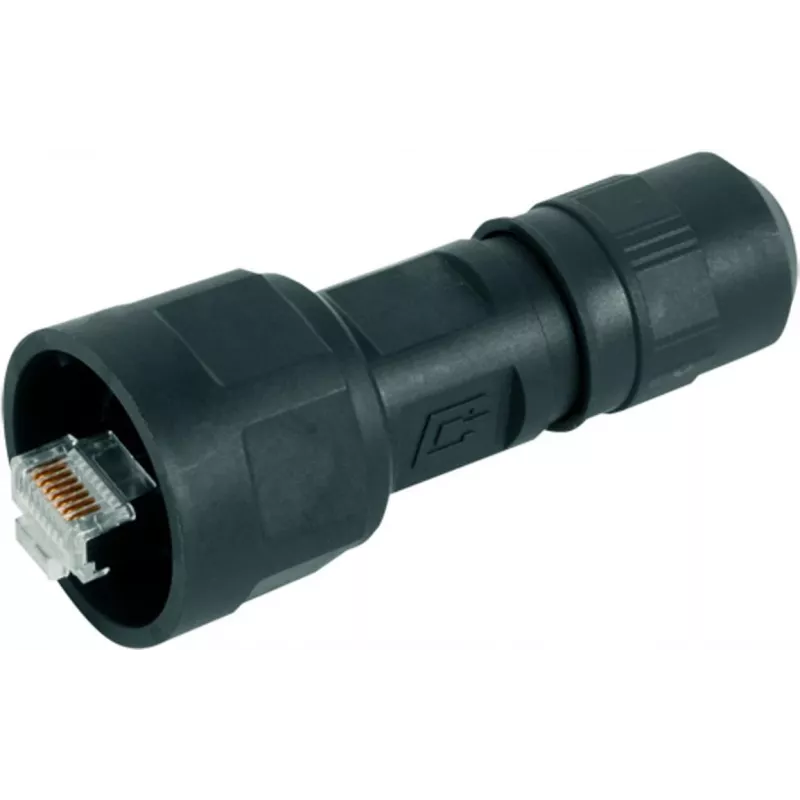

Field-terminating RJ45 plugs often require specialized tools and precise wire preparation, leading to inconsistent connections and wasted time. The Telegärtner STX V1 RJ45 plug set solves this by offering a tool-less, reliable termination for Cat.6 unshielded cabling. This variant 1 set includes a straight, 8P8C plastic plug in black, engineered for solid and stranded wires from AWG 27/7 to AWG 22/1, with cable diameters between 4.5 and 8.0 mm. Gold-plated contacts and over 750 mating cycles ensure long-term performance in Ethernet networks up to Gigabit speeds, with PoE/PoE+ support.

Who is it for

Network installers, IT technicians, and maintenance staff who need a fast, dependable field-termination solution for Cat.6 UTP installations in commercial or industrial environments. Ideal for patch cords, workstation outlets, and IP camera or access point deployments where PoE is required.

Main features

• Tool-less IDC termination – no crimp tool needed, reducing installation time and errors.
• Supports solid and stranded conductors from AWG 27/7 to AWG 22/1.
• Accepts cable outer diameters from 4.5 mm to 8.0 mm for versatile use.
• Gold-plated contacts with >750 mating cycles for reliable, long-lasting connections.
• PoE and PoE+ compliant (IEEE 802.3af/at) for powering devices over Ethernet.
• Meets ISO/IEC 11801, EN 50173, and TIA/EIA-568 standards for Cat.6 performance.

Specifications

• Brand: Telegärtner
• Model: J80026A0009
• MPN: J80026A0009
• EAN: 4018359328863
• Connector type: RJ45 plug, straight orientation
• Number of contacts: 8P8C
• Category rating: Cat.6
• Shielding: Unshielded (UTP)
• Termination: IDC, tool-less
• Housing material: Plastic
• Colour: Black
• Wire compatibility: Solid and stranded
• Wire gauge: AWG 27/7 to AWG 22/1
• Cable diameter: 4.5 - 8.0 mm
• Transmission speed: Up to 1 Gigabit Ethernet (1000BASE-T)
• PoE: PoE, PoE+ (IEEE 802.3af/at)
• Contact plating: Gold
• Mating cycles: >750
• Operating temperature: -40°C to +70°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568
• Series: STX V1
• Quantity per pack: 1 piece

Tips

For best results, strip the cable jacket to the recommended length and follow the colour code printed on the plug. Ensure conductors are fully inserted before closing the termination cap. Use with Cat.6 UTP cable for optimal performance. Store unused plugs in a dry, dust-free environment to maintain contact integrity.
