Teline Hikvision DS-1273ZJ-135B

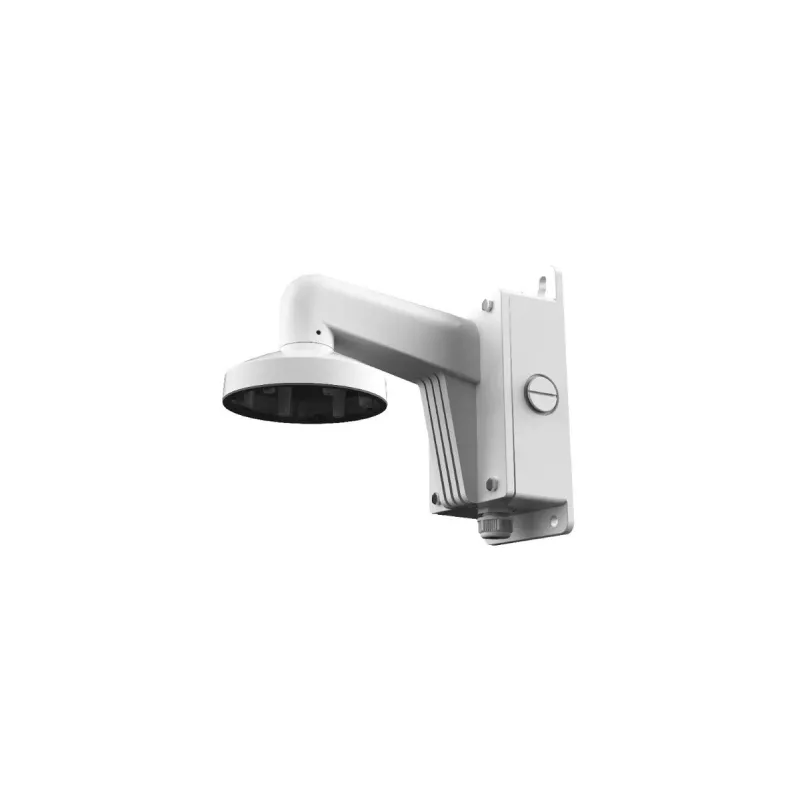

The Hikvision DS-1273ZJ-135B is a white aluminum-alloy mount for security cameras, featuring a sprayed surface finish and dimensions adapted for discreet and stable installation. With a diameter of 13.6 cm, depth of 243 mm and height of 290 mm, this mount is compatible with Hikvision cameras and provides a solid support solution for surveillance setups.

Advantages

Constructed from aluminum alloy with a surface spray treatment, the DS-1273ZJ-135B offers corrosion resistance and a uniform appearance. The integrated cable hole simplifies cable routing and reduces visible wiring, while the removable cap design facilitates straightforward installation and access for maintenance.

Suitable for

• Wall-mounted CCTV dome and bullet cameras compatible with Hikvision mounts
• Indoor and covered outdoor surveillance installations
• Installations requiring concealed cable routing

Key specifications

• Material: Aluminum alloy with surface spray treatment
• Colour: White
• Diameter: 13.6 cm
• Depth: 243 mm
• Height: 290 mm
• Brand compatibility: Hikvision
• MPN: DS-1273ZJ-135B
• EAN: 6954273608347

How to use

Mount the DS-1273ZJ-135B on a suitable wall surface using appropriate fixings for the wall material. Route the camera power and data cables through the cable hole to conceal wiring, attach the camera to the mount and secure it with the supplied screws. Use the cap to cover the cable entry point; remove it as needed to access connections during installation or maintenance.

Recommendations

For optimal performance, use the mount with Hikvision cameras specified as compatible and ensure the mounting surface is strong enough to bear the combined weight of the camera and mount. Apply silicone or appropriate sealant around exterior openings if used in exposed outdoor locations to prevent moisture ingress.
