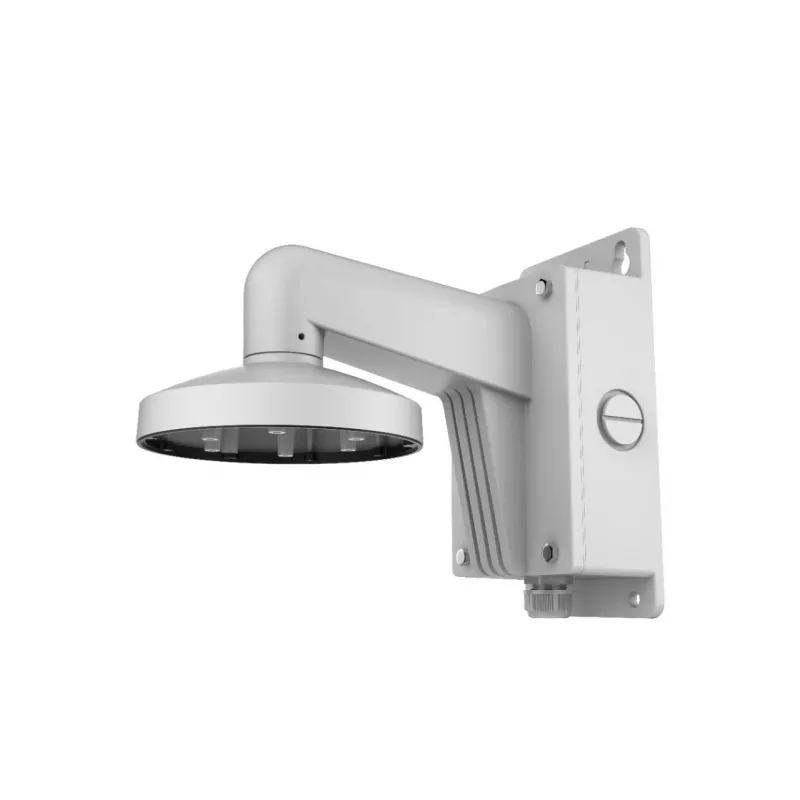

Teline Hikvision DS-1473ZJ-155B

The Hikvision DS-1473ZJ-155B is a universal white camera mount engineered for stable and discreet installation of CCTV cameras. Designed for indoor and outdoor mounting scenarios where a compact, low-profile mounting solution is required, the mount supports cameras up to 3 kg and provides a neat finish that complements most building facades and interiors. The product is supplied as a single unit and combines practical dimensions with a durable exterior finish to enable reliable camera placement.

Advantages

The mount’s 15.5 cm diameter and 300 mm depth deliver sufficient spacing from the mounting surface to allow cable routing and correct camera orientation without excess protrusion. Its 243 mm height and balanced form factor make it suitable for a range of dome and bullet cameras while keeping the overall installation visually unobtrusive. Finished in white, the surface helps cameras blend with light-coloured walls and ceilings, reducing visual impact while providing a stable base that supports up to 3 kg of camera weight.

Suitable for

• Mounting dome and bullet security cameras up to 3 kg
• Indoor installations on ceilings and walls
• Outdoor installations on façades where a compact mount is required
• Situations requiring concealed cable routing behind the mount

Key specifications

• Maximum supported camera weight: 3 kg
• Diameter: 155 mm
• Depth from mounting surface: 300 mm
• Height of mount: 243 mm
• Finish colour: white
• Pack contents: single mount unit

How to use

Position the mount at the required mounting point and mark fixings according to the mount’s base. Route camera cables through the mount body before securing it to the wall or ceiling using appropriate anchors for the substrate. Attach the camera to the mount and adjust orientation to achieve the desired field of view. Ensure all fasteners are tightened and that cables are secured to prevent strain on connectors. Test camera operation and angle, then finalize weatherproofing where applicable.

Recommendations

For reliable performance, use anchors and screws appropriate for the mounting surface and observe the 3 kg maximum camera weight. When installing outdoors, apply compatible sealing around the mount base to prevent water ingress. Periodically inspect fastenings and cable routing to maintain secure installation and camera alignment.
