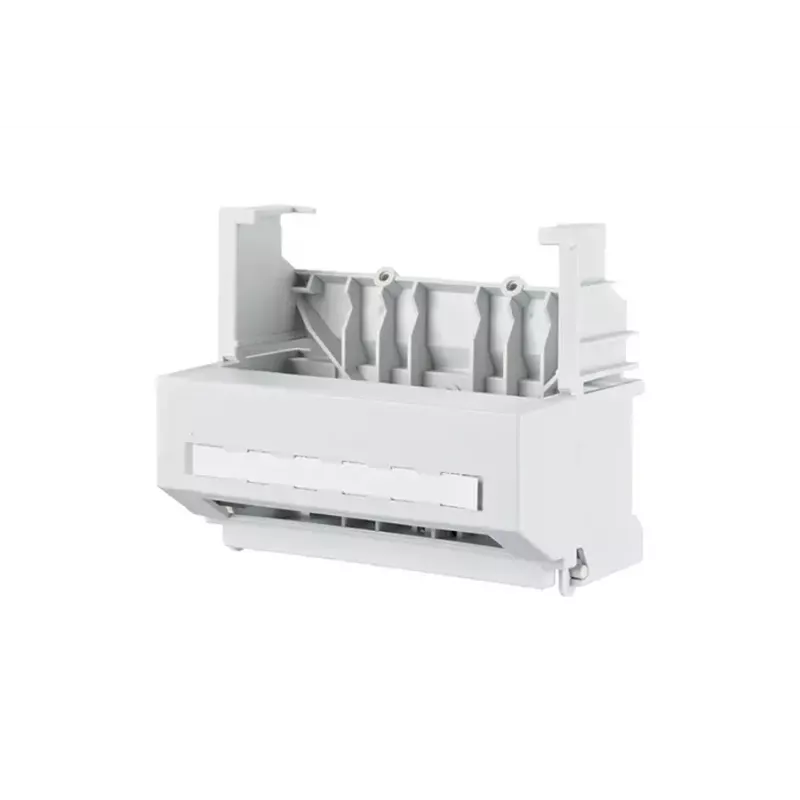

Telinevaruste METZ CONNECT 1308990110-E

The METZ CONNECT 1308990110-E is a top hat rail (TH35) adapter designed to mount six-fold 1RU distributor modules in different distributor systems that use a top hat rail. It is intended to provide a compact, standard-compliant mounting solution for compatible 6-port modules such as C6Amodul 6 port, E-DAT C6A 6 port, E-DAT module 6 port, E-DAT C6 6 port, and OpDAT 6M. The adapter is suitable for use in 19" racks and supports tidy organization of distributor modules while keeping them accessible for maintenance.

Advantages

The adapter supports standard TH35 top hat rail mounting and is compatible with multiple 6-fold 1RU modules, enabling flexible use across different distributor systems. Its compact dimensions (125 mm width, 69 mm depth, 106.6 mm height) allow installation in standard rack spaces without occupying excessive depth. The white finish provides a neutral appearance suitable for technical and office environments.

Suitable for

• Mounting 6-port distributor modules on TH35 top hat rails
• Organizing 1RU distributor modules in 19" racks
• Retrofitting or standardizing different distributor systems

Key specifications

• Brand: BTR
• Manufacturer part number (MPN): 1308990110-E
• EAN: 4250184105336
• Mount type: TH35 top hat rail adapter
• Compatible modules: C6Amodul 6 port; E-DAT C6A 6 port; E-DAT module 6 port; E-DAT C6 6 port; OpDAT 6M
• Form factor: 1U rack accessory
• Dimensions (W×D×H): 125 × 69 × 106.6 mm
• Color: white

How to use

Install the adapter onto a TH35 top hat rail in the desired 1U rack position, ensuring it is securely clipped or fastened according to the rack rail system. Insert the compatible six-fold distributor module into the adapter and secure the module as required by the module design. Verify alignment and clearances before routing cables to ensure reliable connections and access for maintenance.

Recommendations

Use with compatible 6-port modules listed by the manufacturer; confirm module compatibility and mounting orientation before installation. For safe operation, perform installation with the rack powered down or follow site-specific safety procedures when working on live equipment.
