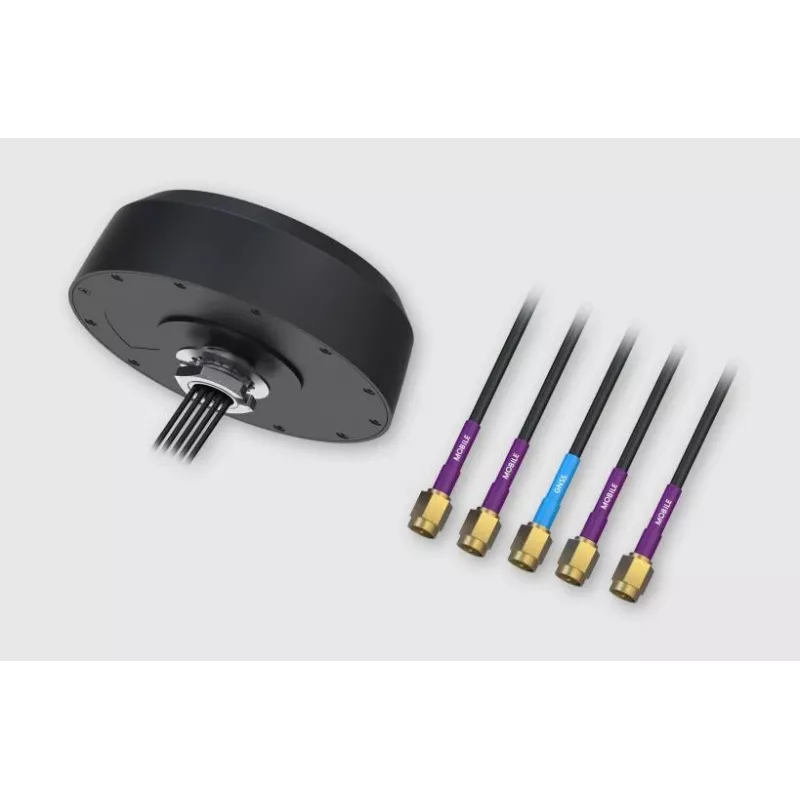

TELTONIKA 5G/GNSS Combo MIMO -kattoantenni SMA 3 m RG174

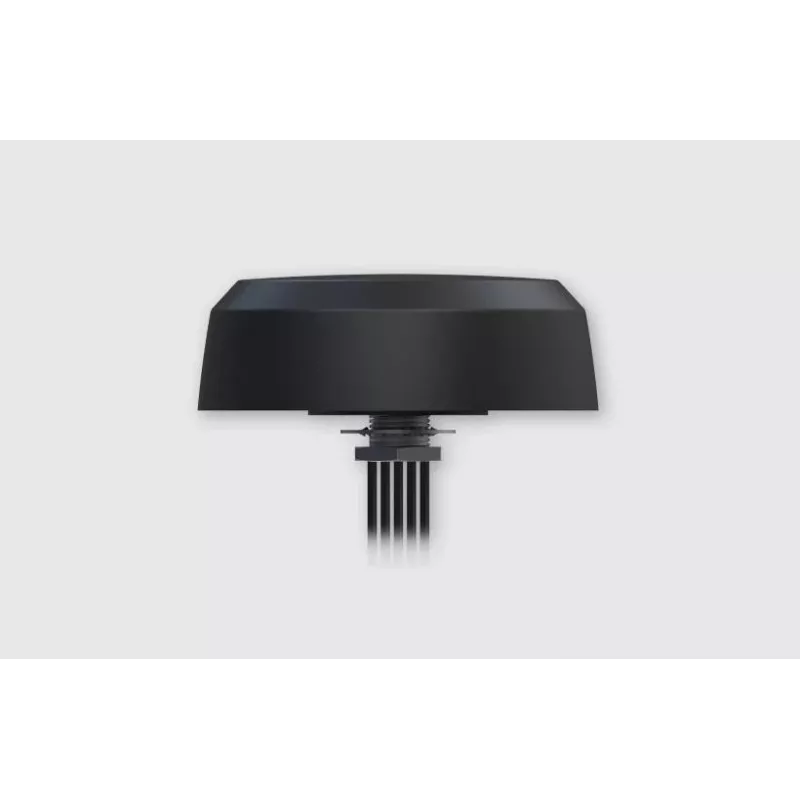

The TELTONIKA 5G/GNSS Combo MIMO Roof Antenna is a high-performance combination antenna designed for professional mobile and GNSS applications. It integrates 5G cellular and GNSS reception in a single compact roof-mount housing, providing reliable connectivity for routers, gateways, and tracking devices. With 2x2 MIMO support for cellular and active GNSS LNA, this antenna ensures optimal signal strength and positioning accuracy even in challenging environments.

Advantages

Combines 5G cellular and GNSS antennas in one unit, reducing installation complexity and space requirements. The IP67-rated UV-resistant ABS housing withstands harsh outdoor conditions, while the 3-meter RG174 cables with SMA connectors offer flexible routing. Active GNSS LNA with 28 dBi gain improves satellite acquisition in weak signal areas.

Suitable for

• Industrial routers and gateways requiring 5G/LTE and GNSS connectivity
• Fleet management and vehicle tracking systems
• Remote monitoring and IoT applications
• Marine and outdoor installations

Key specifications

• Antenna Type: Combination 5G/GNSS Roof Mount
• Cellular Frequency Range: 617-6000 MHz
• GNSS Frequency Range: 1561-1602 MHz (L1 Bands)
• Cellular Gain: Up to 6 dBi
• GNSS LNA Gain: 28 ± 2 dBi
• Cellular VSWR: < 3:1
• GNSS VSWR: < 2:1
• Impedance: 50 Ohm
• Cellular Polarization: Linear
• GNSS Polarization: RHCP
• MIMO Support: 2x2 MIMO for Cellular

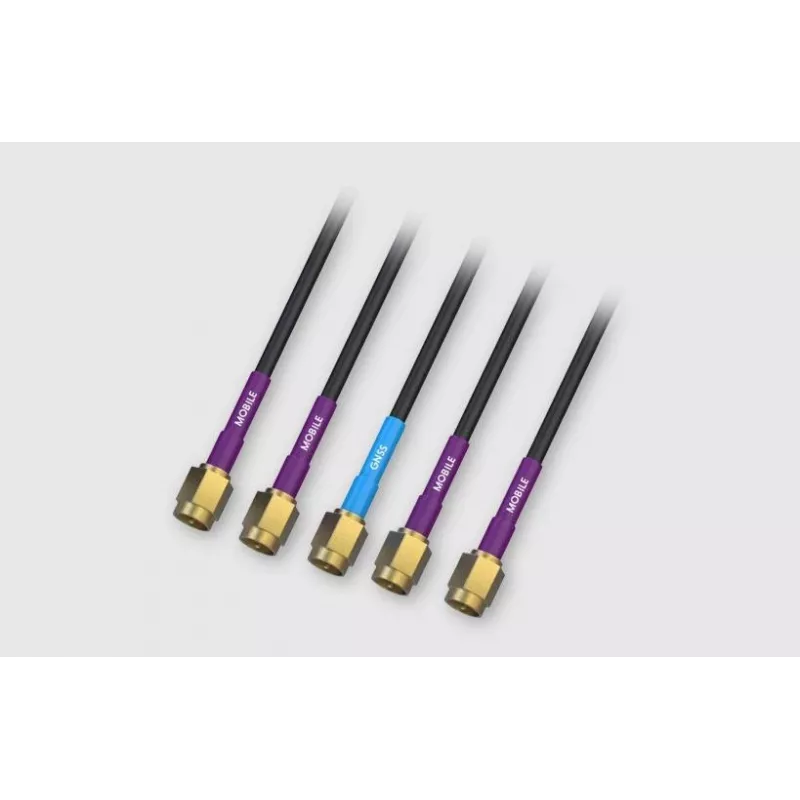

• Connectors: 2 x SMA Male (Cellular), 1 x SMA Male (GNSS)
• Cable Type: RG174
• Cable Length: 3 meters per cable
• Mounting Type: Screw Mount (18mm hole)
• IP Rating: IP67
• Operating Temperature: -40°C to +85°C
• Housing Material: UV Resistant ABS
• Max Input Power (Cellular): 20 W

Recommendations

For best performance, mount the antenna on a flat metal surface with a minimum diameter of 30 cm to act as a ground plane. Ensure the mounting hole is clean and properly sealed to maintain IP67 protection. Use high-quality SMA cables and connectors to minimize signal loss.
