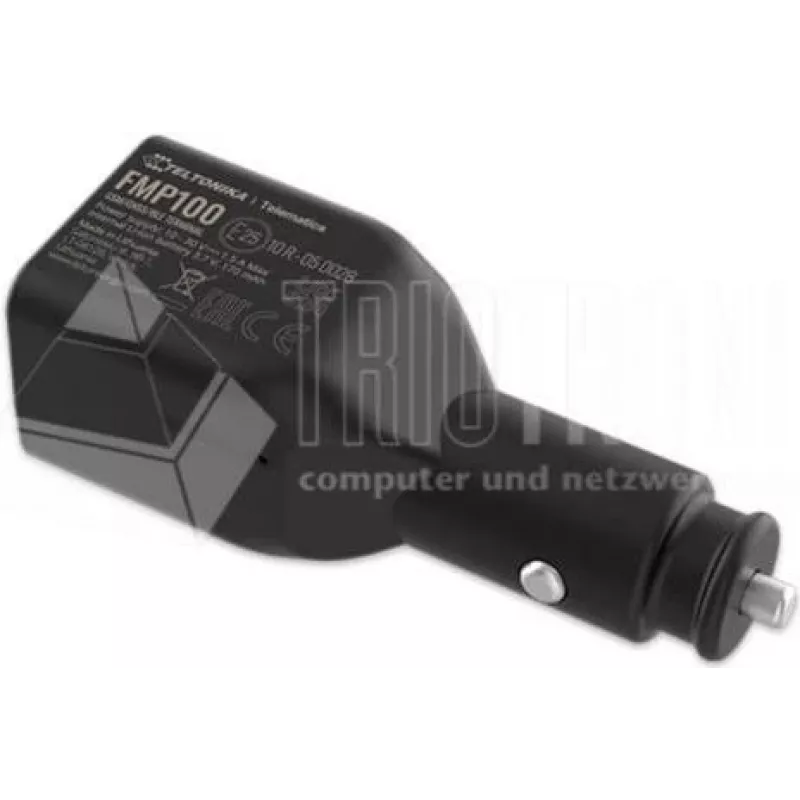

Teltonika FMP100 OBDII GPS-paikannin GNSS:llä, GSM:llä, Bluetoothilla kalustonhallintaan

The Teltonika FMP100 stands apart from typical plug-and-play trackers by combining OBDII data reading with a robust GNSS/GSM/Bluetooth stack in a compact, IP41-rated housing. It delivers not just location but real vehicle diagnostics, crash detection, and unplug alerts—making it a true fleet telematics module rather than a simple GPS dongle.

Highlights

• Plug-and-play OBDII installation—no wiring, powered directly from the vehicle port (10–30 V DC)
• Multi-constellation GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS for high-accuracy positioning
• Quad-band 2G GSM (850/900/1800/1900 MHz) for global connectivity
• Bluetooth 4.0 LE for wireless configuration and external sensor connectivity
• Reads OBDII data: speed, RPM, fuel level, DTC codes, and more
• Crash detection and unplug detection with instant alerts
• 170 mAh Li-Ion backup battery for continued tracking during power loss
• 128 MB internal flash memory stores up to 245,760 records when out of GSM coverage
• Built-in accelerometer for motion sensing and green driving analysis
• Geofencing, FOTA updates, and RGB LED status indication

In daily use

The FMP100 is engineered for fleet managers who need reliable, real-time vehicle data without complex installation. Simply plug it into the OBDII port and it begins reporting position, ignition status, and vehicle diagnostics. The internal backup battery keeps the tracker alive if the vehicle battery is disconnected or tampered with, triggering an unplug alert. With 128 MB of flash memory, it buffers location data during GSM outages and forwards it when coverage returns—no data loss. The Bluetooth interface allows secure local configuration via smartphone, while FOTA ensures the device stays up to date remotely.

Full specifications

• Brand: Teltonika
• Model: FMP100
• MPN: FMP100
• EAN: 4250605565701
• Tracker type: OBD Tracker, Fleet / Telematics Module
• Connectivity: GNSS, GSM (2G), Bluetooth 4.0 LE
• GNSS support: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• GSM bands: 850/900/1800/1900 MHz
• Power connector: OBDII
• Input voltage: 10–30 V DC
• Backup battery: 170 mAh Li-Ion
• Internal memory: 128 MB Flash (245,760 records)
• Internal sensors: Accelerometer
• Operating temperature: -30 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Ingress protection: IP41
• SIM card: Micro-SIM
• Antennas: Internal GNSS, GSM, Bluetooth
• LED indicators: RGB status LED
• Configuration: FOTA, USB, Bluetooth
• Features: OBDII data reading, crash detection, unplug detection, geofencing, green driving
• Product colour: Black
• Dimensions: 50.7 x 49.6 x 25 mm (W x D x H)
• Weight: 50 g

Final note

The Teltonika FMP100 is a professional-grade OBDII tracker that goes beyond simple location tracking. With vehicle diagnostics, crash detection, and robust connectivity, it is an essential tool for modern fleet management.
