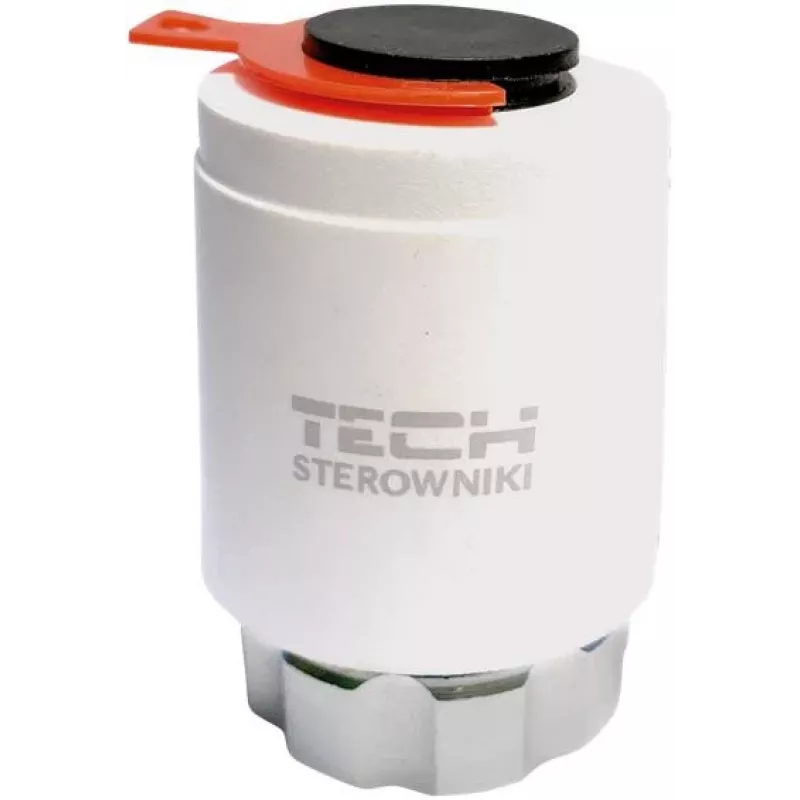

Termosähköinen toimilaite STT-230/2 T M30x1.5 Tech Sterowniki

The Tech Sterowniki STT-230/2 T M30x1.5 is a high-quality thermoelectric actuator designed for precise control of underfloor heating manifolds, radiator valves, and zone valves. Operating at 230V AC with a normally closed (NC) function, it ensures reliable shut-off when de-energized. The actuator features a compact, self-extinguishing plastic housing with IP54 protection, making it suitable for demanding environments.

Advantages

This actuator offers silent operation, low power consumption (2W), and a quick response time of approximately 120 seconds. The visual position indicator (red) provides clear status feedback. Its M30x1.5 mounting thread ensures compatibility with standard valve bodies.

Suitable for

• Underfloor heating manifolds
• Radiator valves
• Zone valves in HVAC systems

Key specifications

• Power Supply: 230V AC, 50Hz
• Power Consumption: 2W
• Operating Mode: Normally Closed (NC)
• Mounting Thread: M30x1.5
• Stroke: 3.5 mm
• Closing/Opening Time: ~120 seconds
• Protection Class: IP54
• Cable Length: 0.9 m
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -25°C to 60°C
• Actuating Force: 100 N
• Visual Position Indicator: Yes (Red)
• Housing Material: Self-extinguishing plastic (PC/ABS)
• Control Type: On/Off (2-point)

Recommendations

For optimal performance, ensure the actuator is mounted correctly on a compatible valve with M30x1.5 thread. Use with a suitable thermostat or controller for automatic temperature regulation.
