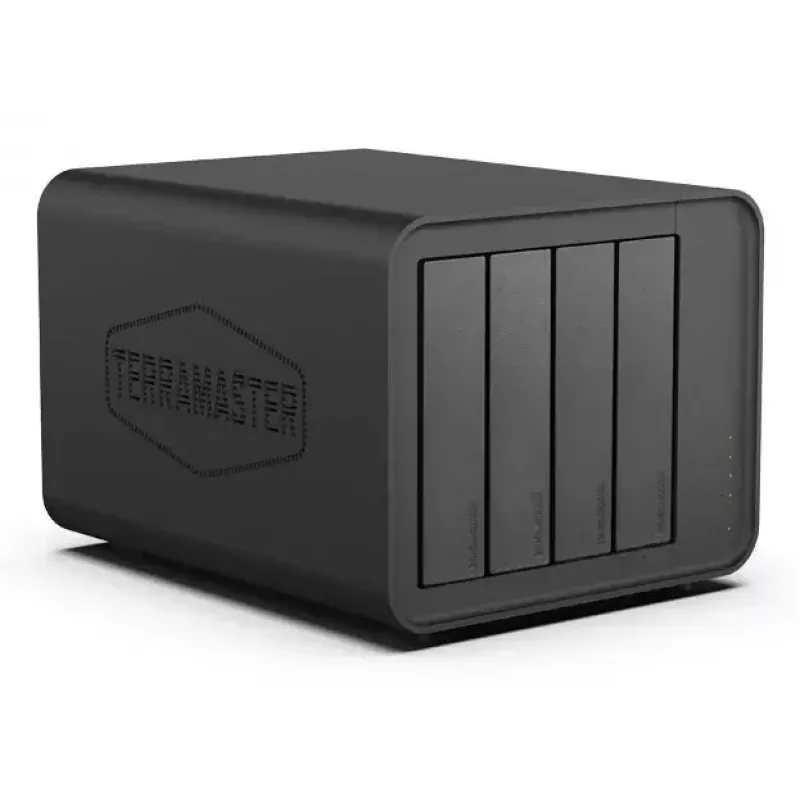

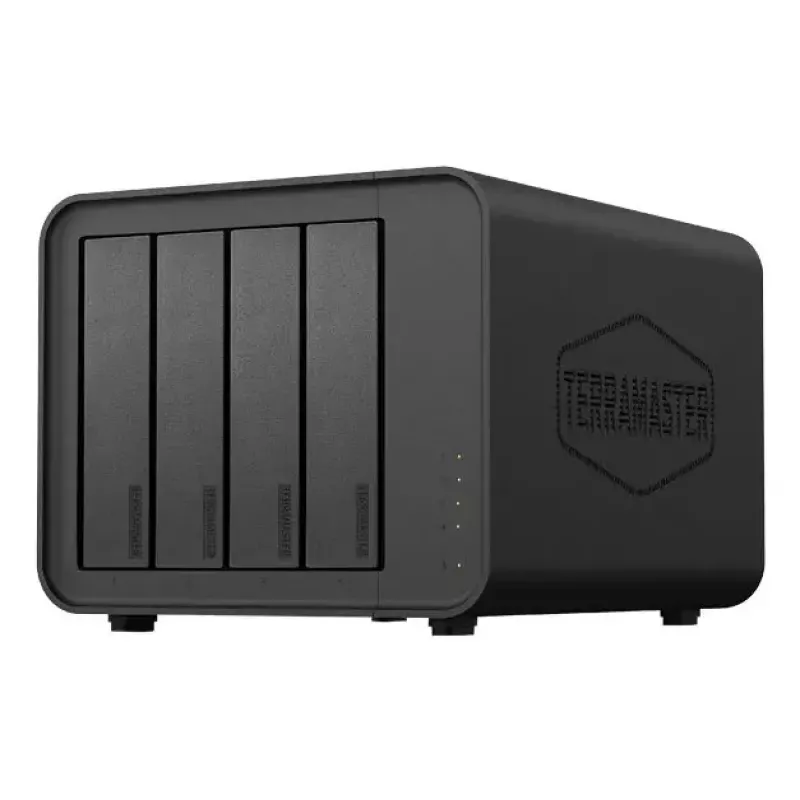

TerraMaster D8 Hybrid 8-paikkainen DAS-levykotelo, USB 3.2 Gen 2, ilman levyjä

The TerraMaster D8 Hybrid is a desktop DAS enclosure with 8 bays, supporting both SATA HDDs and M.2 NVMe SSDs. It connects via USB 3.2 Gen 2 Type-C with a bandwidth of up to 10 Gb/s and is compatible with Windows, macOS, and Linux.

Key features

• 8 bays: 4 SATA drives and 4 M.2 NVMe drives
• Maximum raw capacity up to 120 TB
• USB 3.2 Gen 2 Type-C interface with up to 10 Gb/s bandwidth
• Hardware RAID support: SINGLE DISK, JBOD, RAID 0, RAID 1
• Automatic RAID rebuild
• Read speeds from a single M.2 NVMe drive up to 980 MB/s
• Compatible with USB 3.0, USB 3.1, USB 3.2, USB4, Thunderbolt 3, and Thunderbolt 4
• File system support: NTFS, APFS, EXT4, FAT32, exFAT
• No additional drivers required
• Low noise level of approximately 21 dB(A)
• Intelligently controlled 120 mm fan
• Disk sleep function

Specifications

• Brand: TerraMaster
• Model: D8 Hybrid
• MPN: D8 HYBRID
• Device class: Home & Home Office
• Enclosure type: Desktop
• Product colour: Black
• Number of supported storage drives: 4
• Supported storage drives: HDD & SSD
• Supported storage drive interfaces: PCI Express, SATA
• Supported storage drive sizes: 2.5, 3.5, M.2
• RAID levels: 0, 1, JBOD
• Data transfer rate: 10 Gbit/s
• USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 1
• Number of fans: 1
• Fan diameter: 12 cm
• Noise level: 21 dB
• Power supply unit capacity: 90 W
• Power consumption (typical): 40.8 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• DC output voltage: 12 V
• Supported Windows operating systems: Yes
• Supported Mac operating systems: MacOS
• Supported Linux operating systems: Yes
• Width: 179 mm
• Depth: 154 mm
• Height: 222 mm
• Weight: 1.9 kg
• Operating temperature: 0 - 40 °C
• Operating relative humidity: 5 - 95%
• Storage temperature range: -20 - 60 °C
• Certification: CE, FCC, CCC, KC
• Compliance certificates: RoHS
