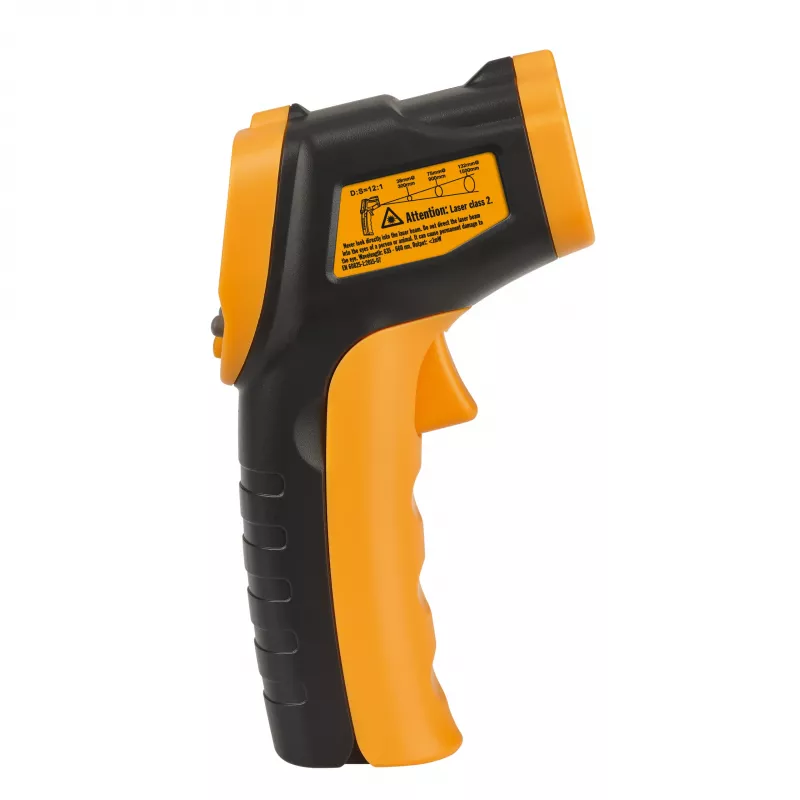

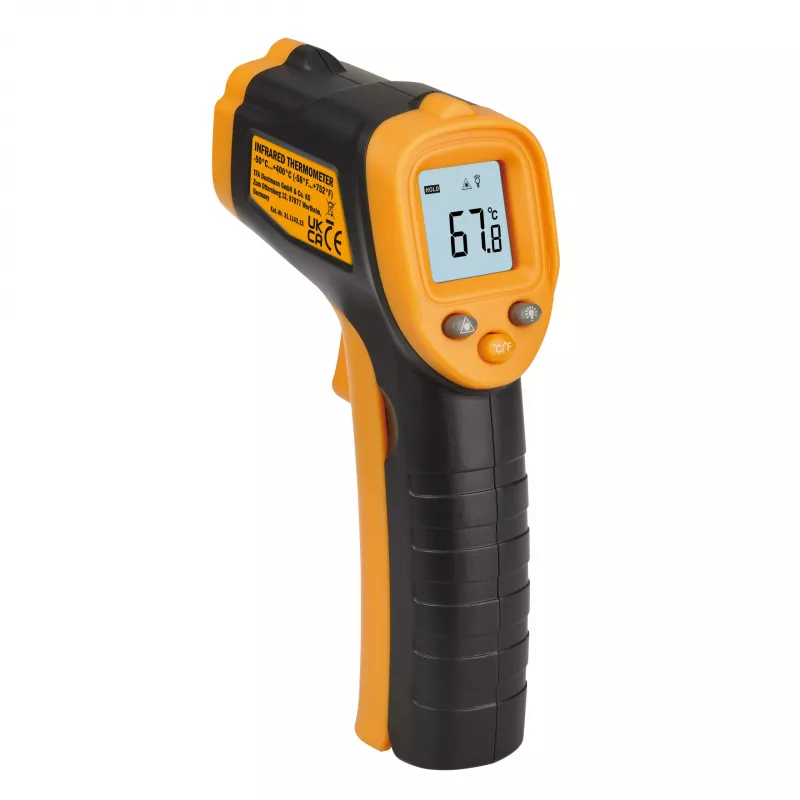

TFA Dostmann RAY LIGHT infrapunalämpömittari 12:1 optiikka -50...+400 °C kosketukseton IR-mittaus (31.1143.13)

The RAY LIGHT stands out with its 12:1 optical resolution, letting you measure smaller targets from a safer distance than typical 8:1 thermometers. Its adjustable emissivity and fast response make it suitable for HVAC, automotive, and industrial checks.

Highlights

• Wide temperature range from -50 to 400°C (-58 to 752°F)
• 12:1 distance-to-spot ratio for precise non-contact measurement
• Adjustable emissivity (0.10–1.00) for different surfaces
• Backlit LCD with data hold and min/max/avg/diff functions
• High/low temperature alarm and single laser pointer

In daily use

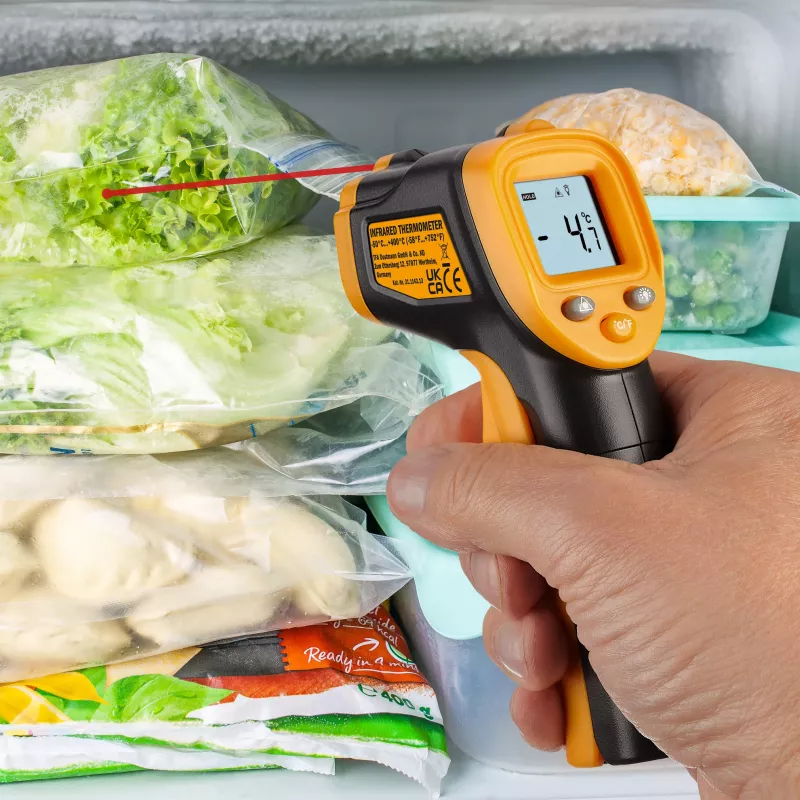

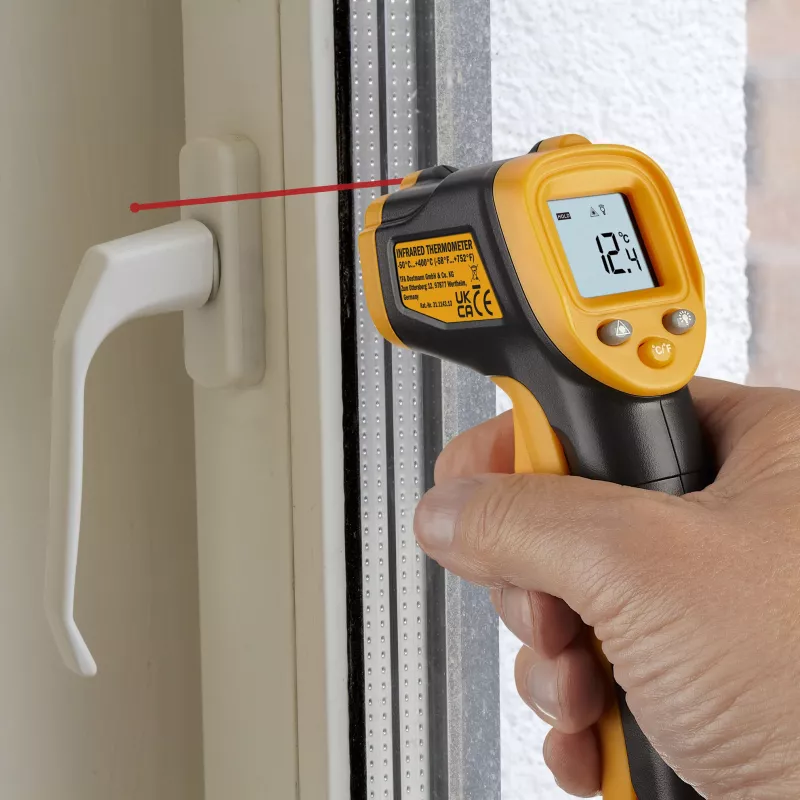

Point, pull the trigger, and read the temperature in under half a second. The backlit display remains readable in dark corners, and the auto power-off saves battery life. Powered by two AAA batteries, it is lightweight and comfortable for one-handed operation.

Full specifications

• Measurement principle: Infrared (IR)
• Temperature range: -50 to 400°C (-58 to 752°F)
• Accuracy: ±1.5°C or ±1.5% (whichever greater) for 0–400°C; ±3°C for -50–0°C
• Distance-to-spot ratio: 12:1
• Emissivity: Adjustable 0.10–1.00
• Response time: < 0.5 seconds
• Spectral response: 8–14 µm
• Display: Backlit LCD
• Functions: Data hold, min/max/avg/diff, high/low alarm
• Laser pointer: Single laser
• Power supply: 2 x AAA batteries
• Operating temperature: 0 to 50°C (32 to 122°F)
• Storage temperature: -20 to 60°C (-4 to 140°F)
• Housing material: ABS plastic

Final note

For reliable non-contact temperature readings in demanding environments, the RAY LIGHT combines practical features with a robust, ergonomic design.
