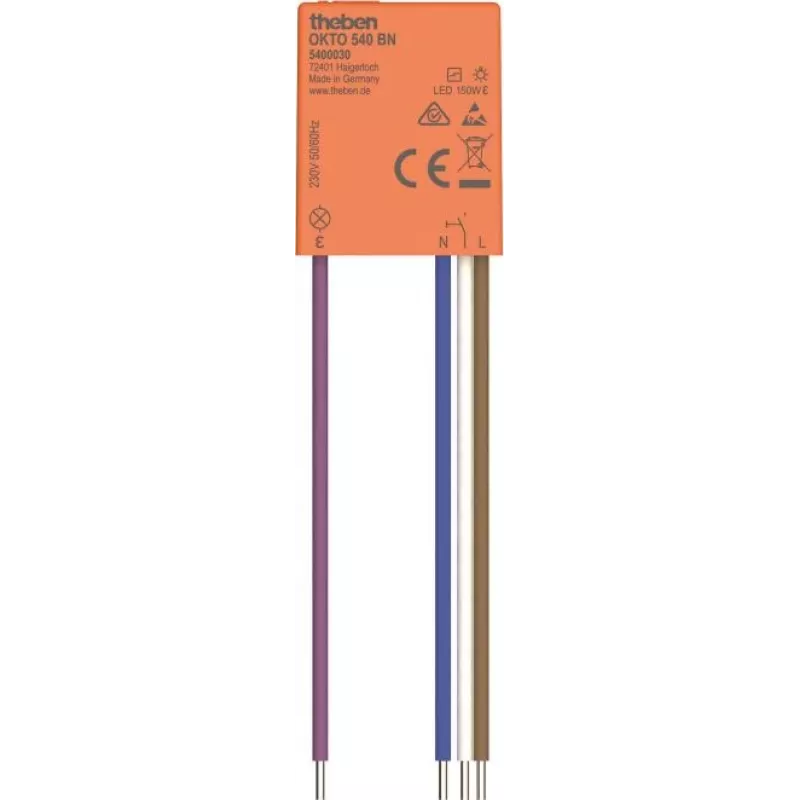

Theben OKTO 540 BN elektroninen mini-impulssikytkin 5400030

Managing lighting from multiple locations can be a challenge in residential and commercial installations. The Theben OKTO 540 BN electronic mini impulse switch solves this by allowing you to control a single lighting circuit from any number of push buttons, using a simple pulse signal. It replaces traditional latching relays with a compact, silent electronic solution that fits into standard flush-mounted boxes.

Who is it for

This device is ideal for electricians and installers working on modern lighting control systems in homes, offices, and public buildings. It suits projects where space is limited, energy efficiency is required, and reliable switching of various lamp types is essential.

Main features

• Electronic impulse switch with 1 normally open (NO) contact, 16 A resistive load capacity.
• Wide control voltage range: 8–230 V AC/DC, compatible with illuminated push buttons up to 150 mA glow lamp load.
• High switching capacity: 2300 W for incandescent and halogen lamps, 2300 VA for fluorescent lamps, and 400 W for LED lamps (>2 W).
• Silent operation with no mechanical wear, rated for up to 600 switching operations per hour.
• Compact flush-mounted design with screw terminals, IP20 protection, and operating temperature range -25 °C to +55 °C.
• Low standby power consumption of approximately 0.3 W.

Specifications

• Operating voltage (switching circuit): 230 V AC
• Control voltage: 8–230 V AC/DC
• Contact configuration: 1 NO
• Contact material: AgSnO2
• Max. incandescent lamp load: 2300 W
• Max. halogen lamp load (230 V): 2300 W
• Max. fluorescent lamp load (uncompensated): 2300 VA
• Max. LED lamp load (>2 W): 400 W
• Mounting type: Flush-mounted / Installation box
• Connection type: Screw terminals
• Standby power consumption: ~0.3 W
• Ambient temperature range: -25 °C to +55 °C
• Protection class: IP20
• Max. switching frequency: 600 operations/hour
• Short-circuit current rating: 1500 A (with 16 A gG fuse)
• Control input: Push button
• Glow lamp load (control input): Max. 150 mA

Tips

For optimal performance, ensure that the total load does not exceed the specified maximum for the lamp type. When using LED lamps, verify that the total wattage is above 2 W and does not exceed 400 W. The device can be controlled by illuminated push buttons with a glow lamp load up to 150 mA, making it versatile for various installations.
