Theben TECTA D280i WH liiketunnistin seinäasennus 280° 24m 1010110

With a 280° detection angle and 24 m range, the Theben TECTA D280i WH covers large areas from a single wall-mounted position. This passive infrared motion detector switches lighting loads up to 2300 W and is built for outdoor and indoor use.

Overview

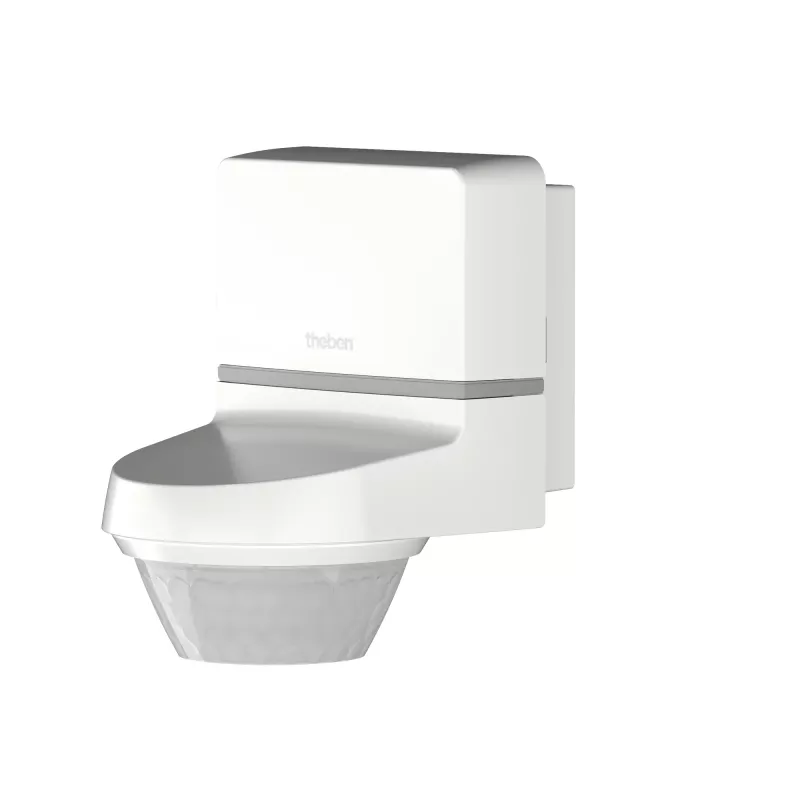

The TECTA D280i WH is a wall-mounted PIR motion detector in white. It operates on 230 V AC and is suitable for switching incandescent, halogen, and LED lighting. The detection area spans 280° with a maximum reach of 24 m when mounted at 2.5 m height. The recommended mounting height is 2.0 m to 4.0 m.

What stands out

• Wide 280° detection angle with 24 m range
• High switching capacity: 2300 W resistive, 600 W LED
• Adjustable time delay from 10 seconds to 60 minutes
• Brightness threshold adjustable from 5 to 1000 lux
• IP54 rated for dust and water spray protection

Technical details

• Sensor type: Passive Infrared (PIR)
• Mounting type: Wall mounting
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity: 2300 W resistive, 600 W LED
• Time setting: 10 s – 60 min
• Brightness setting: 5 – 1000 lux
• Protection class: II
• IP rating: IP54
• Operating temperature: -25 °C to +50 °C
• Standby power consumption: approx. 0.5 W
• Housing material: UV-stabilised polycarbonate
• Max. inrush current: 10 A (for 20 ms)
• Test function: Yes

Our verdict

The TECTA D280i WH is a robust motion detector for demanding coverage areas, offering precise adjustment and high load capacity.
