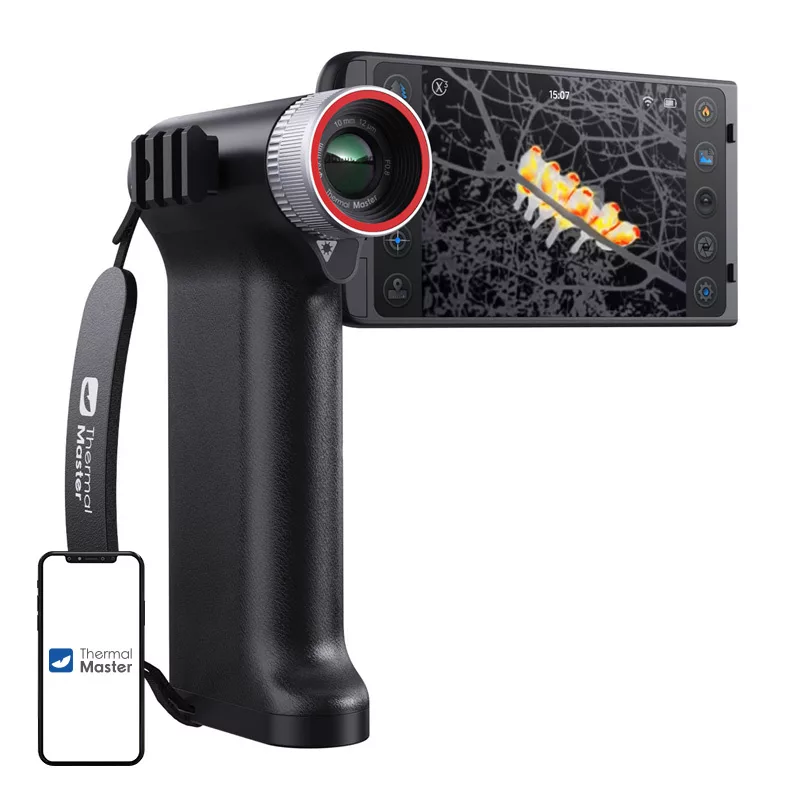

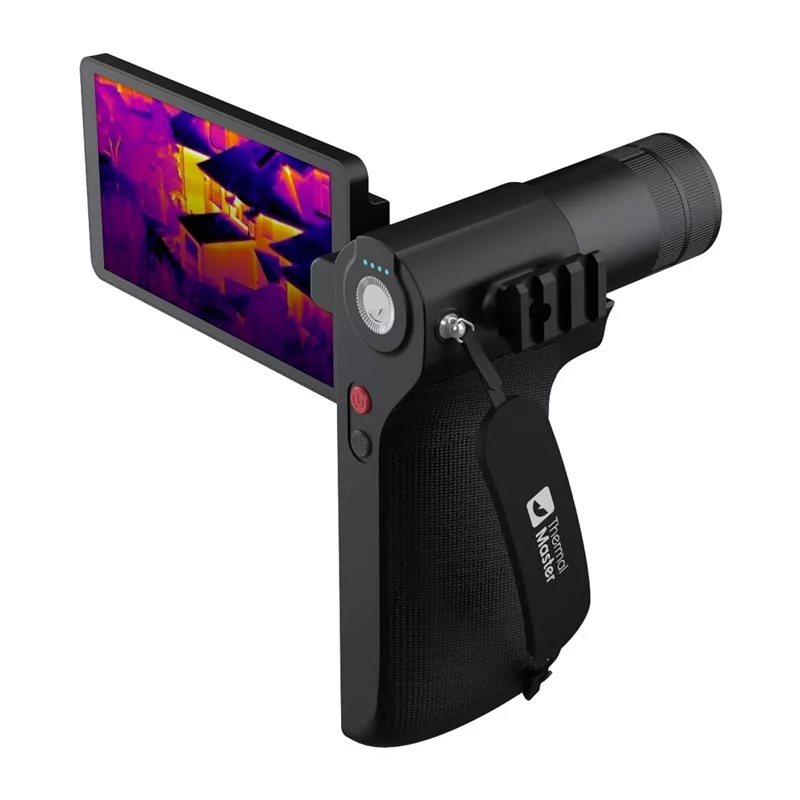

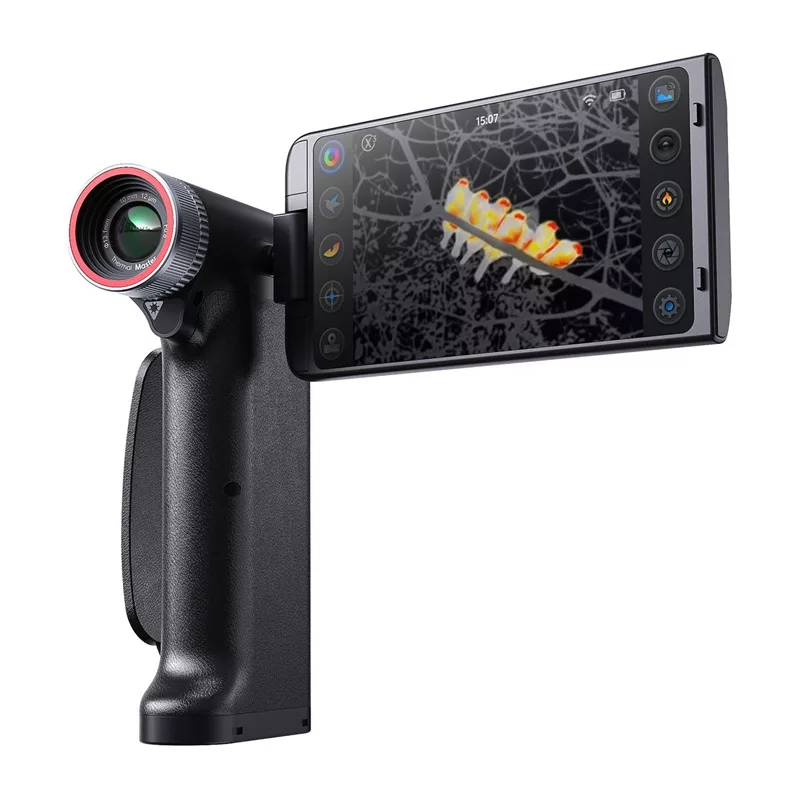

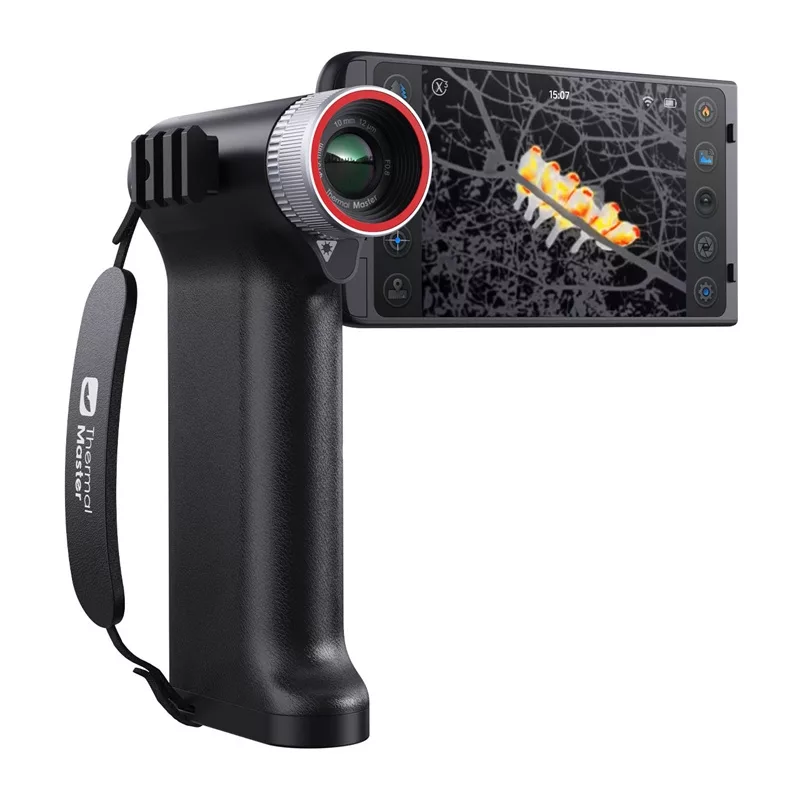

THERMAL MASTER DV2 -lämpökamera

The THERMAL MASTER DV2 is a high-performance thermal imaging camera designed for professional diagnostics, electrical inspections, and building maintenance. With a 256x192 infrared resolution and a wide temperature range of -20°C to 550°C, it delivers precise thermal data for a variety of applications. The 3.5-inch LCD touchscreen and multiple image modes (Thermal, Fusion, PIP, Visible Light) provide clear visualization, while Wi-Fi and Bluetooth connectivity enable easy data sharing.

Advantages

High-resolution thermal sensor with <50mK sensitivity ensures accurate temperature measurement. The IP54 rating and 2-meter drop resistance make it durable for field use. Long battery life of over 8 hours supports extended work sessions. Built-in 5MP digital camera and 16GB storage allow comprehensive documentation.

Suitable for

• Electrical panel and circuit board inspections
• HVAC system diagnostics
• Building envelope and insulation analysis
• Preventive maintenance in industrial settings

Key specifications

• Infrared Resolution: 256x192 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Thermal Sensitivity (NETD): <50mK (@25°C, F#1.0)
• Frame Rate: 25 Hz
• Field of View: 56° x 42°
• Display: 3.5-inch LCD Touchscreen, 640x480 pixels
• Image Modes: Thermal, Fusion, PIP, Visible Light
• Storage: 16GB eMMC
• Connectivity: USB Type-C, Wi-Fi, Bluetooth
• Battery Life: >8 hours continuous operation
• IP Rating: IP54
• Drop Resistance: 2 meters
• Digital Camera: 5 MP

Recommendations

For optimal results, use the DV2 in environments where temperature differences are critical. The fixed focus lens is ideal for close to medium range inspections. Pair with the THERMAL MASTER app for advanced analysis and reporting.
