Toughpower PF1 1050W - TT Premium Edition

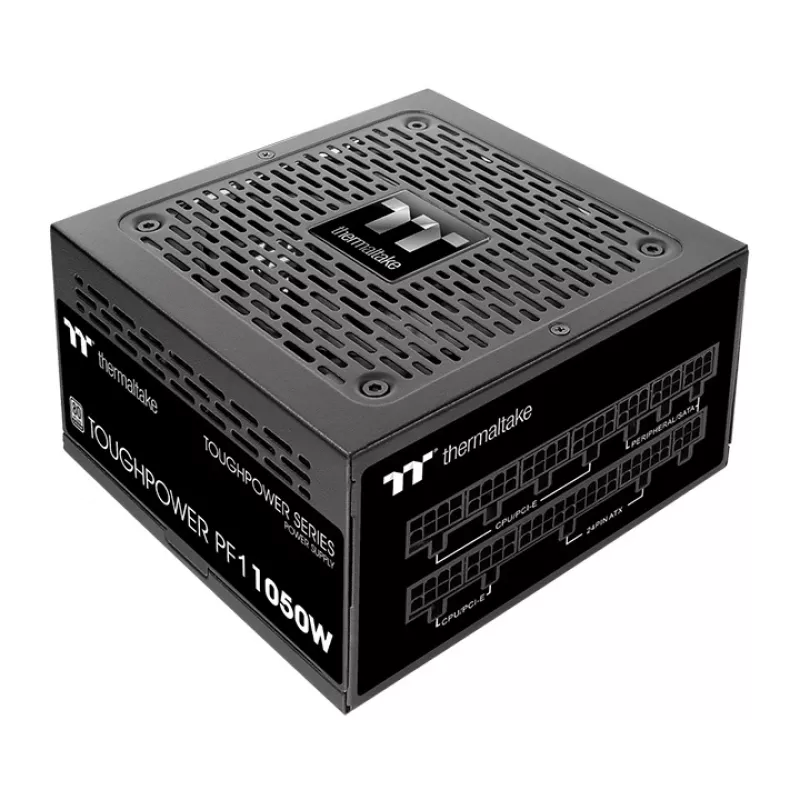

Coming in a higher wattage, the Toughpower PF1 1050W/1200W Platinum - TT Premium Edition delivers 80 PLUS Platinum efficiency and levels up in cooling performance by featuring a 120mm High Static Pressure Fan which can perform at a maximum operating speed of up to 2500 RPM. The second-generation hydraulic bearing, exceptional fan blades, and anti-vibration mounting system of the fan also helps to offer superb cooling performance. With a small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 provides ample space for cable management.

Compact Design with 140mm Depth
The Toughower PF1 Plainum Series is designed to be compact with a size of 140mm (D) x 86mm (H) x 150mm (L) providing ample space for cable management

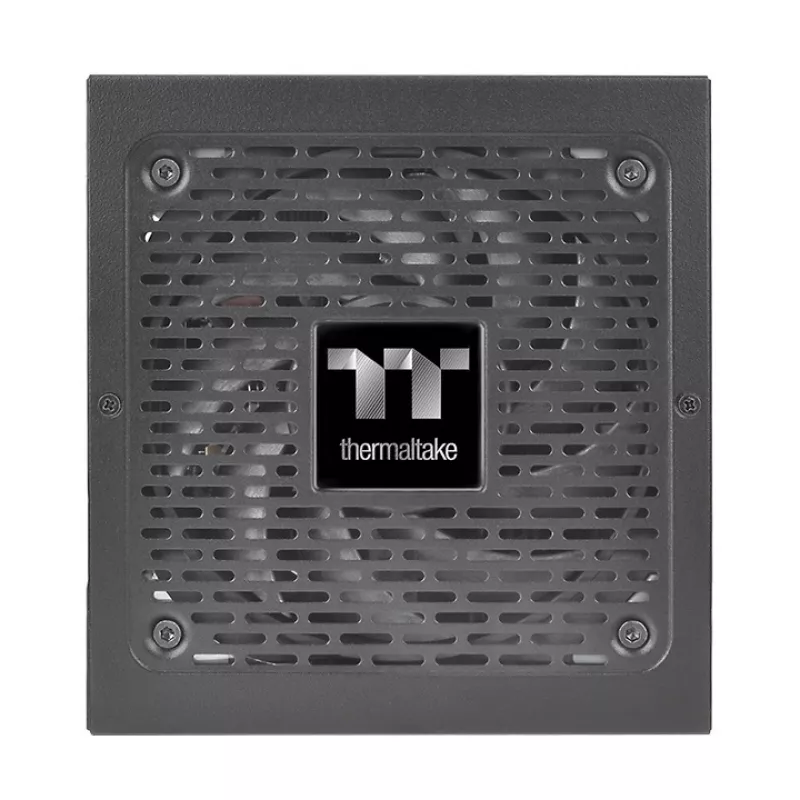

120mm High Static Pressure Fan
Toughpower PF1 1050W/1200W Platinum features a High Static Pressure Fan with a maximum fan speed of up to 2500 RPM, ensuring superb cooling performance. The 2nd Generation Hydraulic Bearing incorporates a new shaft design with inside etches, and an Exceptional Blade Design to guarantee that the fan blades are very tensile in strength, and the Anti-Vibration Mounting System is to provide protection and silent operation.

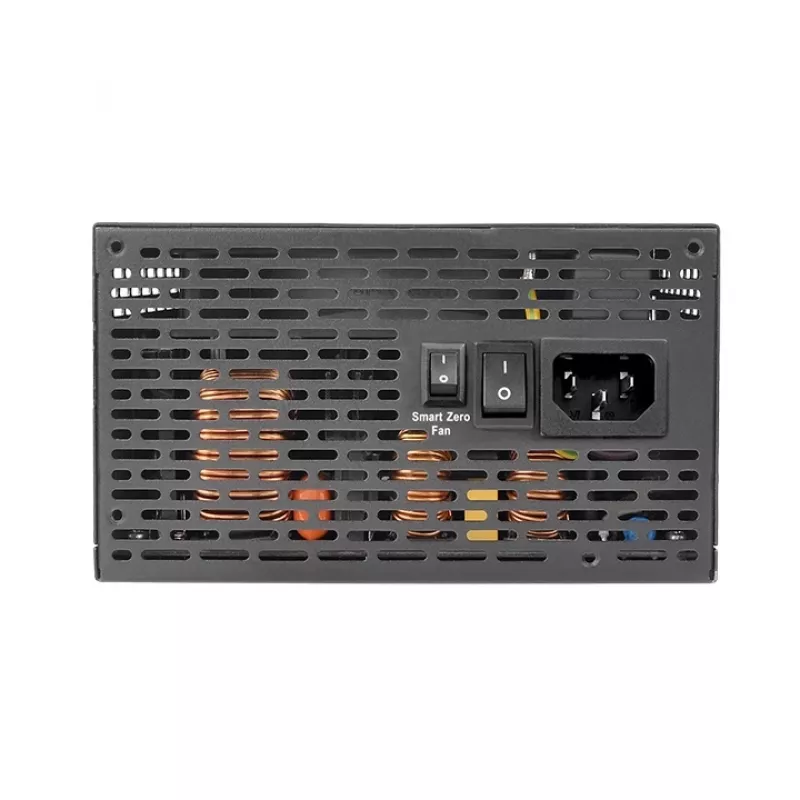

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keeps your performance-critical components functioning more reliable for longer.

Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is stricter than Intel’s standard of ±5% for major rails and ±10% for -12V, its set to no more than ±2% for major rails to meet the highest performance.

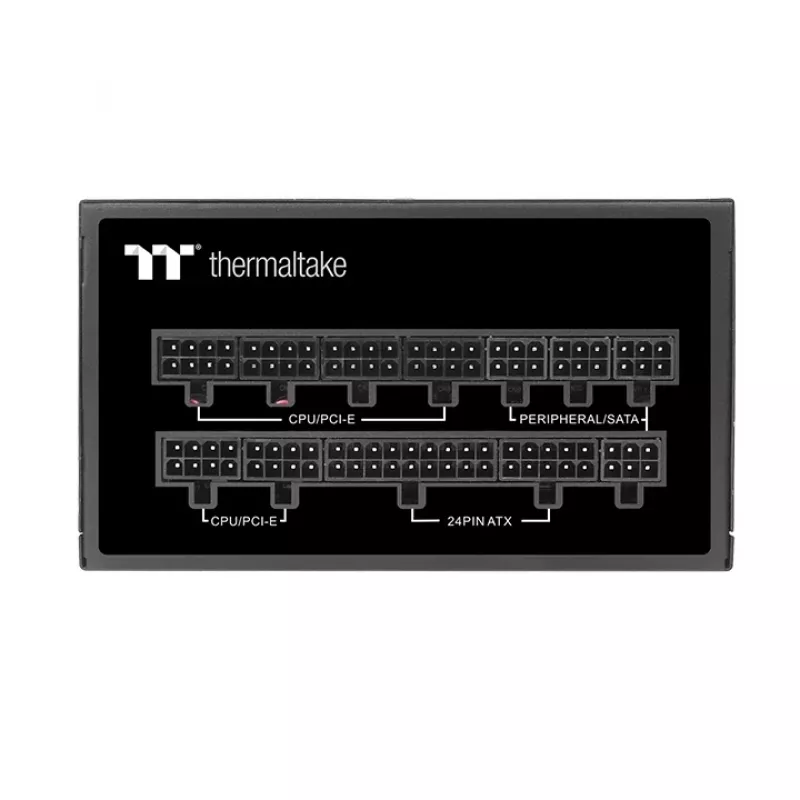

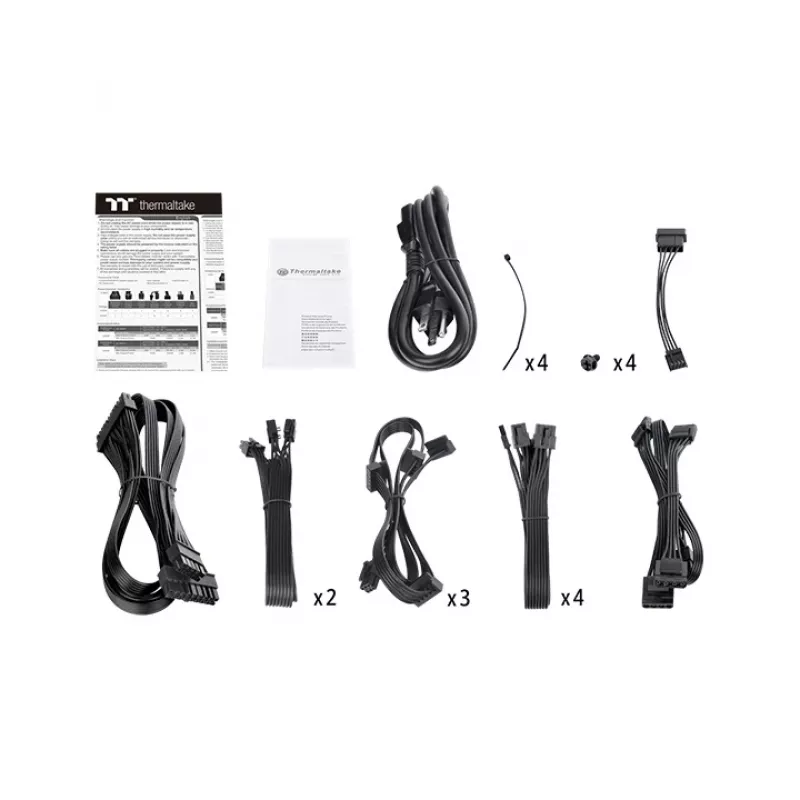

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Platinum Certified and Intel C6/C7 States Ready
Toughpower PF1 Platinum series saves energy through its high energy efficiency up to 92% and is certified to 80 PLUS® Platinum. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

How to use

Install the PSU into a compatible ATX or compact chassis using the four mounting points and connect the 24-pin ATX cable to the motherboard. Attach required modular cables — CPU/EPS, PCIe, SATA and peripheral connectors — according to component needs. Ensure correct orientation of connectors and secure cable routing to maintain airflow. The Smart Zero Fan function operates automatically; no user configuration is required. Verify AC input voltage is within 100–240 V before powering the system.

Recommendations

For long-term reliability, allow adequate case airflow and avoid obstructing the PSU intake. Use the fully modular flat cables to minimize cable clutter and improve cooling. For systems with multiple high-power GPUs, verify total system draw does not exceed the PSU’s continuous 1050 W rating and consider headroom for peak loads.
