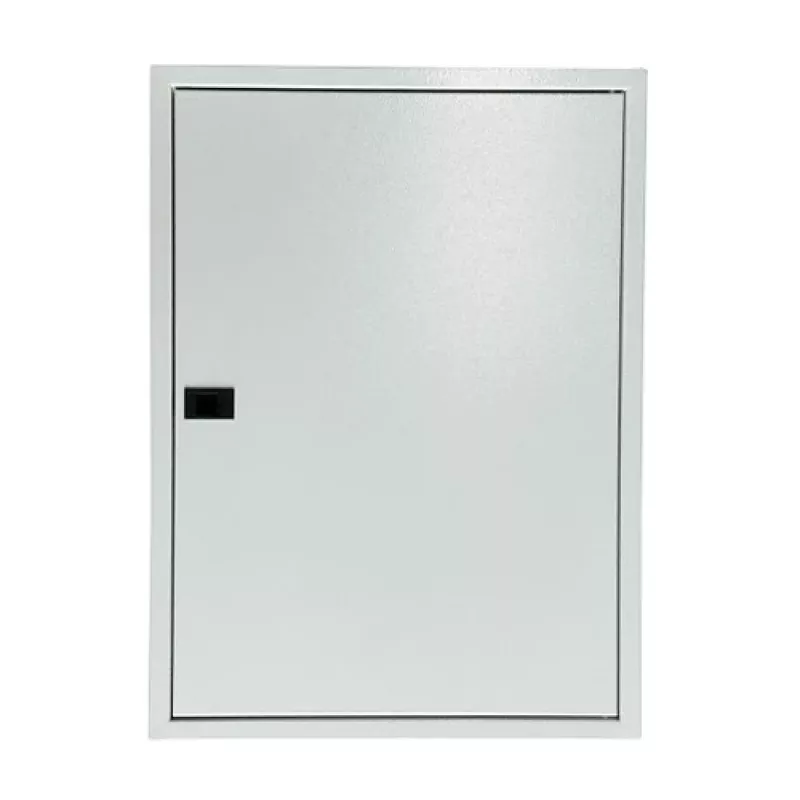

TIBOX AS316 pinta-asennettava jakokeskus, 3x16 moduulia, 440x600x115 mm, sisäkäyttöön

Organising and protecting electrical circuits in indoor installations requires a reliable enclosure that keeps wiring tidy and accessible. The TIBOX AS316 distribution board provides a structured solution with three rows of DIN rail, each accepting 16 standard modules, for a total capacity of 48 modules. Its surface-mounted design and transparent door make it suitable for residential or commercial electrical distribution where visibility and easy access are needed.

Who is it for

This distribution board is intended for electricians and installers working on indoor electrical systems, such as apartment buildings, offices, or small commercial premises. It suits projects that require a compact yet spacious enclosure for circuit breakers, residual current devices, and other modular protection equipment.

Main features

• Three rows of DIN rail, each holding 16 modules (48 modules total)
• Surface-mounted installation for straightforward wall fixing
• Transparent door allows quick visual inspection of installed devices
• Made from ABS/PC plastic for durability and light weight
• Includes neutral and earth terminal blocks for convenient wiring
• Rated insulation voltage 500 V and current up to 100 A
• Operating temperature range from -5°C to +40°C

Specifications

• External dimensions: 440 x 600 x 115 mm (W x H x D)
• Number of rows: 3
• Modules per row: 16
• Total module capacity: 48
• Enclosure material: ABS/PC plastic
• Door type: Transparent
• Mounting type: Surface-mounted
• Installation environment: Indoor
• DIN rail included: Yes
• Terminal blocks: Neutral and earth included
• Rated insulation voltage: 500 V
• Rated current: Up to 100 A
• Operating temperature: -5°C to +40°C
• Colour: White/Light Grey

Tips

When planning the installation, allow extra space around the board for cable entry and future expansion. Use cable glands or conduits that match the enclosure's knockouts to maintain a tidy and safe wiring layout.
