TIVENTO Flex 3/8 inch esieristetty kupariputki 50 m rulla - Cu-DHP PE-vaahtoeristyksellä

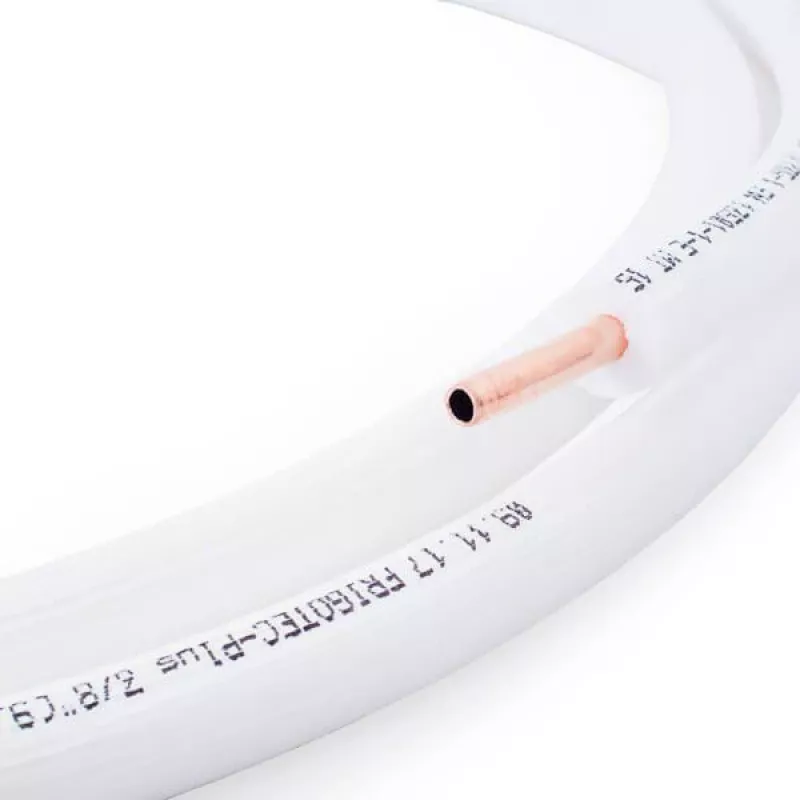

This pre-insulated copper pipe coil delivers a complete refrigerant line in one continuous 50-metre length, combining a high-quality Cu-DHP copper tube with a closed-cell PE foam insulation layer. Engineered for dependable refrigerant and coolant transport in heating and cooling systems, it offers excellent formability, corrosion resistance and clean internal surfaces for reliable system operation.

Advantages

The copper core meets EN 12735-1 standards and is manufactured from deoxidised high-phosphorus copper (Cu-DHP), ensuring excellent formability, corrosion resistance and clean internal surfaces. The 9 mm thick polyethylene insulation provides a thermal conductivity of ≤0.038 W/m·K, keeping energy losses low and reducing condensation risk. Its closed-cell structure resists moisture absorption, while the flexible annealed temper allows easy bending around obstacles without kinking.

Suitable for

• Refrigeration systems and cold storage lines
• Split and multi-split air conditioners
• Heat pump refrigerant circuits
• Process cooling and industrial chilling

Key specifications

• Copper tube outer diameter: 3/8 inch (9.52 mm)
• Wall thickness: 0.8 mm
• Length: 50 m (in a coil)
• Copper temper: annealed (soft)
• Insulation: closed-cell polyethylene foam, 9 mm wall
• Outer diameter including insulation: 27.52 mm
• Thermal conductivity (insulation): ≤0.038 W/m·K at 0°C
• Temperature range: -40°C to +120°C
• Fire reaction class: Euroclass E
• UV resistant and halogen-free
• Maximum operating pressure: up to 100 bar (temperature dependent)

Recommendations

Ensure all joints and connections are properly sealed and insulated to maintain system efficiency and prevent condensation. Use appropriate fittings and tools for copper tube installation, and follow manufacturer guidelines for pressure testing and evacuation.
