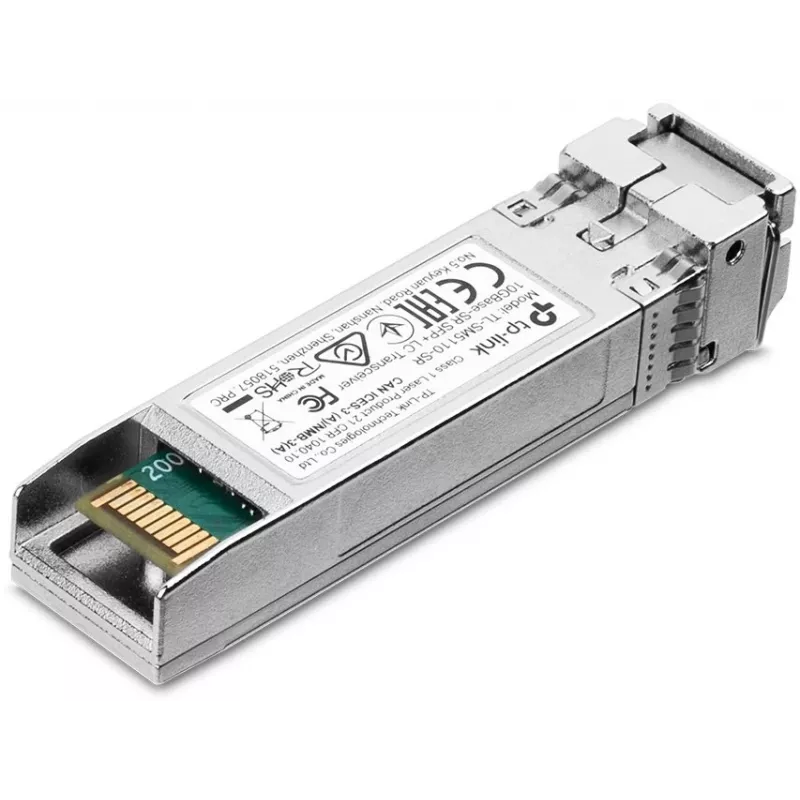

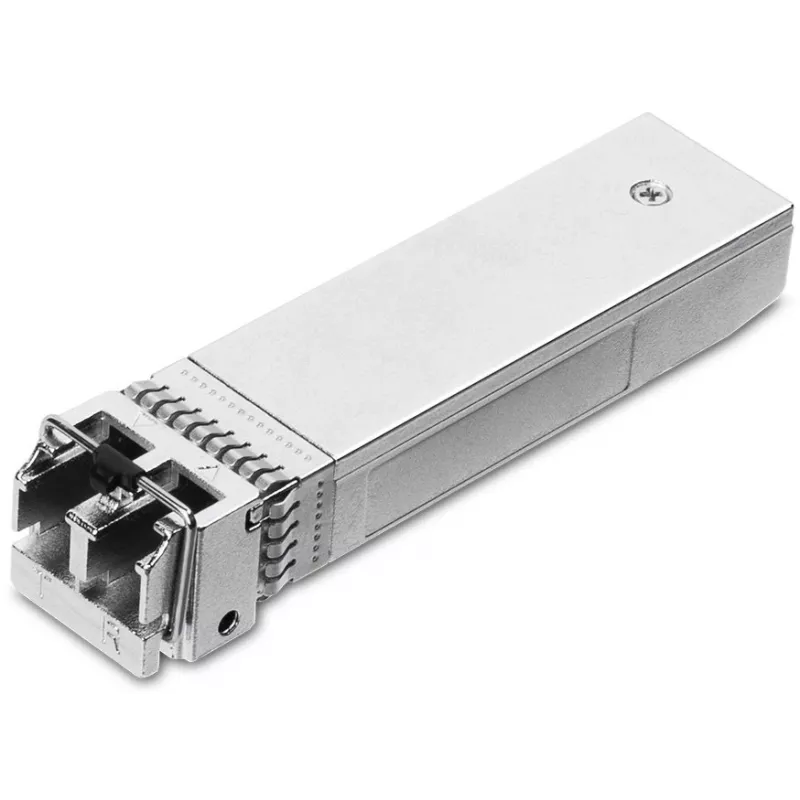

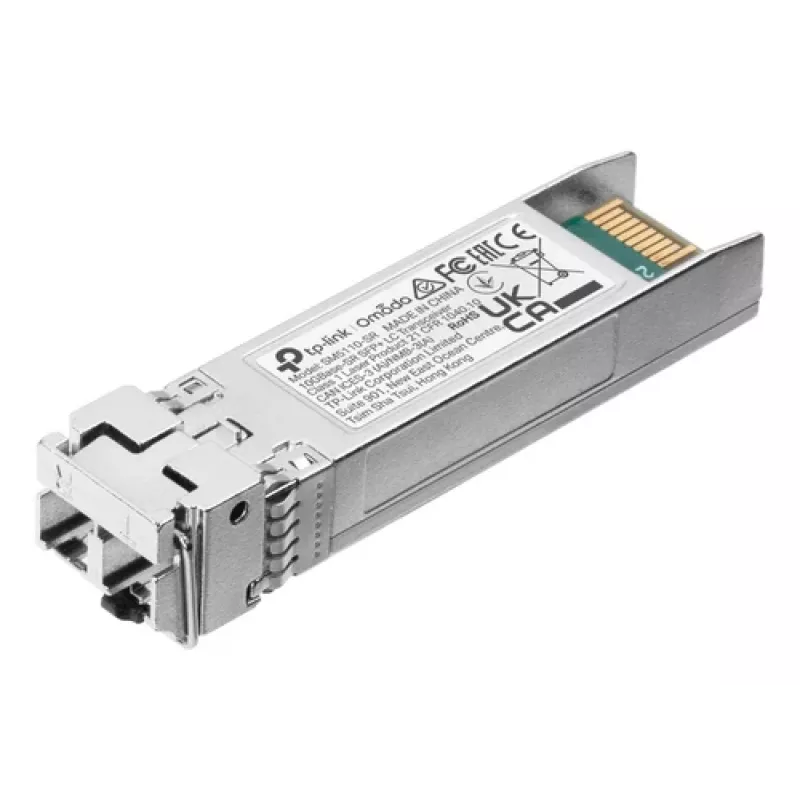

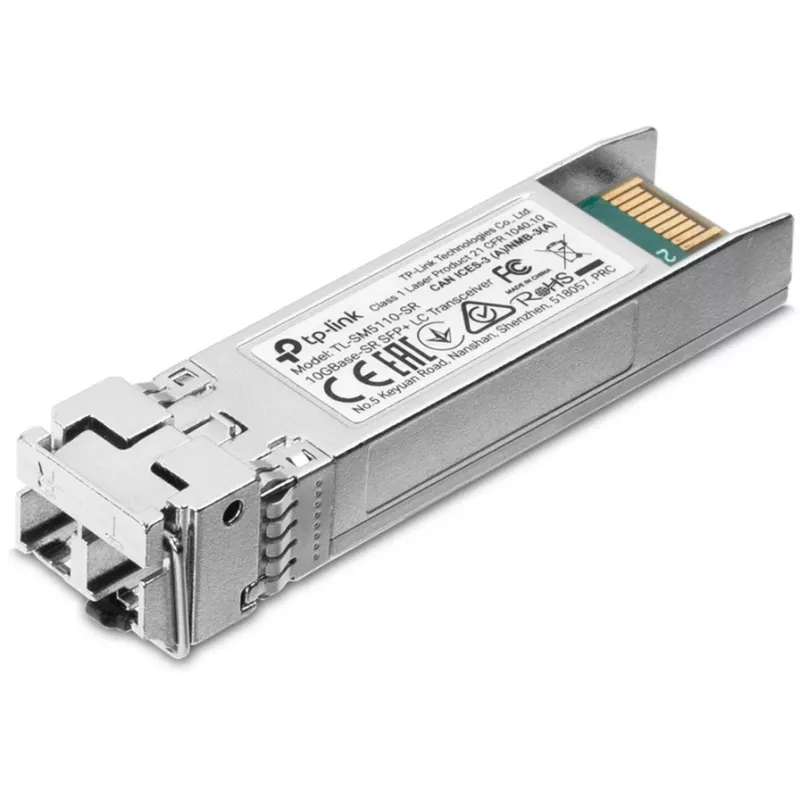

TP-LINK 10GBASE-SR SFP+ LC -lähetin-vastaanotin

The TP-LINK SM5110-SR is a high-performance 10GBASE-SR SFP+ LC transceiver designed for 10 Gigabit Ethernet connections over multimode fiber. It provides reliable, high-speed data transmission for enterprise networks, data centers, and telecommunications applications.

Advantages

This transceiver supports hot-pluggable SFP+ form factor, enabling easy installation and maintenance without network downtime. It offers low power consumption and complies with IEEE 802.3ae standards, ensuring interoperability with a wide range of networking equipment.

Suitable for

• Enterprise network upgrades to 10G
• Data center interconnects
• High-speed storage area networks (SAN)
• Telecommunications and ISP backhaul

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: 850 nm
• Connector: LC duplex
• Max Distance: 300 m on OM3 multimode fiber
• Compliance: IEEE 802.3ae, SFF-8431
• Power Consumption: <1.0W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, pair this transceiver with OM3 or OM4 multimode fiber cables and compatible 10G SFP+ switches or network cards. Ensure your equipment supports SFP+ modules and 10GBASE-SR standard.
