TP-Link TL-WR820N WLAN-reititin Fast Ethernet yksikaista (2,4 GHz) valkoinen

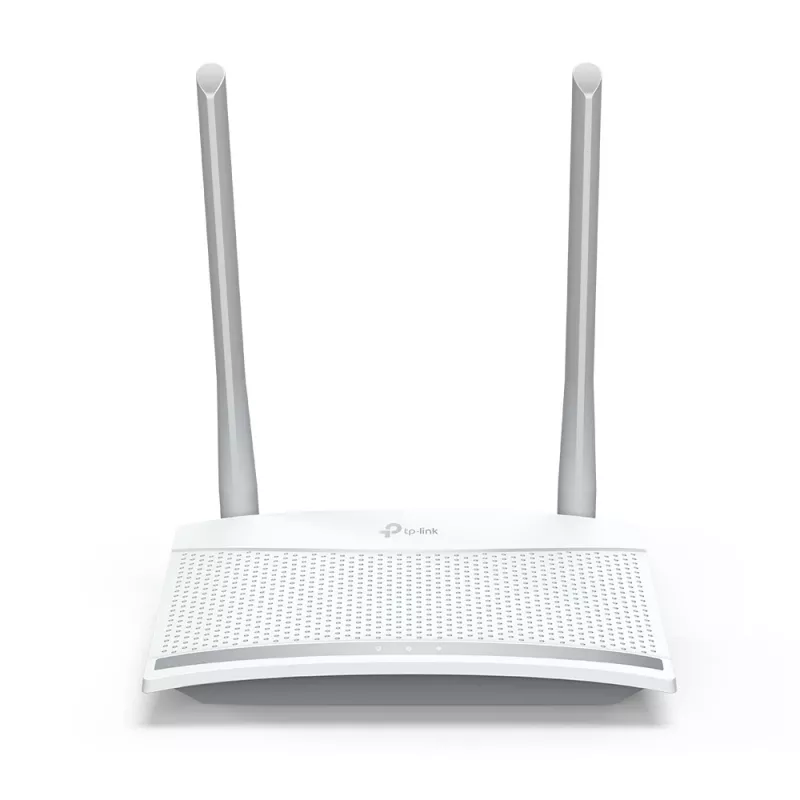

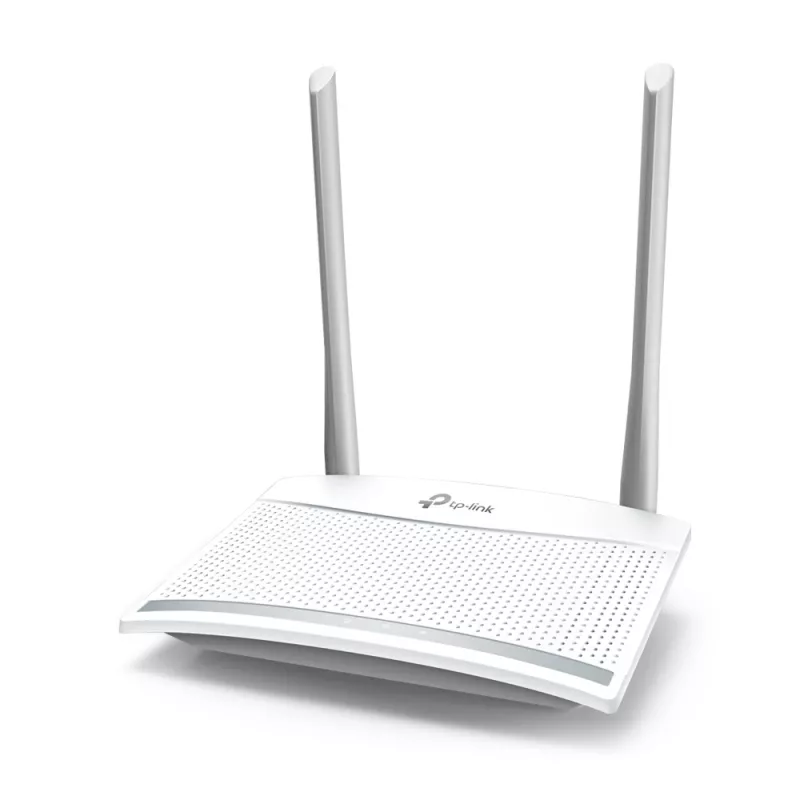

The TP-Link TL-WR820N is a tabletop single-band router operating on the 2.4 GHz band and compliant with Wi‑Fi 4 (802.11n). It delivers wireless speeds up to 300 Mbps and provides Fast Ethernet connectivity via three LAN ports. The compact white housing with a perforated top plate supports heat dissipation for stable long-term operation and includes LEDs for activity, LAN and WLAN status.

Advantages

The router offers up to 300 Mbps wireless throughput on the 2.4 GHz band, with two 5 dBi external antennas and 2×2 MIMO for improved signal strength and wider coverage. IPTV-friendly features such as IGMP Proxy/Snooping, Bridge and VLAN tagging optimize video streaming performance. Built-in security supports WEP, WPA and WPA2 encryption, and a Guest Network function provides separated access for visitors. The device is IPv6 compatible to support modern ISP services.

Suitable for

• Home internet access and basic networking
• HD video streaming and IPTV
• Online gaming for small households
• Providing guest Wi‑Fi with isolated access

Key specifications

• Wi‑Fi band: Single‑band 2.4 GHz
• Top Wi‑Fi standard: Wi‑Fi 4 (802.11n)
• Maximum WLAN data rate: 300 Mbit/s
• Antennas: 2 × 5 dBi external
• MIMO: 2×2

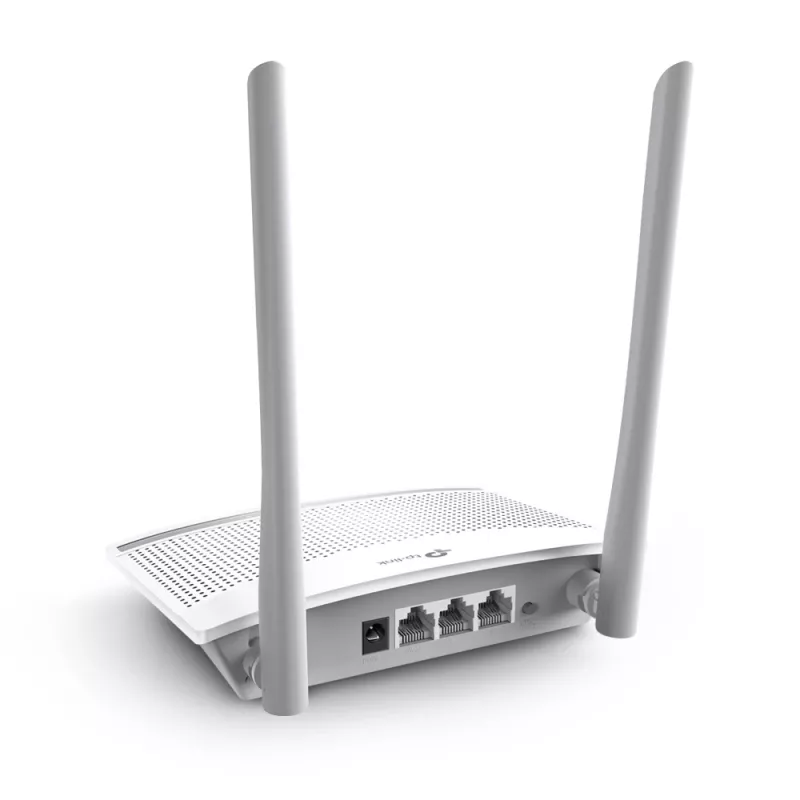

• Ethernet: 3 × Fast Ethernet (RJ‑45) ports, 10/100 Mbit/s
• Security: WEP, WPA, WPA2, WPA2‑PSK
• IPv6: Compatible
• Color: White

How to use

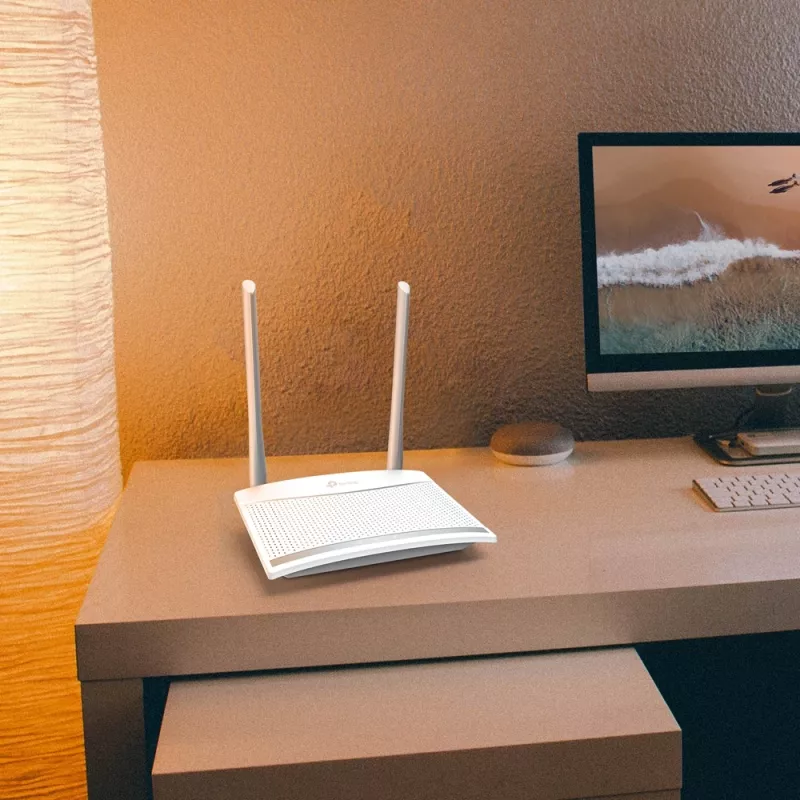

Place the TL‑WR820N in a central location for best coverage and connect the modem to the router’s WAN port. Power the device and use the web management interface or the router’s quick setup wizard to configure the wireless network name (SSID), password and security mode. Configure IPTV settings (IGMP Proxy/Snooping, Bridge or VLAN tagging) if your provider requires them. Set up a Guest Network through the wireless settings menu to give visitors isolated access.

Recommendations

For optimal wireless performance, position the router elevated and away from large metal objects, microwaves or cordless phones operating on the 2.4 GHz band. Keep firmware updated via the TP‑Link support site to ensure security and compatibility with ISP services.
