TP-Link UH700 USB-keskitin USB 3.2 Gen 1 (3.1 Gen 1) Micro-B 5000 Mbit/s musta

The USB 3.0 7-Port Hub UH700 expands a single USB socket into seven USB 3.0 ports while providing both data transfer and charging capabilities. Designed to deliver up to 5V/1.5A per port for faster charging and equipped with USB 3.0 data lines, the UH700 supports quicker device charging and significantly higher data throughput compared with USB 2.0 hubs. The hub includes built-in protections for temperature, over-current, over-voltage and short circuit, and supports hot swapping.

Advantages

The UH700 charges compatible devices faster with up to 5V/1.5A output per port and reduces overall charging time compared with 5V/1A hubs. USB 3.0 connectivity enables up to ten times the data transfer speed of USB 2.0 for large files and video playback. Seven downstream ports increase the number of available connections without swapping devices. Integrated protection circuitry and a surge protector protect connected devices and data during transfers. LED indicators provide visual status for power and individual port connections.

Key specifications

• Model: UH700
• Interface: USB 3.0 (7 downstream ports)

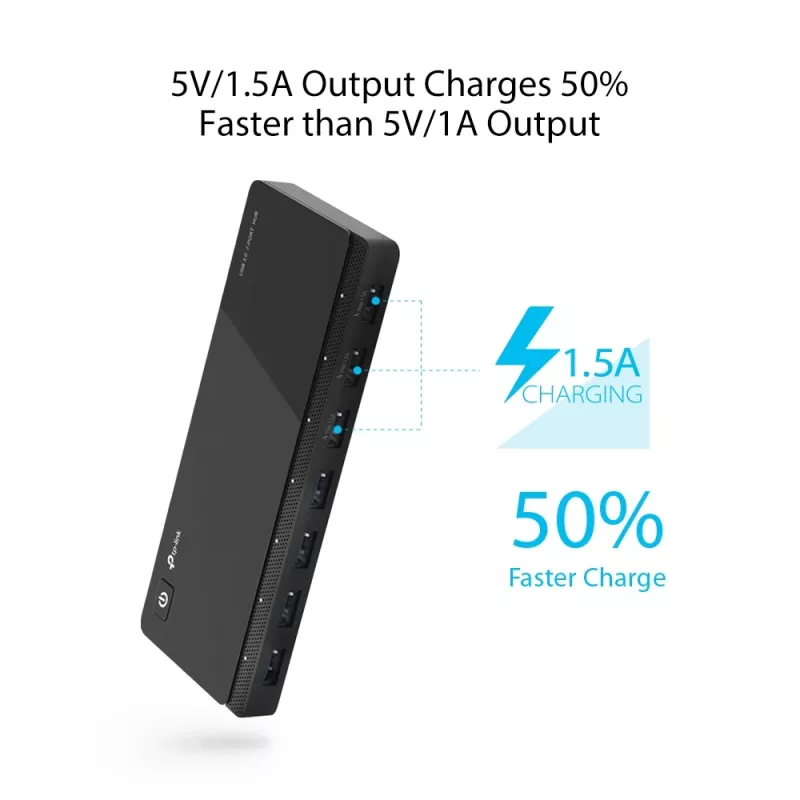

• Charging output per port: up to 5V / 1.5A

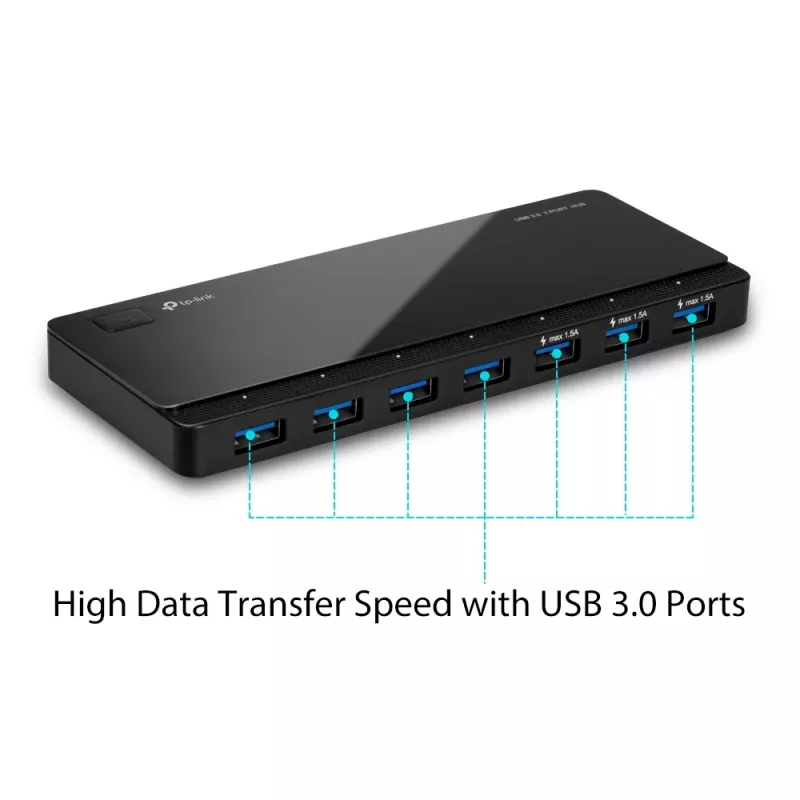

• Data transfer: USB 3.0 speeds (up to 10× USB 2.0)

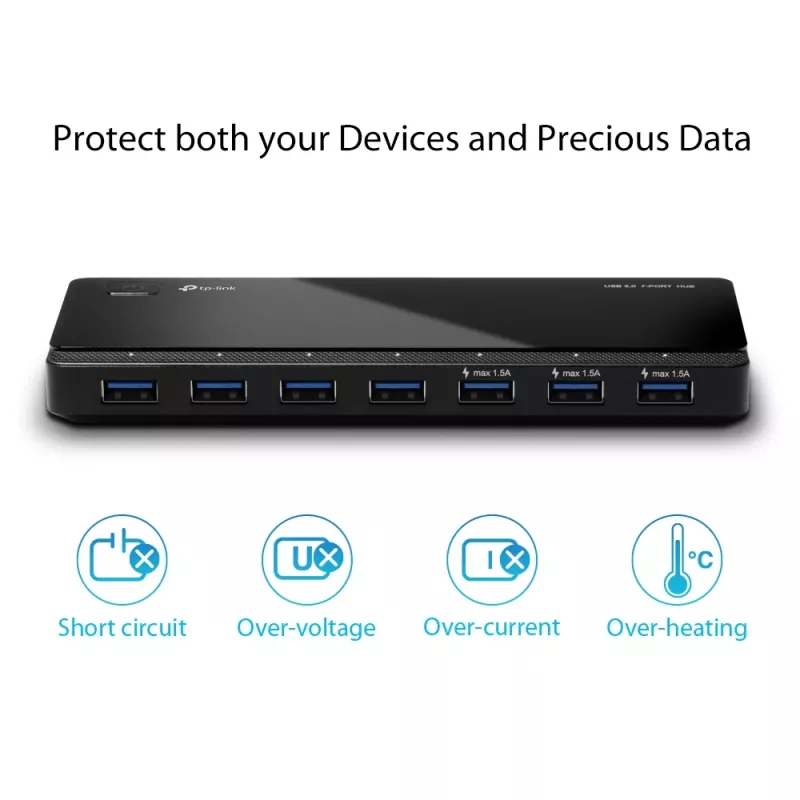

• Protections: over-temperature, over-current, over-voltage, short circuit, surge protection
• Hot swap support: yes (connect/disconnect while computer is on)
• Indicators: dim white LED for power and seven dim white LEDs for each port

How to use

Connect the UH700 to a computer’s USB port using the hub’s upstream cable. Plug peripherals or charging cables into any of the seven USB 3.0 ports. Devices that support higher charging current will draw up to 5V/1.5A; charging times depend on the device and actual conditions. Data devices will operate at USB 3.0 speeds when connected to a USB 3.0 host. You may connect or disconnect devices while the computer is powered on (hot swapping). Observe the LEDs to confirm power and individual port connections.

Recommendations

For fastest data transfer and charging, connect the UH700 to a USB 3.0 host port and use USB 3.0 cables. Charging performance and transfer speeds vary by device and conditions. Avoid exposing the hub to extreme temperatures or moisture and ensure proper ventilation during prolonged use.
