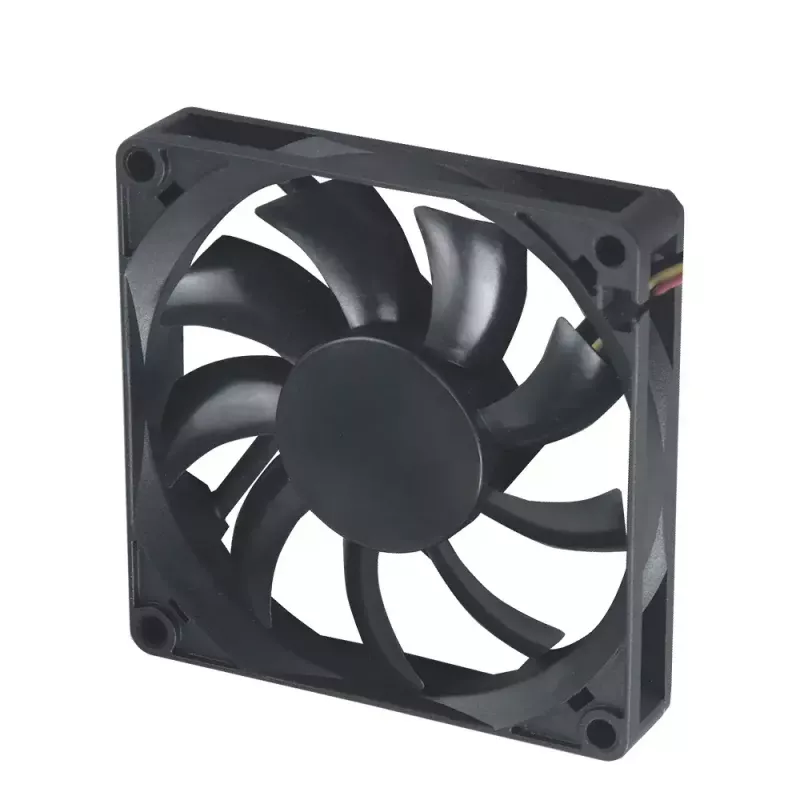

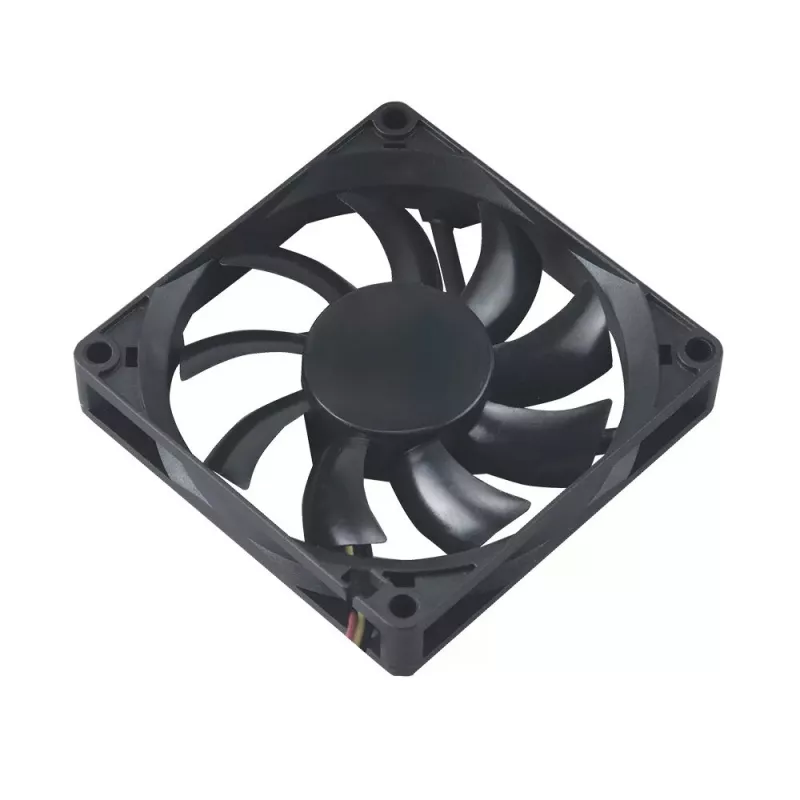

Tuuletin Akasa Slimfan DFS801512M 8 cm musta

Akasa Slimfan DFS801512M is an 80 mm low-profile cooling fan designed for computers and industrial equipment. With a 15 mm slim profile and 80 × 80 × 15 mm dimensions, this black fan is intended for compact systems such as HTPCs and small form-factor builds. It runs at 12 V and reaches up to 2500 RPM while delivering a maximum static pressure of 2.2 mmH2O to help overcome airflow resistance in densely packed setups.

Advantages

The slim 80 mm frame fits tight spaces where standard fans cannot be installed, combining a compact form factor with effective cooling. Precision-balanced, low air-impedance fan blades increase airflow while reducing resistance and noise. High static pressure performance helps push air through restrictive vents and dense components.

Suitable for

• Home Theater PCs (HTPCs)
• Small form-factor and slim desktop systems
• Compact industrial enclosures with limited clearance

Key specifications

• Brand: Akasa
• Model: DFS801512M
• Size: 80 × 80 × 15 mm (80 mm slim)
• Rated voltage: 12 V
• Max speed: 2500 RPM
• Max static pressure: 2.2 mmH2O
• Color: Black
• MPN: DFS801512M
• EAN: 4710614532779

How to use

Install the fan in the available 80 mm mounting location or replace a standard 25 mm fan with this 15 mm slim model where clearance is limited. Connect the fan to a 12 V fan header or compatible power source, ensuring the connector matches your system. Orient the fan so airflow direction matches your case ventilation scheme and secure it with appropriate screws or mounting hardware for vibration-free operation.

Recommendations

For best results, use the Akasa Slimfan in intake or exhaust positions where space is constrained and when higher static pressure is required. Regularly check for dust buildup and ensure the fan receives 12 V. If possible, control the fan speed via motherboard or fan controller to balance airflow and noise.
