Tuuletin Noctua NF-F12 INDUSTRIALPPC-2000 IP67 PWM

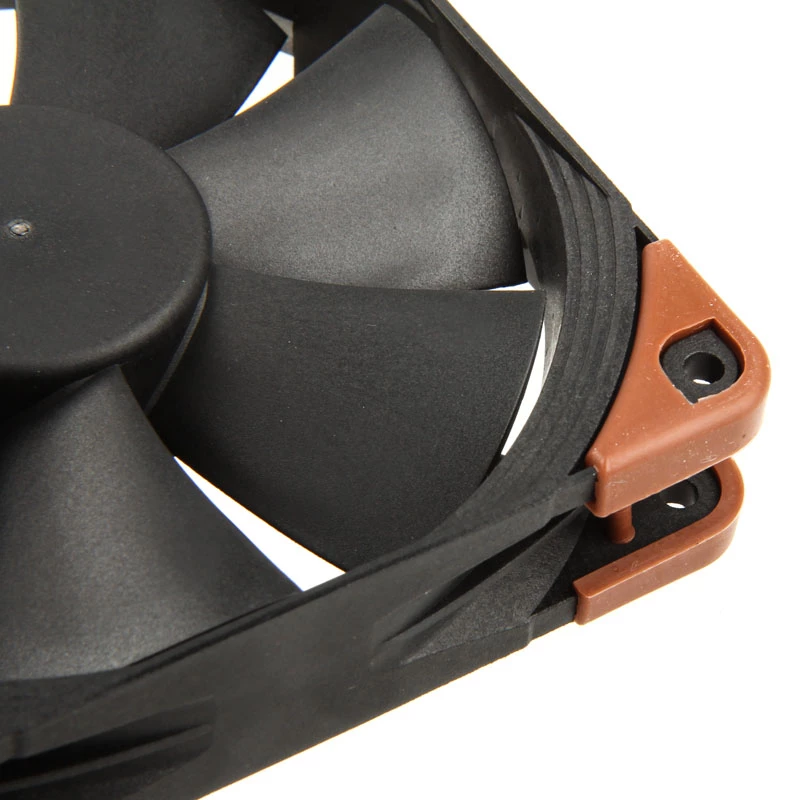

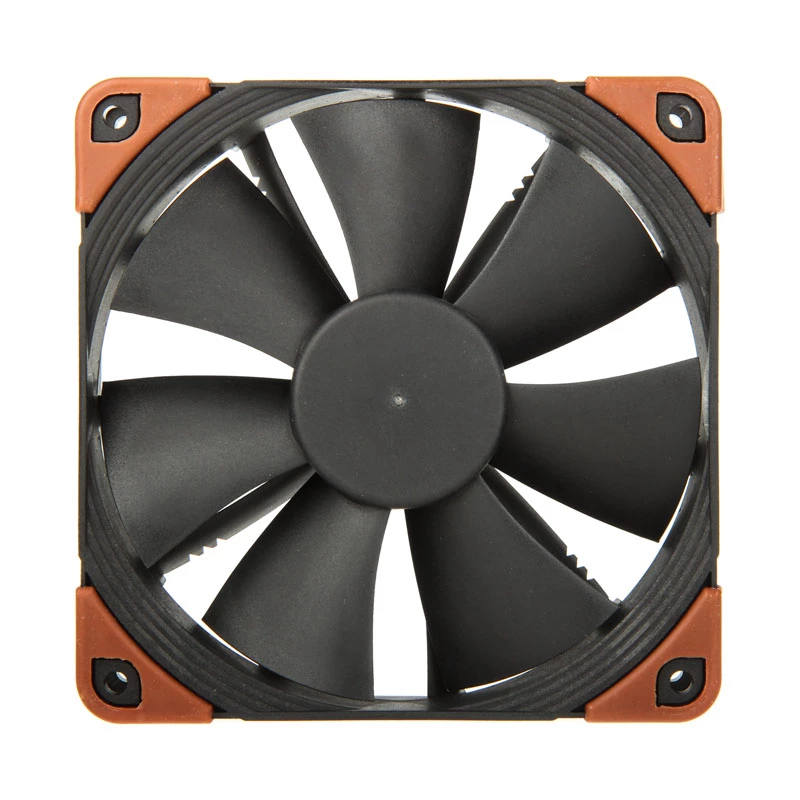

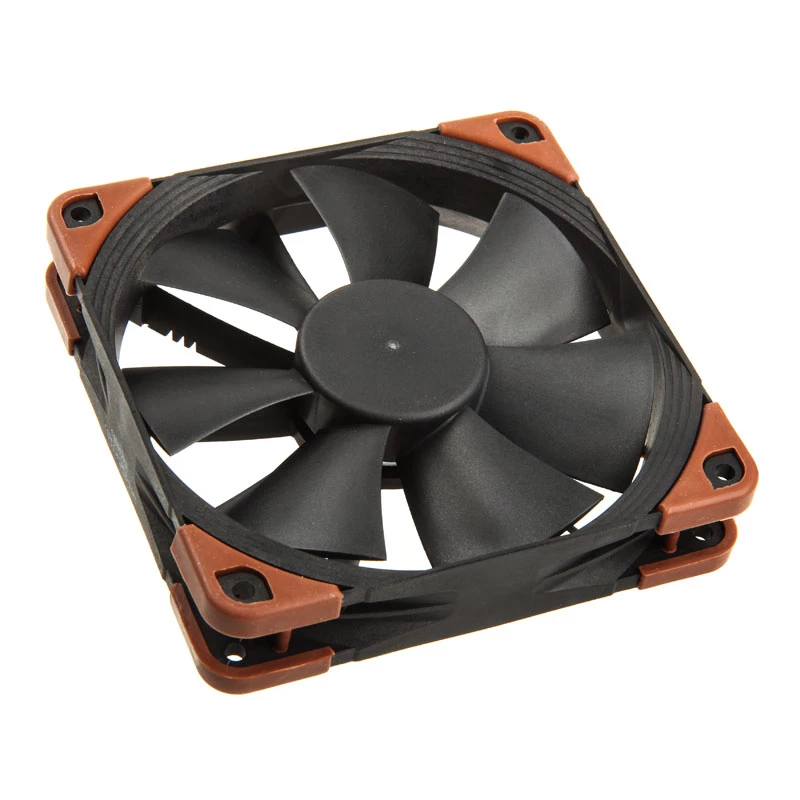

The Noctua NF-F12 INDUSTRIALPPC-2000 IP67 PWM is a rugged 120 mm industrial fan engineered for heavy-duty cooling in harsh environments. It combines the award-winning NF-F12 aerodynamic design with a three-phase motor and fibre-glass reinforced polyamide construction to deliver high airflow and static pressure while maintaining moderate noise and power consumption. The IP67-rated motor and PCB are cast in a heat-conductive resin for full dust-tight and waterproof protection, and the proven SSO2 bearing technology ensures an MTTF of over 150,000 hours. This model supports PWM speed control and comes with a 6-year manufacturer’s warranty.

Advantages

The fan offers elevated performance through a 2000 RPM top speed and a three-phase motor that improves smoothness, reduces vibrations and increases energy efficiency compared with comparable high-speed single-phase fans. The Focused Flow™ frame with eleven stator guide vanes and the seven-blade Heptaperf™ impeller provide strong pressure and targeted airflow for heatsinks and radiators. Fibre-glass reinforced polyamide construction and an IP67-certified motor/PCB provide robust resistance to heat, dust and water. Integrated AAO features, anti-vibration pads, a CNC-milled brass bearing shell and Noctua’s NE-FD2 PWM IC with Smooth Commutation Drive (SCD) complete the package for dependable, long-term operation.

Suitable for

• Industrial and factory equipment cooling
• Server racks and telecommunications enclosures
• Heatsinks and radiators in constrained or dusty/wet environments
• Custom industrial projects requiring IP67 protection

Key specifications

• Model: Noctua NF-F12 INDUSTRIALPPC-2000 IP67 PWM
• Fan diameter: 120 mm
• Speed range: 450–2000 RPM (PWM)
• Airflow: 121.8 m³/h
• Maximum static pressure: 3.94 mmH2O
• Voltage: 12 V
• Bearing: SSO2 (self-stabilising oil-pressure bearing)
• Construction: Fibre-glass reinforced polyamide (impeller and frame)
• Ingress protection: IP67 (motor and PCB cast in resin)
• Colour: Brown, Black
• MPN: NF-F12 INDUSTRIALPPC-2000 IP67
• EAN: 4716123315407
• MTTF: >150,000 hours
• Warranty: 6 years

How to use

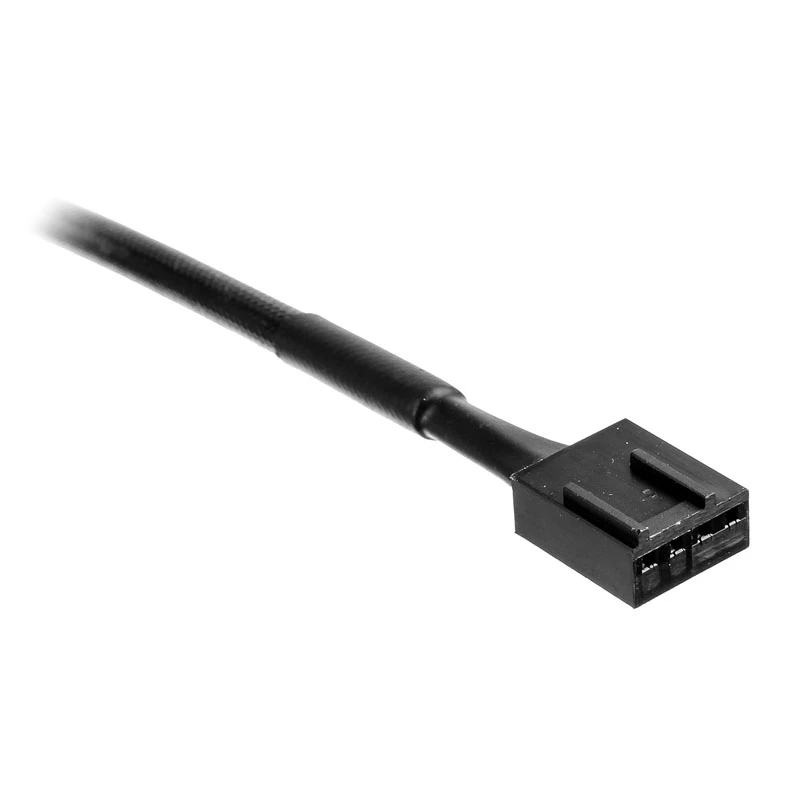

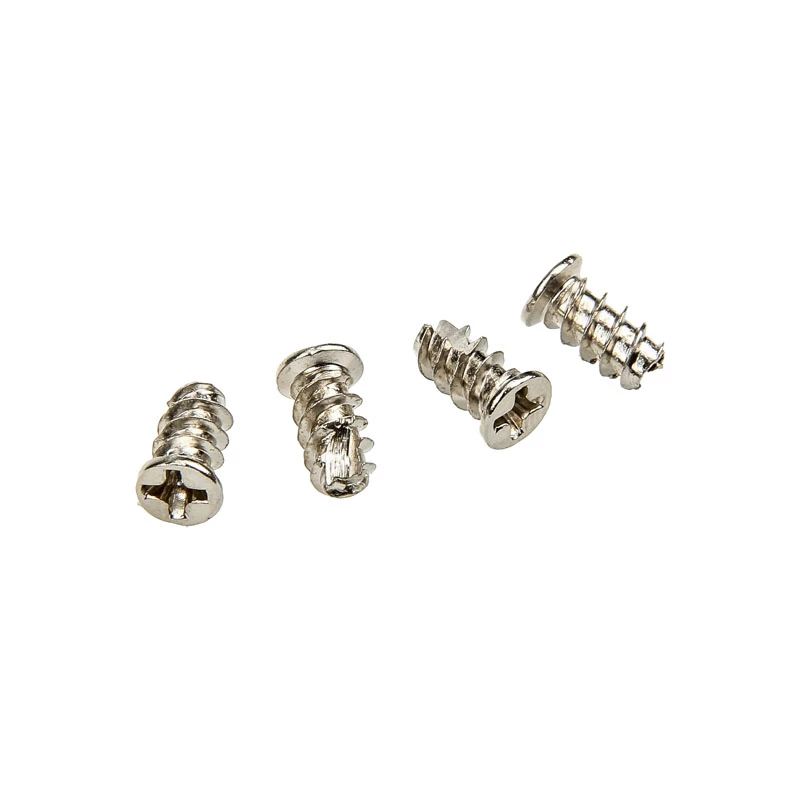

Install the fan using standard 120 mm mounting holes and compatible screws or mounting systems; the integrated anti-vibration pads maintain compatibility with standard hardware. Connect the fan to a 12 V PWM-capable header or controller to enable automatic speed regulation across the 450–2000 RPM range. Ensure the airflow direction aligns with your cooling requirement (push or pull configuration) and secure cables to avoid contact with the impeller. For IP67 models, ensure connectors and system openings are properly sealed when used in wet environments.

Recommendations

Use this fan in applications that require high flow and pressure in dusty or wet conditions. For industry-specific needs (24 V versions, different connectors, cable lengths or certifications such as UL/TÜV), contact the manufacturer for customised options.
