TV-seinäteline Neomounts WL35-550BL12 max 40kg 24-55in musta

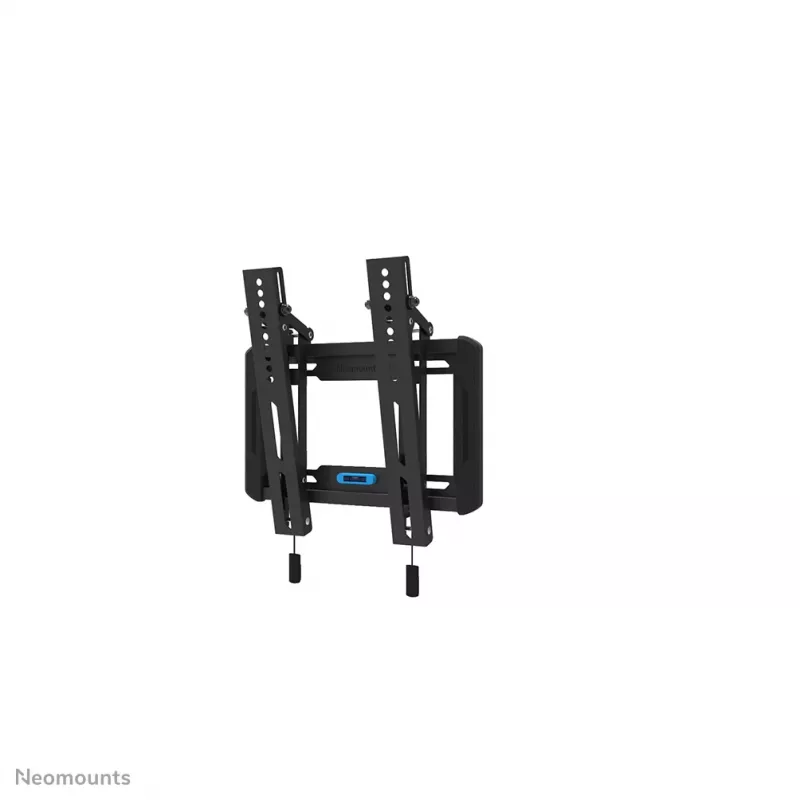

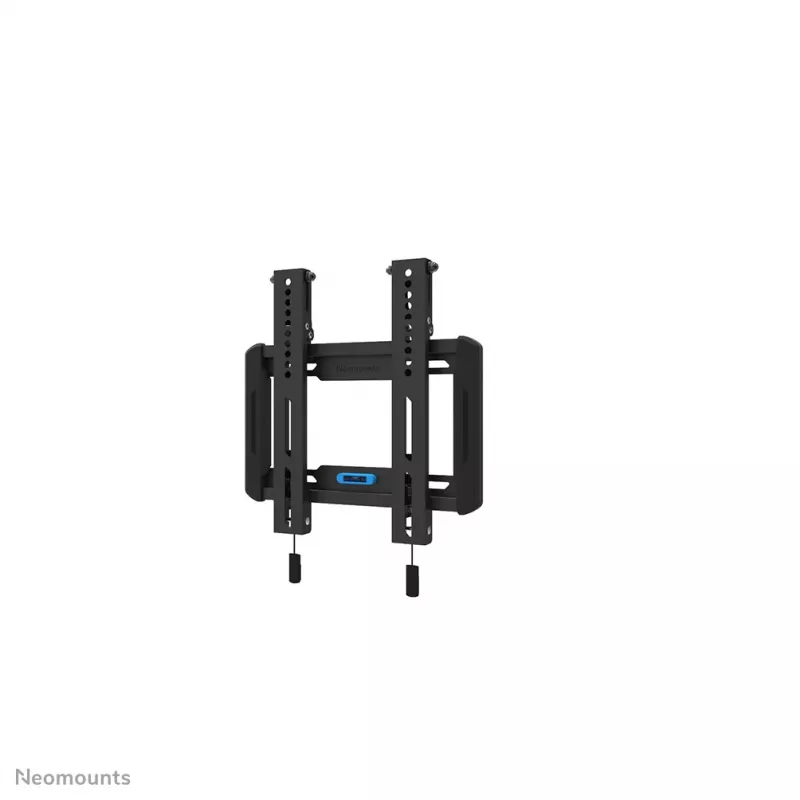

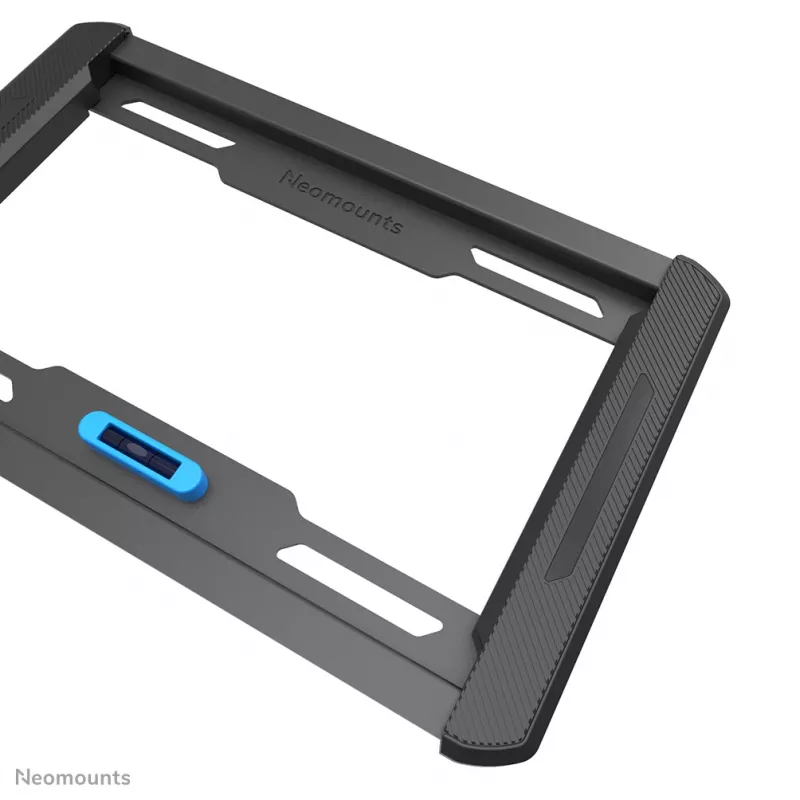

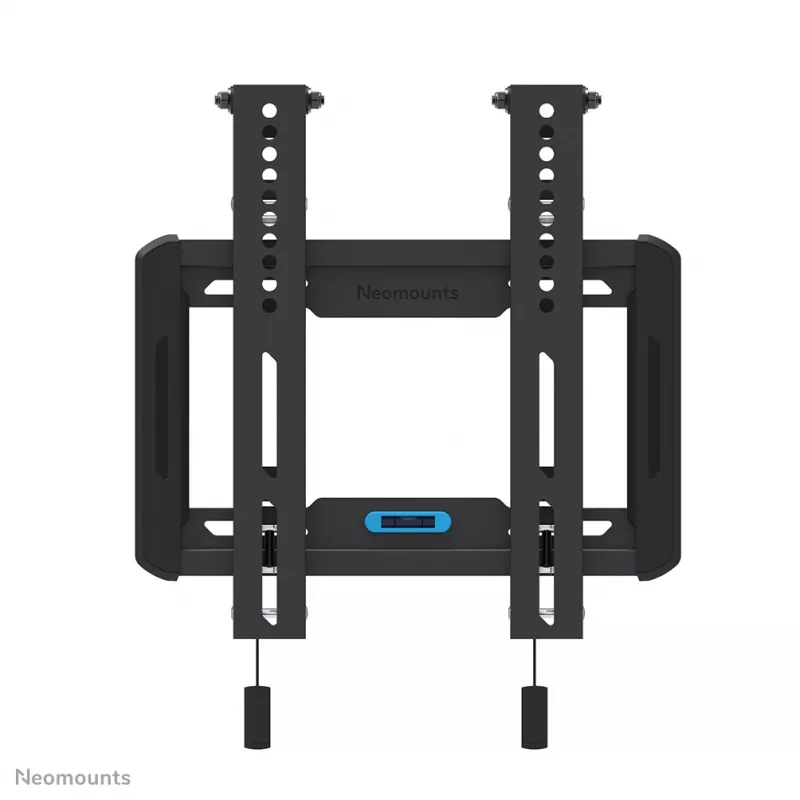

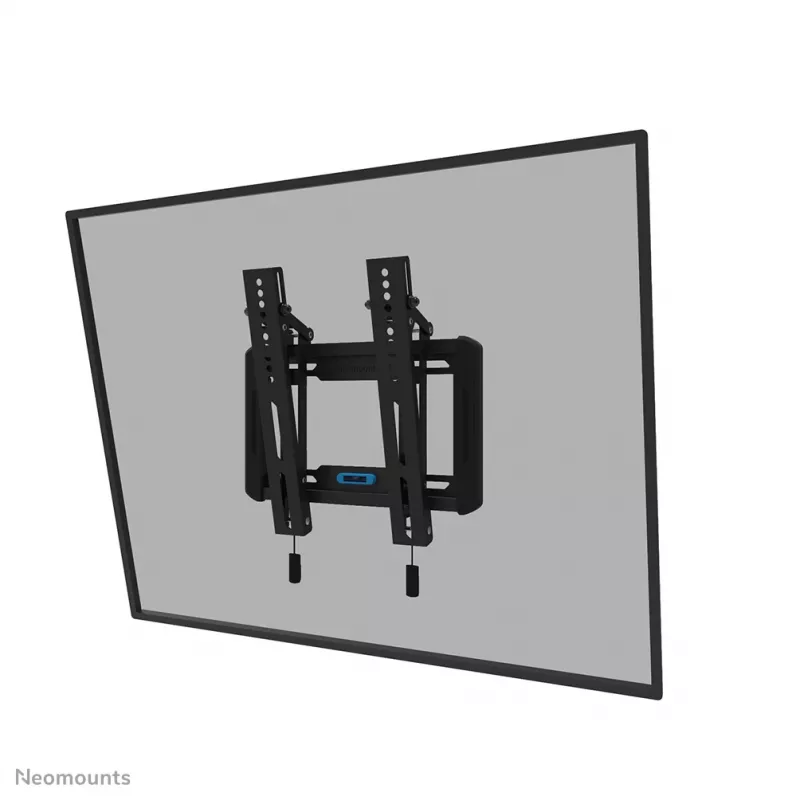

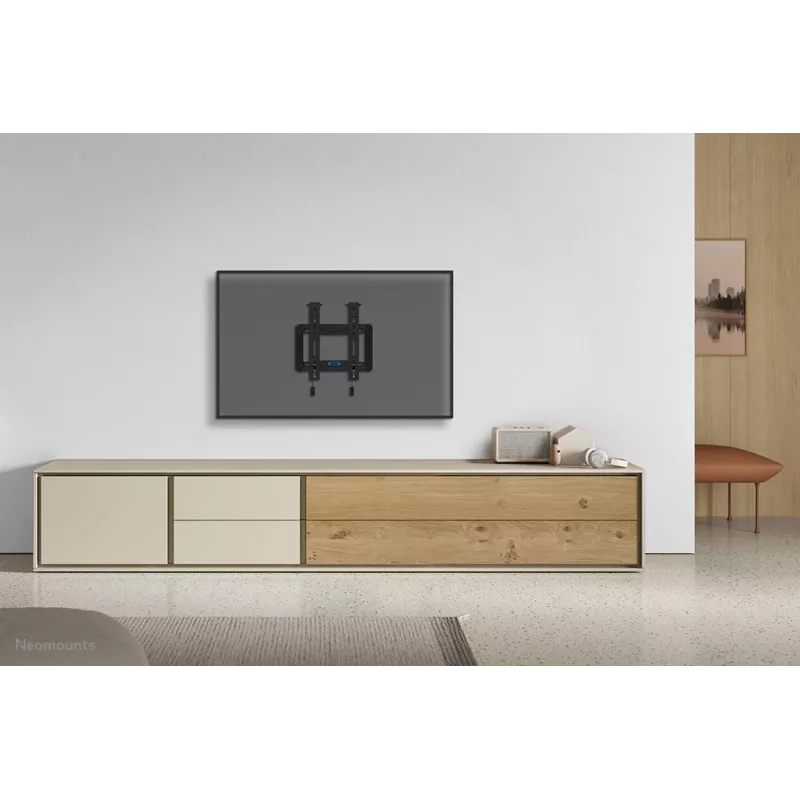

The Neomounts WL35-550BL12 LEVEL is a slim tiltable wall mount for flat screens from 24 to 55 inches with a maximum weight capacity of 40 kg. It supports VESA hole patterns from 75x75 mm up to 200x200 mm and positions the screen just 3.3 cm from the wall. The mount includes a built-in spirit level for accurate alignment and a magnetic pull & release system that simplifies attaching and hiding the release straps behind the screen.

Advantages

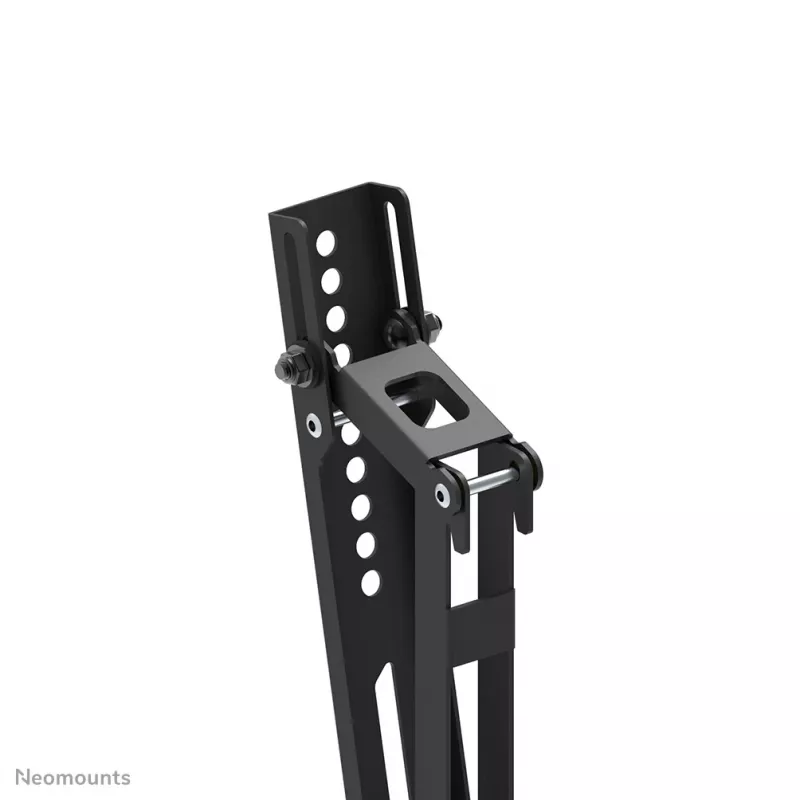

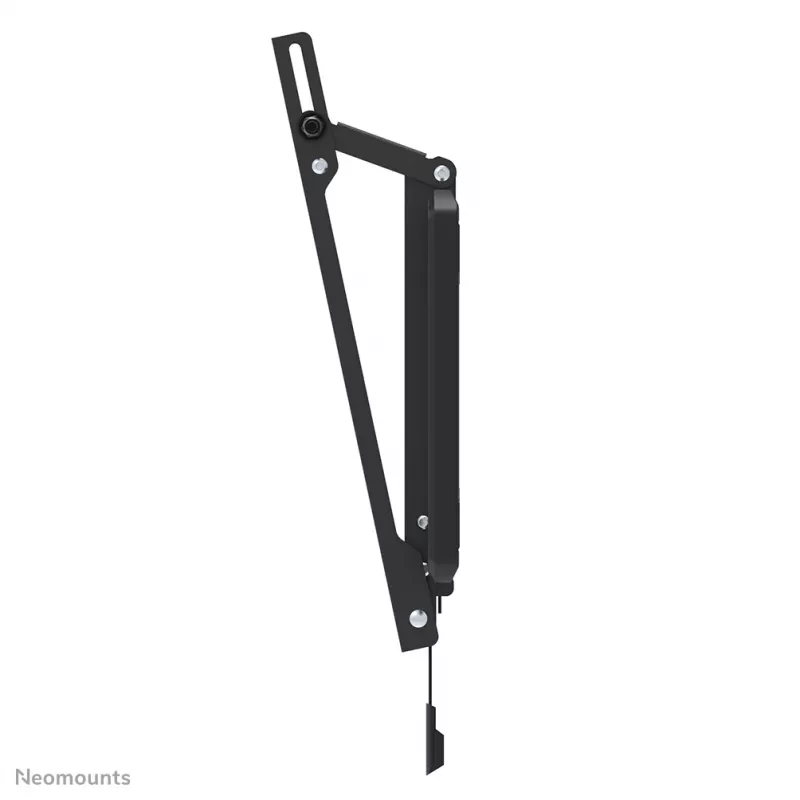

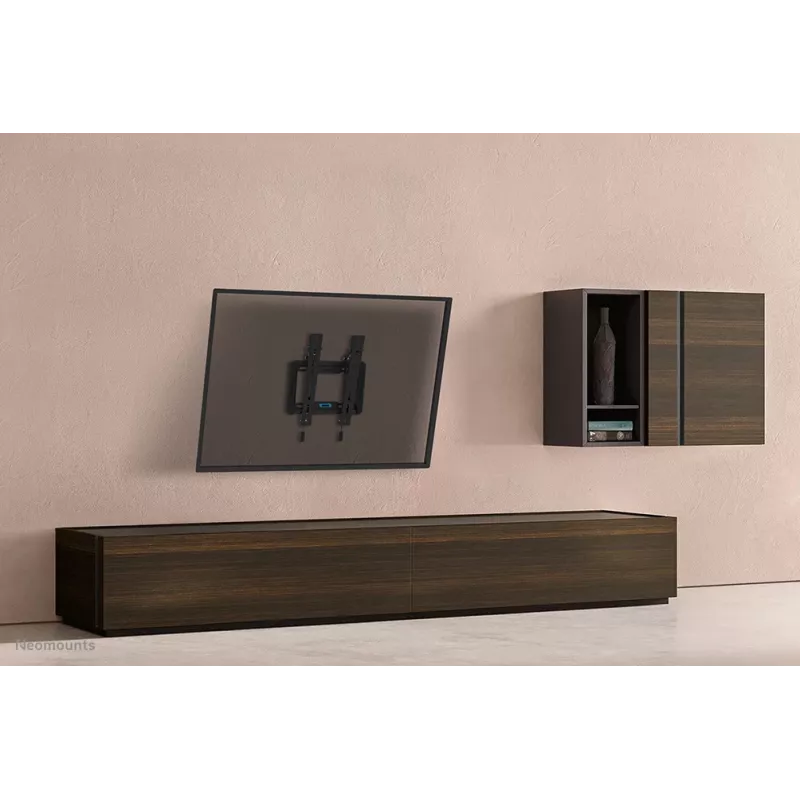

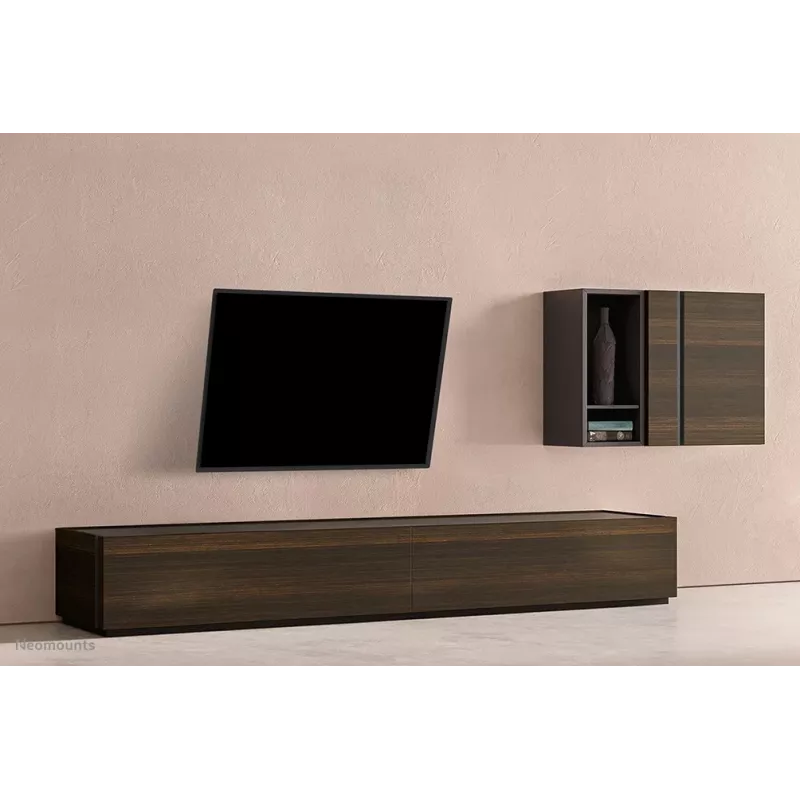

The WL35-550BL12 offers a low-profile design with a shallow depth of 3.3 cm and a tilt range up to 12°, allowing adjustment of the viewing angle while keeping the display close to the wall. Its magnetic pull & release mechanism enables quick and secure installation and neat concealment of the release straps. Compatibility with VESA 75x75 to 200x200 and a 40 kg load rating make it suitable for a wide range of TVs.

Suitable for

• Flat TVs and monitors 24–55"
• Screens with VESA 75x75, 100x100, 200x100 or 200x200 mm

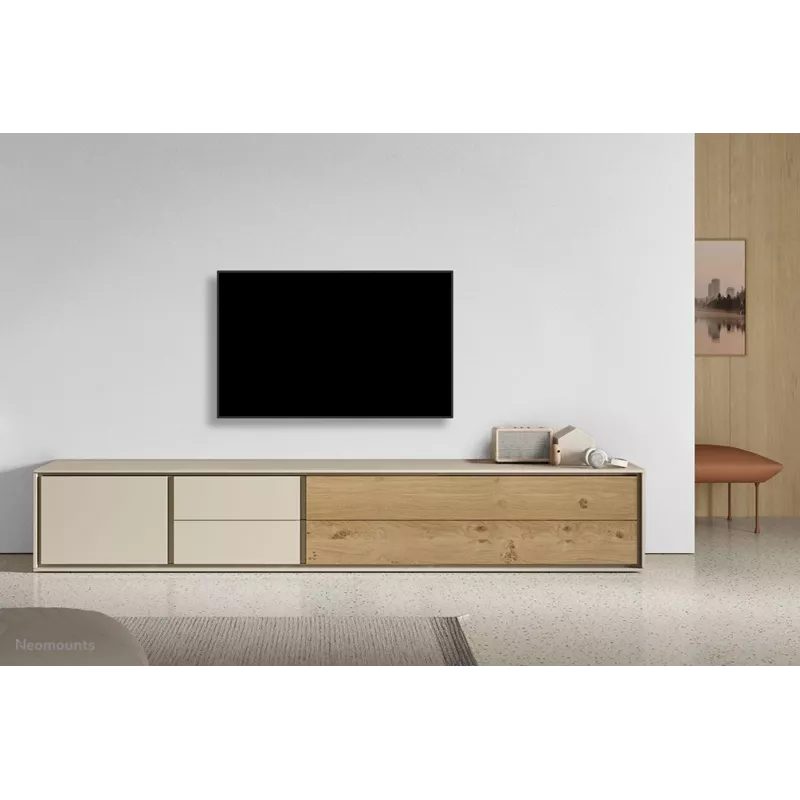

• Installations where a slim profile (3.3 cm) is desired
• Environments requiring a simple tilt (up to 12°) adjustment

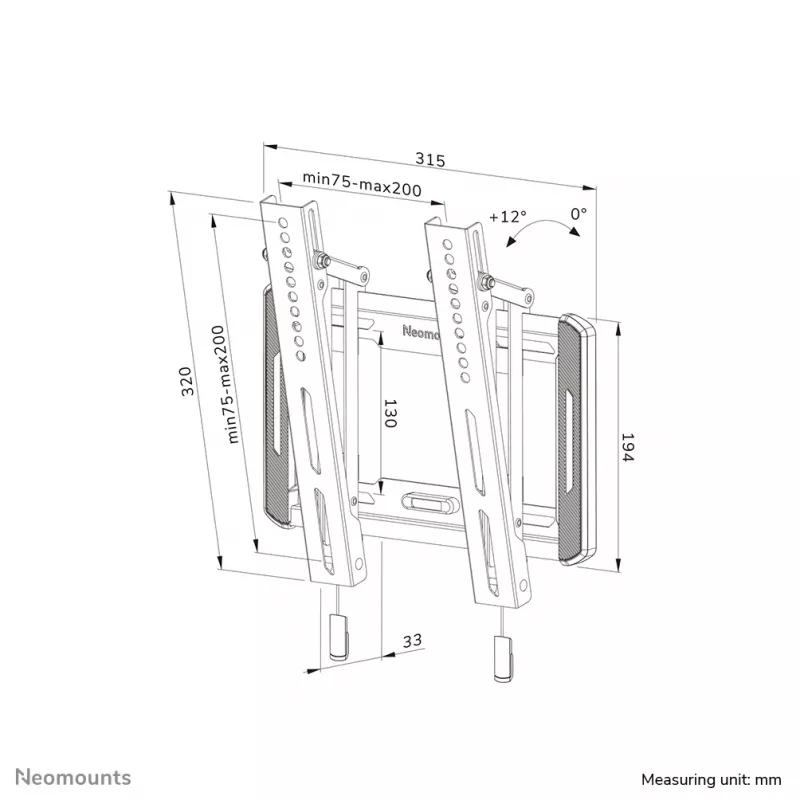

Key specifications

• Model: Neomounts WL35-550BL12 LEVEL
• Supported screen size: 24–55 inches
• Maximum load capacity: 40 kg
• VESA compatibility: 75x75 to 200x200 mm
• Tilt range: 0° to 12°

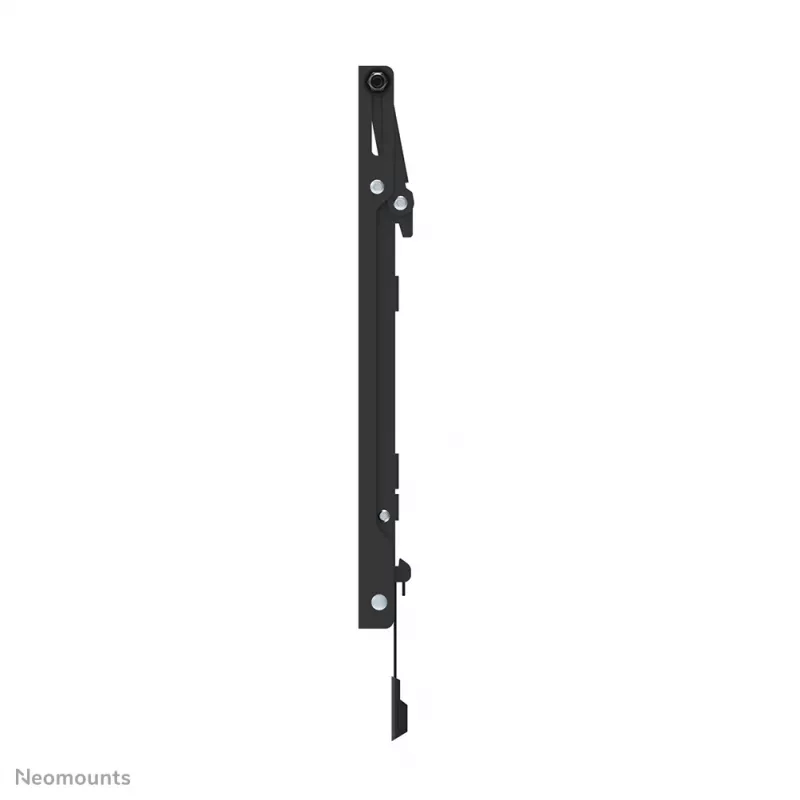

• Wall distance: 3.3 cm
• Color: Black
• Product weight: 1.45 kg

How to use

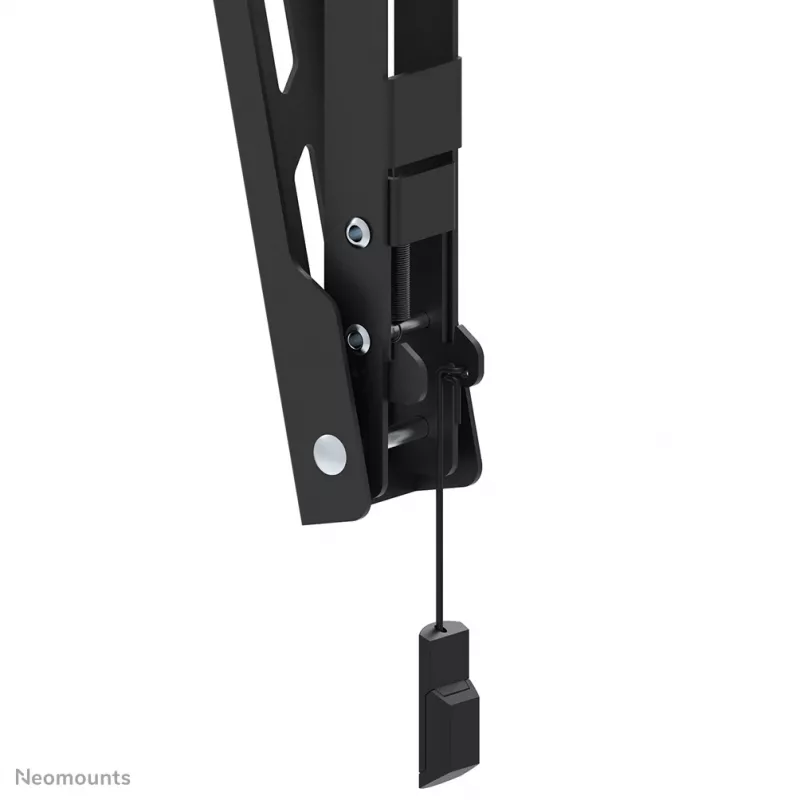

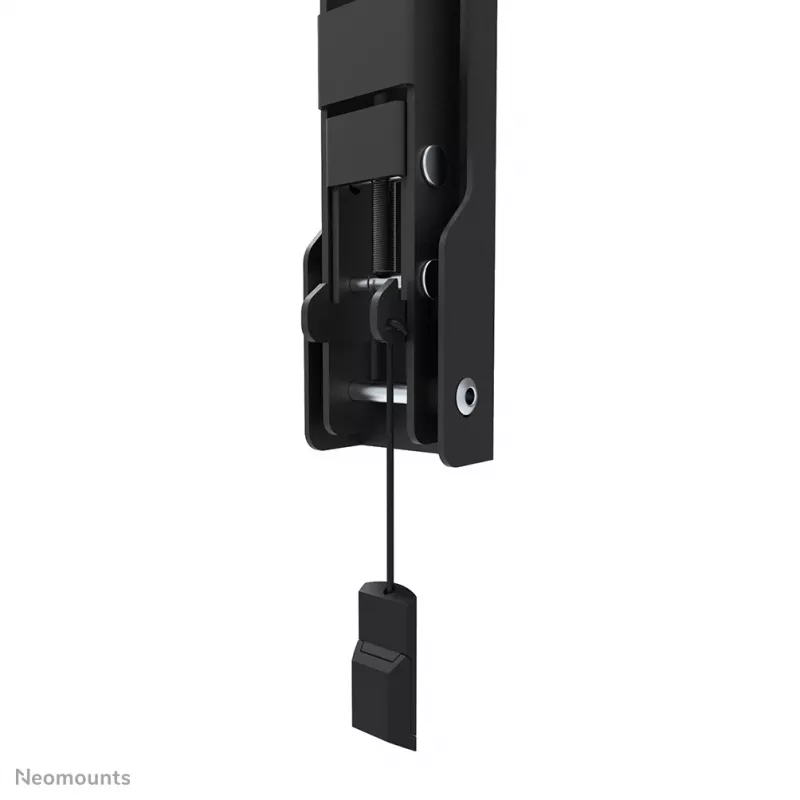

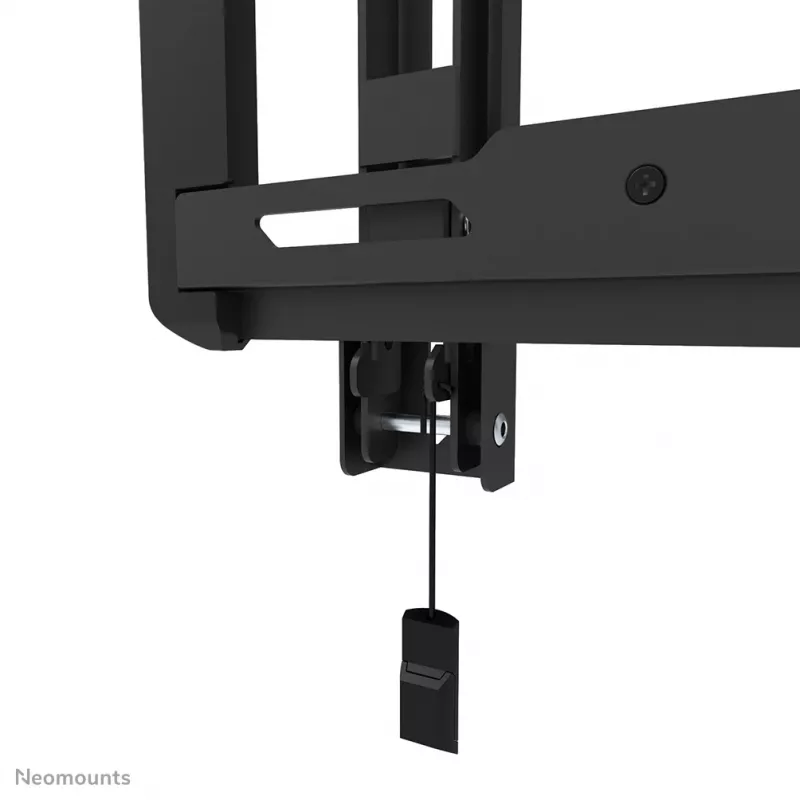

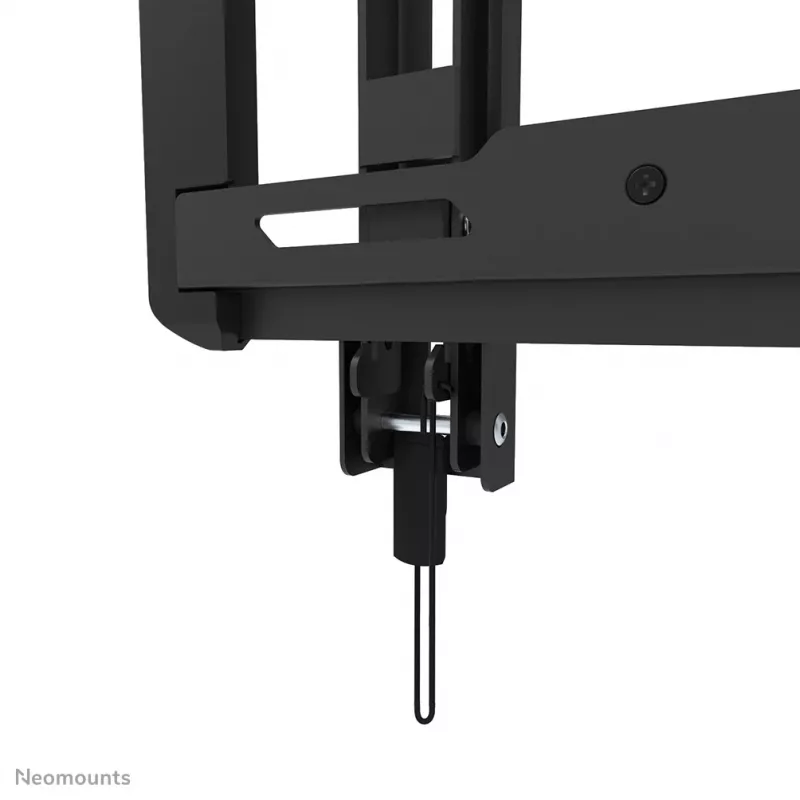

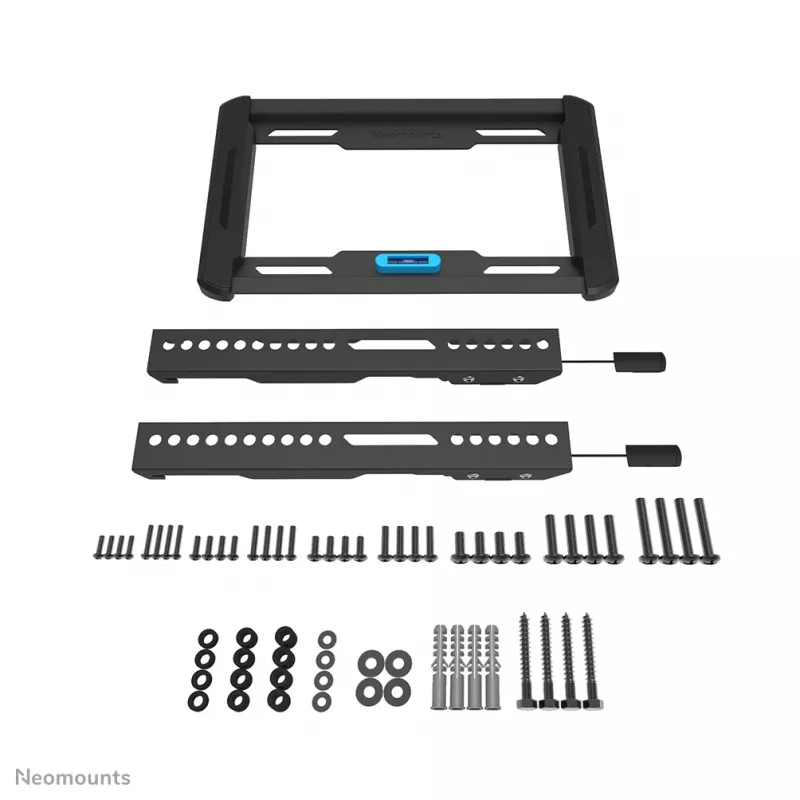

Mount the LEVEL bracket to a suitable wall surface using appropriate fixings for your wall type, using the integrated spirit level to ensure horizontal alignment. Attach the VESA plate to the back of the TV according to the screen's VESA pattern and lift the display onto the wall mount until the magnetic pull & release engages. To remove or adjust the TV, use the release straps and then click the straps' magnets to the mount so they remain hidden behind the screen.

Recommendations

Verify the TV weight and VESA pattern before installation, and use wall fixings suitable for the wall material and the 40 kg maximum load. If unsure, consult a professional installer.
