TV-teline Reflecta 23112 101,6 cm (40 tuumaa) musta

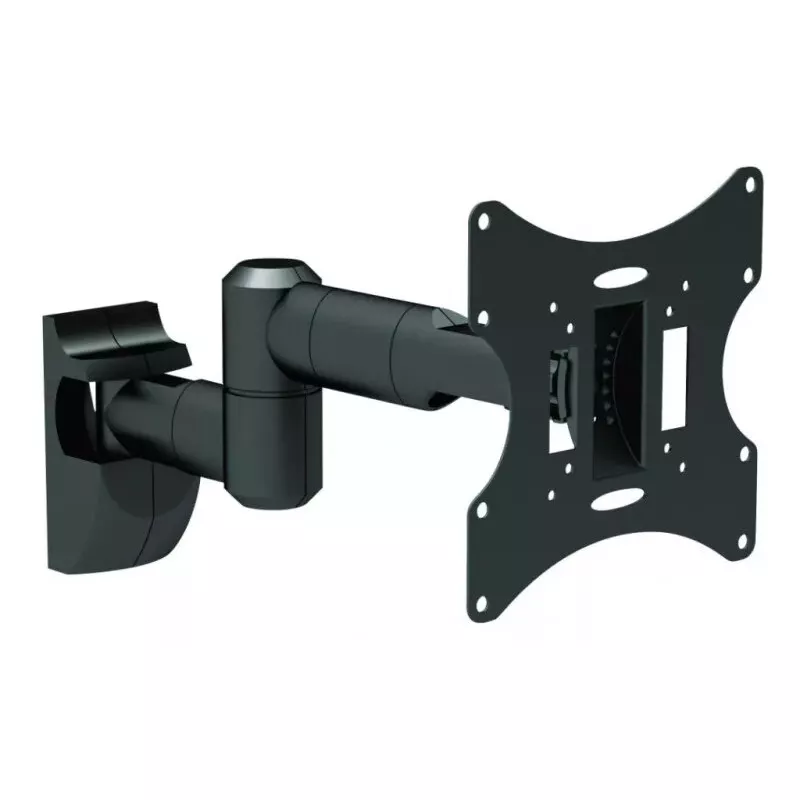

The REFLECTA 23112 is an economy pivoting wall mount designed for flat-panel TVs from 25.4 cm (10") up to 101.6 cm (40") and a maximum weight of 30 kg. The mount has a simple, sturdy construction with a full decorative cover that conceals cables inside the arm. It supports common VESA patterns from 75×75 mm up to 200×200 mm and provides tilt and swivel adjustment to improve viewing angles.

Advantages

The mount offers a compact and cost-effective solution for wall mounting a single TV up to 30 kg. Its arm hides cables for a neater installation, while adjustable tilt (−20° to 20°) and rotation (up to 90°) allow flexible positioning. VESA compatibility across a wide range of sizes ensures fit for many common TV models.

Suitable for

• Mounting 10"–40" flat-panel TVs
• Rooms where a low-cost, space-saving wall mount is needed
• Installations requiring cable concealment inside the mount arm
• Displays with VESA patterns 75×75, 100×100, 200×100, or 200×200 mm

Key specifications

• Brand: REFLECTA
• Model / MPN: 23112
• Supported screen size: 25.4–101.6 cm (10"–40")
• Maximum weight capacity: 30 kg
• VESA compatibility: 75×75, 100×100, 200×100, 200×200 mm
• Tilt range: −20° to 20°
• Rotation (swivel): up to 90°
• Colour: Black

How to use

Attach the mounting bracket to the TV using screws that match the TV’s VESA holes, then fasten the wall plate securely to a suitable wall surface following the included instructions and local building regulations. Route cables through the decorative cover and arm to keep them concealed. Adjust tilt and swivel to the desired viewing angle and tighten adjustment points to lock the position.

Recommendations

The mount is intended for indoor use on solid walls or studs; do not exceed the 30 kg weight limit. Verify VESA compatibility and use appropriate fixings for the wall material. For safety, consider professional installation if unsure about mounting or wall construction.
