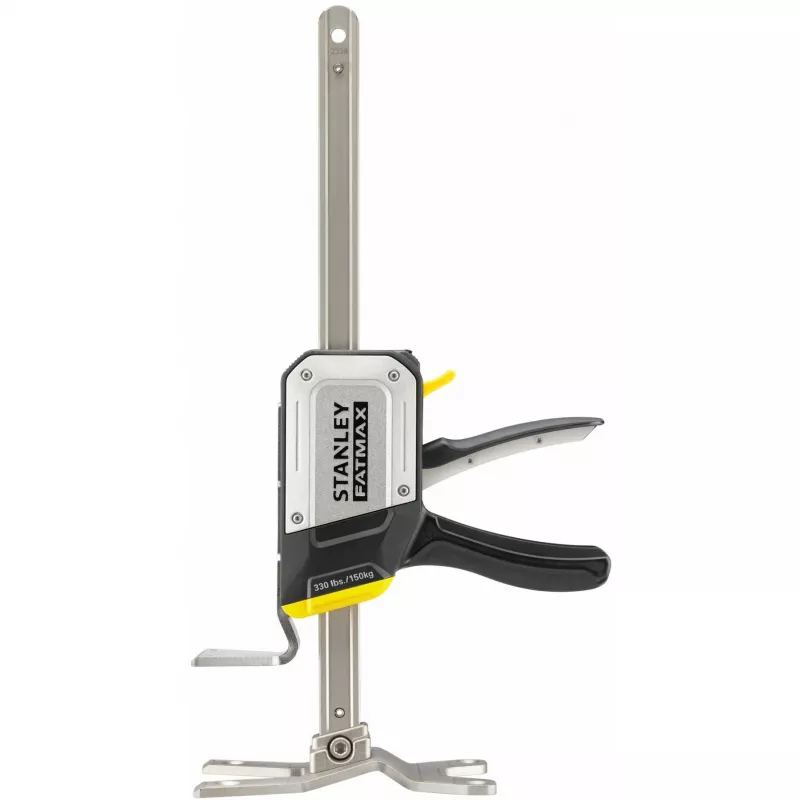

The STANLEY® FATMAX® TradeLift™ Twin-Pack contains two heavy-duty lifting tools designed for lifting, holding, levelling and spreading heavy or awkward objects such as windows, doors, cabinets and appliances. Each TradeLift™ provides up to 150 kg of lifting force and offers a total lifting capacity from 7 to 220 mm, enabling a single person to perform installation and adjustment tasks safely and precisely. The unit is built with an enclosed metal plate housing for durability and to reduce dust ingress.

Advantages

The TradeLift™ enables hands-free lifting and fine adjustment, reducing the need for extra personnel on site. Its reinforced push-down lever can be operated by hand or foot for easier handling of heavy items, while an ergonomic overmoulded handle improves grip and control. A recessed full-release button prevents accidental activation and the large base plate with an angled edge slides under low objects to minimise tipping risk. Four countersunk screw holes allow secure anchoring for stable operation.

Key specifications

• Maximum lifting force: up to 150 kg
• Lifting capacity (stroke): 7–220 mm
• Fine adjuster: lowers load by up to 2.5 mm per toggle
• Operation: hand or foot (hands-free possible)
• Base plate: large plate with angled edge
• Mounting: four countersunk screw holes for anchoring
• Housing: enclosed metal plate to prevent dust ingress
• Handle: ergonomic overmould for improved grip and comfort

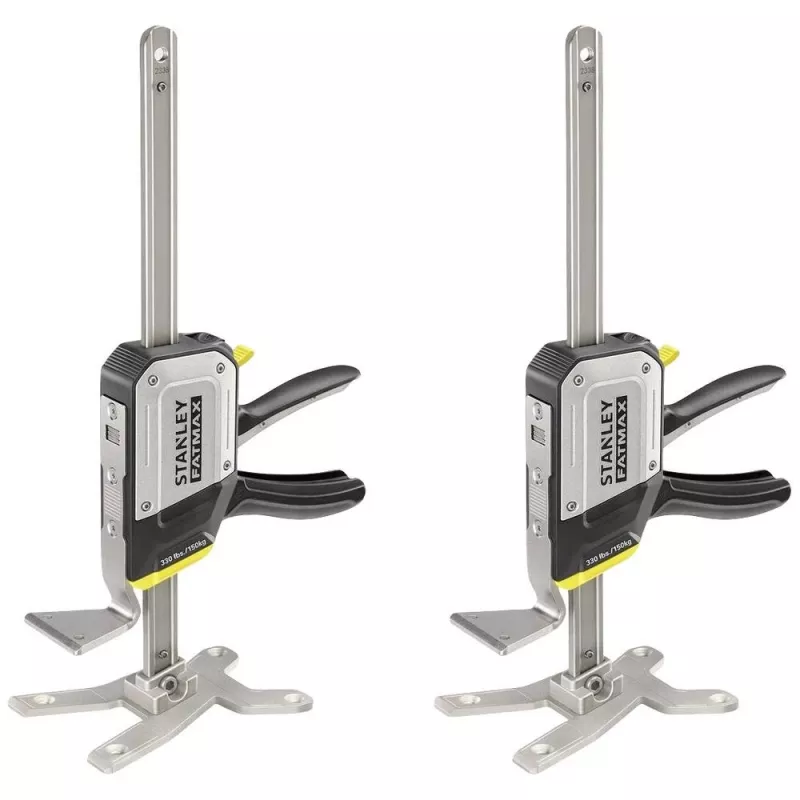

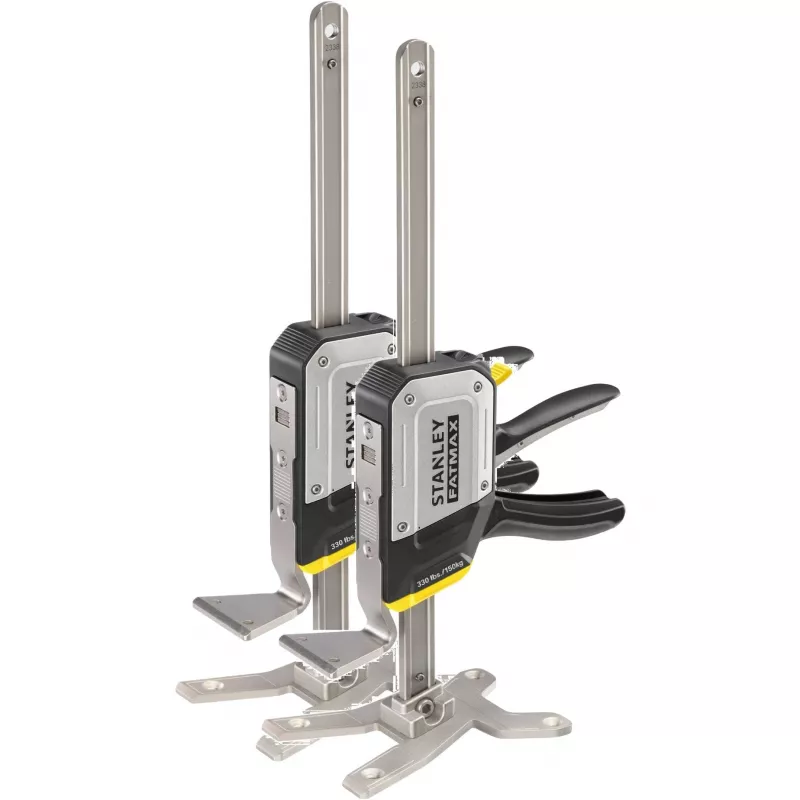

• Pack contents: two TradeLift™ tools (Twin-Pack)

How to use

Position the angled edge of the base plate under the object to be lifted and ensure the base is stable. Operate the reinforced push-down lever by hand or by foot to raise the load to the required height, using the fine adjuster to lower the lift plate in precise increments (up to 2.5 mm per toggle) for accurate levelling and spacing. Use the recessed full-release button to safely release the load when finished. For extended stability, fix the TradeLift™ to the substrate using screws in the countersunk holes.

Recommendations

Use the STANLEY® FATMAX® TradeLift™ Twin-Pack on flat, stable surfaces and check that the lifted object is properly supported before letting go. Do not exceed the stated maximum lifting force. For tasks requiring permanent anchoring, secure the base plate with appropriate screws through the countersunk holes. Store the tools in a dry environment to maintain the enclosed housing and moving parts.
