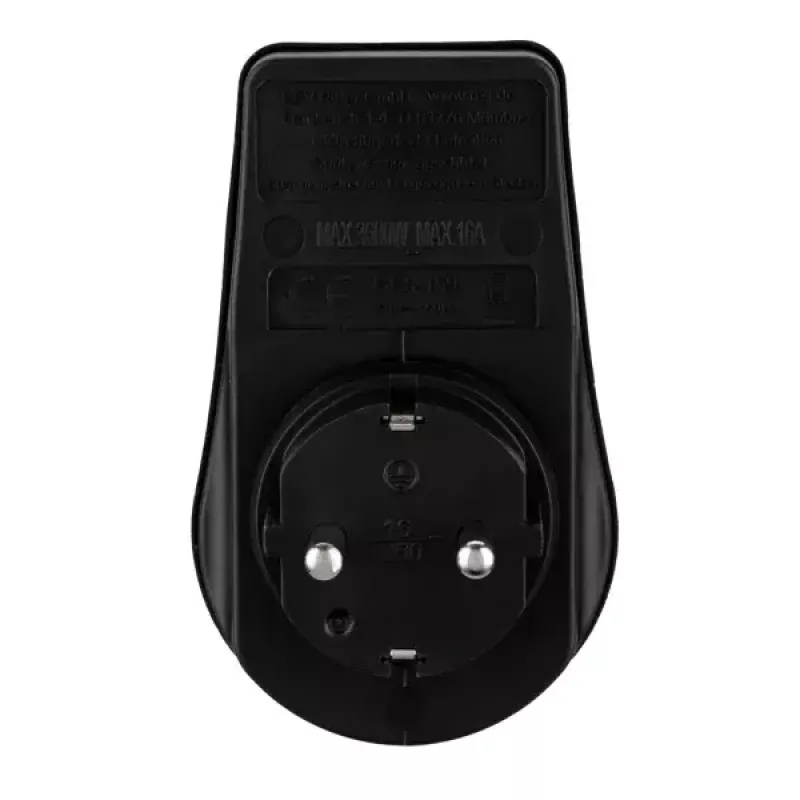

tyyppi F -pistorasia REV 20190502 musta

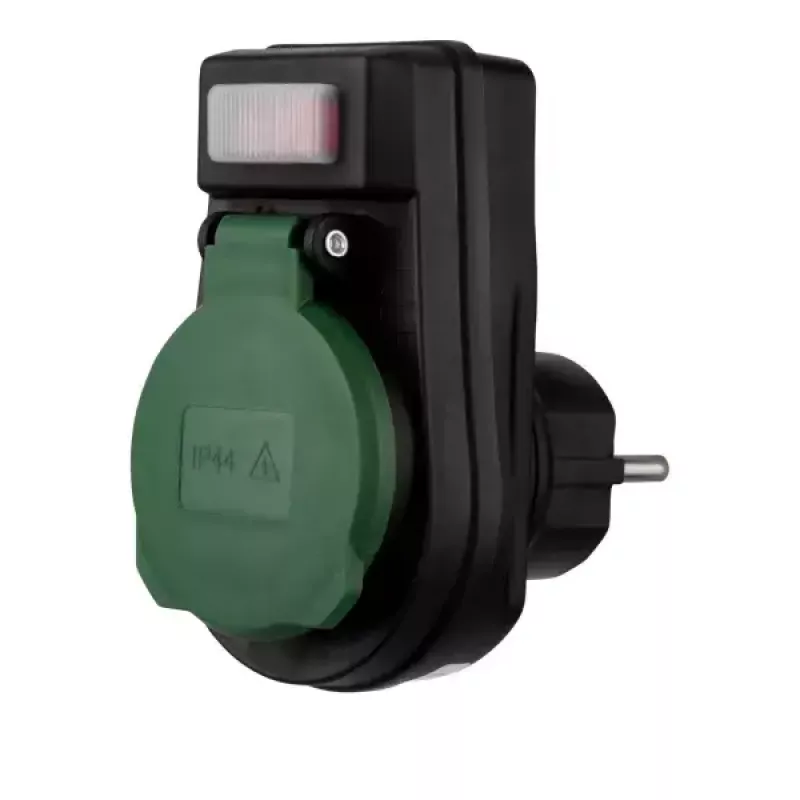

The REV 20190502 Socket outlet Type F in black is a surface-mounted electrical receptacle designed for mains use at 230 V and 16 A. Constructed from durable plastic and rated IP44, this Type F outlet protects against solid objects and water splashes, making it suitable for use in many indoor and sheltered outdoor locations. The compact footprint (60 mm width, 97 mm depth with a minimum installation depth of 85 mm) allows installation where space is limited. This model is supplied as a single unit and is compatible with standard Type F plugs.

Advantages

The socket combines an IP44 protection level with a durable plastic housing to offer basic environmental resistance without requiring specialized enclosures. Its 230 V / 16 A electrical rating matches common residential and commercial circuits. The compact dimensions reduce the need for deep mounting boxes, and the black colour provides a neutral, low-visibility finish that integrates into a variety of interiors. Lightweight construction (approximately 0.088 kg) simplifies handling and installation.

Suitable for

• Residential sockets in kitchens, bathrooms and utility rooms where IP44 protection is needed
• Commercial premises such as offices, workshops and retail where standard Type F outlets are required
• Sheltered outdoor locations such as covered terraces or entryways where splash protection is beneficial

Key specifications

• Type: Type F socket outlet
• Rated voltage: 230 V
• Rated current: 16 A
• Rated frequency: 50 Hz
• Ingress protection: IP44 (splash and dust protection)
• Material: durable plastic housing
• Colour: black
• Dimensions: 60 mm width, 97 mm depth (minimum 85 mm installation depth)
• Weight: approx. 0.088 kg

How to use

Install the REV 20190502 socket outlet according to local electrical codes and manufacturer installation instructions. Ensure the power supply is switched off before commencing installation. Mount the unit on a suitable surface, confirming the minimum installation depth of 85 mm is available for secure wiring. Connect line, neutral and earth conductors to the corresponding terminals, tighten terminal screws to the specified torque, and verify protective earth continuity. After wiring, restore power and test the outlet with appropriate test equipment to confirm correct operation and grounding.

Recommendations

Use this Type F outlet in applications matching its IP44 rating; avoid exposing it to direct jets of water or fully outdoor, unprotected environments. For wet or heavily exposed locations, choose a higher IP-rated enclosure. Periodically inspect the socket for signs of wear, damage or loose connections and switch off power before performing maintenance.
