RS485 Modbus -tiedonsiirtokortti Unit U-Modbus-Card sarjaliitäntään ja protokollaintegrointiin

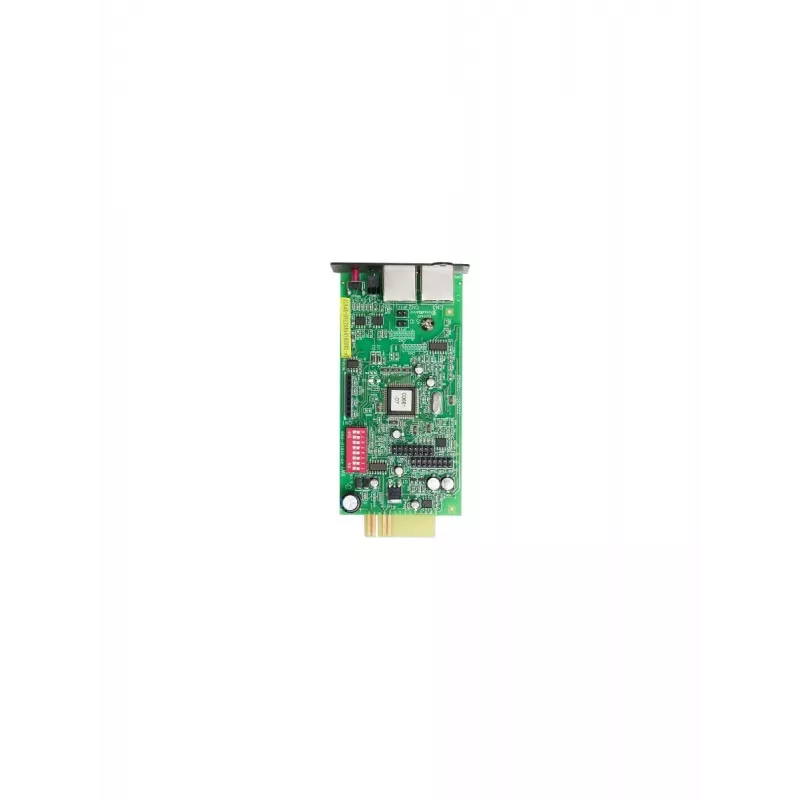

Unit U-Modbus-Card is an RS485 Modbus communication card designed to add serial Modbus connectivity to compatible devices and controllers. The card supports Modbus RTU communication over a two-wire RS485 interface, enabling data exchange, monitoring and control within automation systems. It is intended to simplify integration of equipment that uses Modbus protocol by providing a compact communication interface for serial networks and multi-drop topologies.

Advantages

The Unit U-Modbus-Card provides a standardized RS485 interface for reliable serial communication, reducing the need for custom protocol converters. Its Modbus RTU compatibility enables straightforward integration with many industrial controllers, PLCs and SCADA systems. The card’s compact design allows installation inside cabinets or on device PCBs, helping to streamline wiring and minimize space consumption. By using a common protocol and physical layer, the card facilitates interoperability and easier system maintenance.

Suitable for

• Integration of controllers, meters and sensors into Modbus RTU networks
• Data acquisition and monitoring in building automation and industrial control
• Expanding legacy equipment with serial Modbus connectivity
• Control and supervisory communication with PLCs or SCADA systems

Key specifications

• Interface: RS485 two-wire differential serial link
• Protocol compatibility: Modbus RTU
• Transmission: Asynchronous serial communication
• Topology: Multi-drop network support
• Mounting: Compact card form factor for internal installation
• Environment: Designed for use in automation and control enclosures

How to use

Install the Unit U-Modbus-Card into the compatible host device or enclosure following the manufacturer’s mechanical and electrical interface guidelines. Connect the RS485 A/B differential pair to the network bus, ensuring proper termination and biasing where required by the installation. Configure the host device or controller to use Modbus RTU settings (baud rate, parity, data bits, stop bits) that match other nodes on the bus. Verify addressing and polling parameters so the card communicates with the correct master or slave devices.

Recommendations

For dependable communication, use twisted-pair shielded cable for the RS485 bus, observe recommended termination and bias resistor placement, and avoid routing the bus next to high-voltage or noisy power lines. Confirm matching serial settings across devices and test the network with a known Modbus master to validate data exchange before commissioning.
