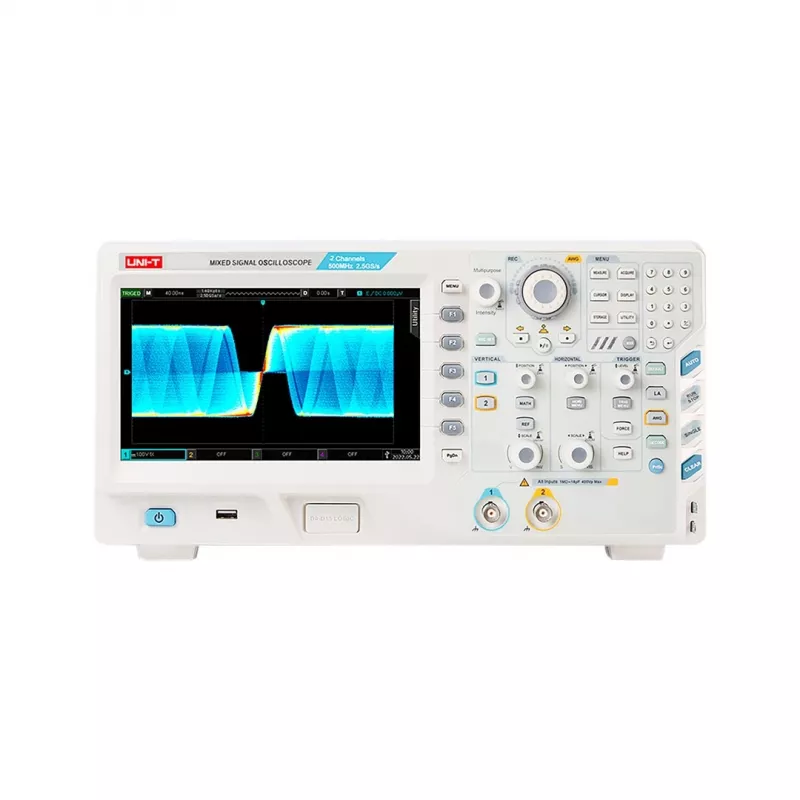

UNI-T UPO3352E oskilloskooppi 350 MHz 2-kanavaa 2.5 GSa/s

The UNI-T UPO3352E is a high-performance digital oscilloscope offering 350 MHz bandwidth and 2 analog channels. With a real-time sample rate of 2.5 GSa/s (single channel) and a deep memory of 250 Mpts, it captures detailed waveforms for advanced analysis. The 8-inch TFT LCD display with 800x600 resolution provides clear visualization. Ideal for professional engineers and technicians in R&D, education, and service.

Advantages

High bandwidth and sample rate enable precise measurement of fast signals. Large memory depth allows long-duration captures. Extensive trigger and decoding options simplify serial bus analysis. Robust connectivity with USB and LAN interfaces.

Suitable for

• Embedded system design and debugging
• Power electronics analysis
• Automotive electronics testing
• Educational laboratories

Key specifications

• Bandwidth: 350 MHz
• Analog Channels: 2
• Real-time Sample Rate: 2.5 GSa/s (single channel), 1.25 GSa/s (dual channel)
• Memory Depth: 250 Mpts (single channel), 125 Mpts (dual channel)
• Waveform Capture Rate: 1,000,000 wfms/s (segmented acquisition)
• Display: 8-inch TFT LCD, 800x600 pixels
• Vertical Resolution: 8-bit
• Vertical Sensitivity: 1 mV/div to 20 V/div
• Time Base Range: 1 ns/div to 1000 s/div
• Input Impedance: 1 MΩ ±1% || 18 pF ±3 pF
• Rise Time: <1.1 ns
• Trigger Types: Edge, Pulse, Runt, Window, Nth Edge, Delay, Timeout, Setup/Hold, Slope, Video, Code, Duration, Sequence
• Interface Ports: USB Host, USB Device, LAN, AUX Out
• Measurement Functions: 34 automatic measurements
• Serial Bus Decoding: RS232/UART, I2C, SPI, CAN, LIN
• Power Supply: 100-240 V AC RMS, 50/60 Hz

Recommendations

For comprehensive signal analysis, pair with compatible probes and accessories. Ensure proper calibration for accurate measurements.
