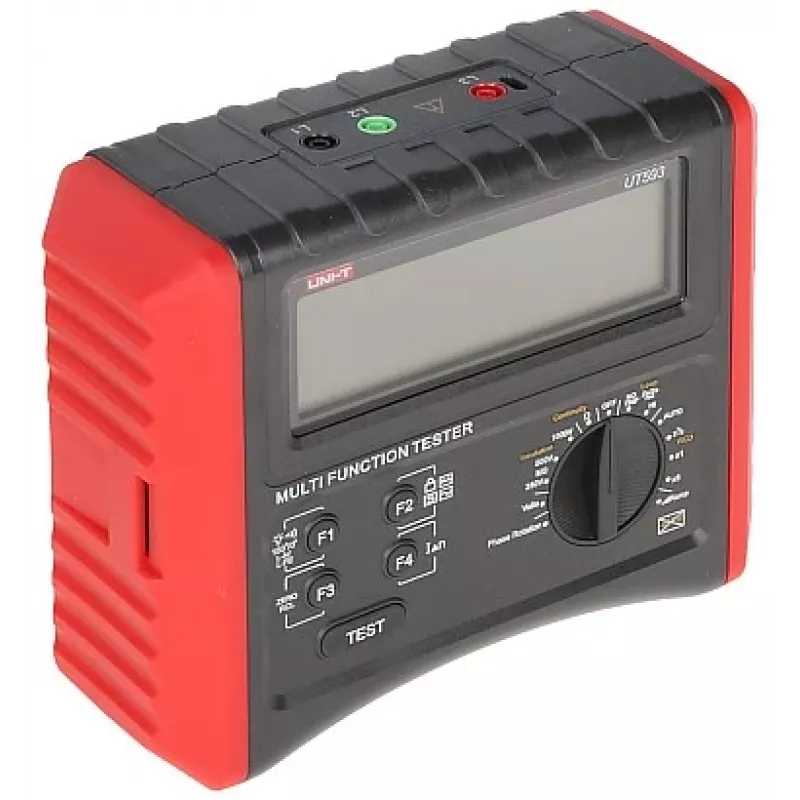

UNI-T UT-593 monitoiminen asennustesteri RCD-, silmukka-, eristys- ja jatkuvuustestauksella

The UNI-T UT-593 stands out as a comprehensive multifunction installation tester that consolidates essential electrical safety verifications into a single, portable instrument. Unlike basic socket testers or single-function meters, it performs insulation resistance, RCD trip time, loop impedance, continuity, voltage, frequency, and phase rotation tests—making it ideal for professional electricians certifying installations to IEC 61557 standards.

Highlights

• Insulation testing at 50V, 100V, 250V, 500V, and 1000V with resistance up to 1000 MΩ
• RCD testing for AC, A, and F types at 10mA to 1000mA, including ramp and trip time measurement
• Loop/line impedance from 0.01Ω to 2000Ω with prospective fault current up to 23kA
• Continuity testing with >200mA current for reliable low-resistance checks
• Phase rotation indication and AC voltage/frequency measurement
• CAT III 600V / CAT IV 300V safety rating for demanding environments
• Stores 1000 test results and connects to PC via USB for reporting

In daily use

On site, the UT-593 accelerates verification routines. The backlit LCD remains readable in dim distribution boards, while the rotary selector and dedicated buttons reduce menu diving. Its high-current continuity test ensures compliance with wiring regulations, and the RCD ramp test helps identify nuisance tripping. The internal memory and USB interface simplify documentation, replacing handwritten logs with digital records.

Full specifications

• Insulation test voltages: 50V, 100V, 250V, 500V, 1000V
• Max insulation resistance: 1000 MΩ
• RCD test currents: 10mA, 30mA, 100mA, 300mA, 500mA, 1000mA
• RCD types: AC, A, F
• RCD trip time: 0ms to 1000ms
• Loop/line impedance: 0.01Ω to 2000Ω
• Prospective fault current: up to 23kA
• Continuity test current: >200mA (for <10Ω)
• Continuity resistance range: 0.01Ω to 2000Ω
• AC voltage: 0V to 500V
• Frequency: 20Hz to 200Hz
• Phase rotation: yes
• Safety rating: CAT III 600V / CAT IV 300V
• Data storage: 1000 results
• PC connectivity: USB
• Display: LCD with backlight
• Power: 8 x 1.5V AA batteries
• Standards: IEC 61557, EN 61010-1

Final note

The UT-593 bridges the gap between basic testers and high-end analyzers, offering certified accuracy and robust features at a practical price point. For electricians who need reliable, repeatable installation testing without complexity, this instrument delivers consistent performance in the field.
