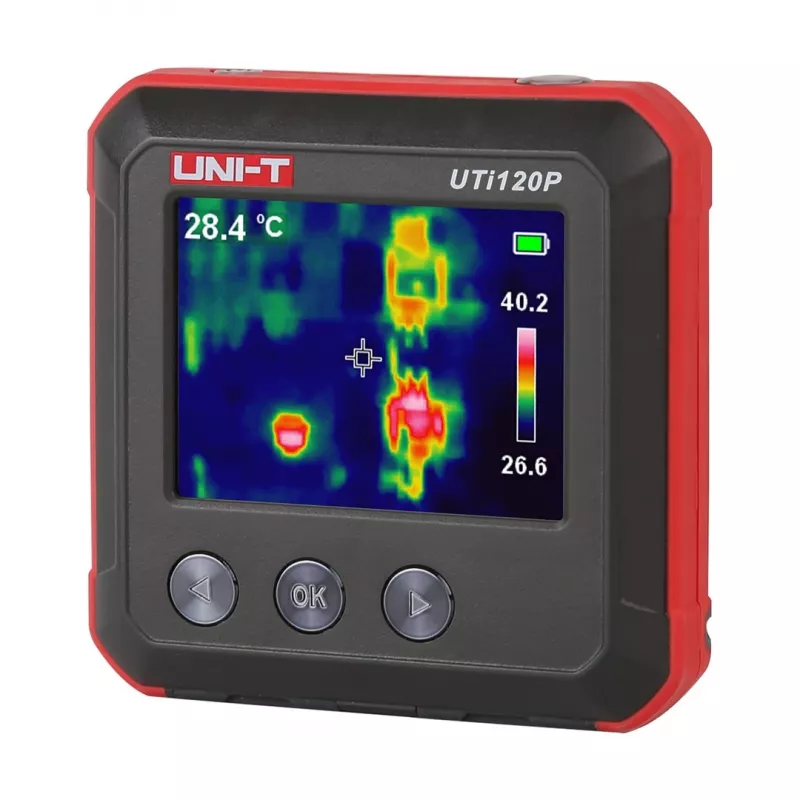

UNI-T UTi120P lämpökamera

The UNI-T UTi120P is a compact and rugged handheld thermal imaging camera designed for professional diagnostics, electrical inspections, and building maintenance. With a 120x90 pixel infrared resolution and a wide temperature range from -20°C to 400°C, it delivers accurate thermal data for identifying hot spots, insulation defects, and mechanical faults. The device features a 2.8-inch LCD display, adjustable emissivity, and multiple measurement modes including center spot and high/low temperature tracking. Its IP54 rating and 2-meter drop test certification ensure durability in demanding environments. The included 16GB SD card provides ample storage for BMP images, while USB Type-C connectivity enables easy data transfer. With a battery life exceeding 9 hours, the UTi120P is a reliable tool for extended fieldwork.

Advantages

High thermal sensitivity (NETD <60mK) for precise temperature difference detection. Wide field of view (50° x 38°) covers large areas efficiently. Built-in laser pointer and LED flashlight aid in target identification and low-light operation. Lightweight and ergonomic design for comfortable one-handed use.

Suitable for

• Electrical panel and circuit board inspections
• HVAC system diagnostics
• Building envelope and insulation analysis
• Mechanical equipment monitoring
• Predictive maintenance and quality control

Key specifications

• Infrared Resolution: 120 x 90 pixels
• Temperature Range: -20°C to 400°C (-4°F to 752°F)
• Accuracy: ±2°C or ±2% (whichever greater)
• Thermal Sensitivity (NETD): <60mK
• Frame Rate: 25Hz
• Field of View: 50° x 38°
• Display: 2.8-inch LCD, 320 x 240 pixels
• Emissivity Adjustment: 0.01 to 0.99
• Storage: 16GB SD Card (included)
• Image Format: BMP
• Connectivity: USB Type-C
• Battery Life: >9 hours
• IP Rating: IP54
• Drop Test: 2 meters
• Spectral Range: 8-14μm
• Measurement Modes: Center spot, high/low temperature tracking
• Temperature Units: Celsius, Fahrenheit
• Laser Pointer: Yes
• LED Flashlight: Yes

Recommendations

For optimal results, ensure the target's emissivity is set correctly. Use the laser pointer to pinpoint specific areas. Regularly charge the battery to maintain long field operation. The included wrist strap provides added security during use.
