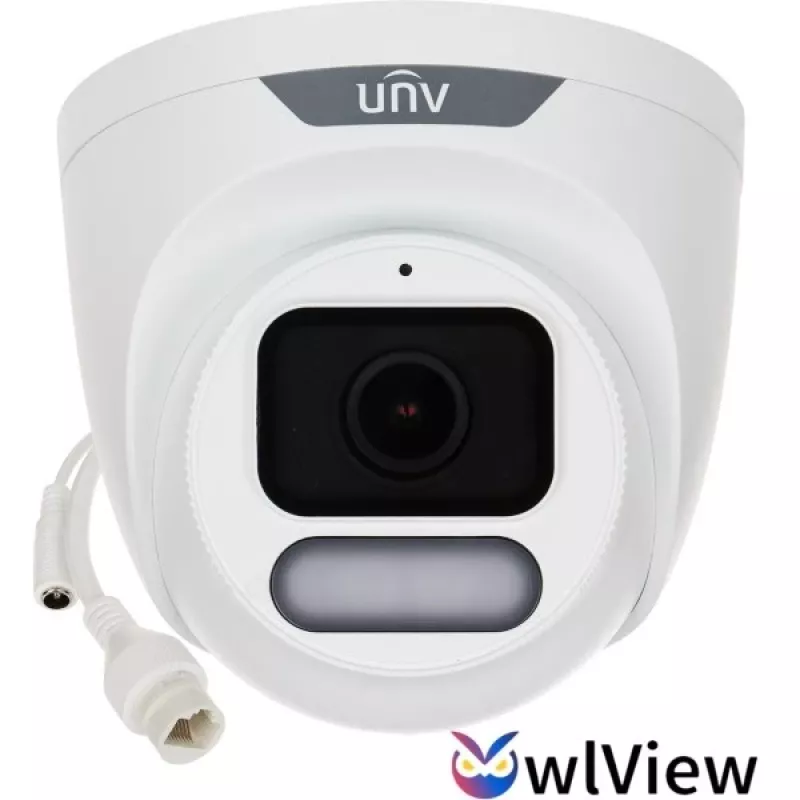

UNIVIEW IPC3626LE-ADF28K-WP IP-kamera OwlView Wise-ISP 6 Mpx 2,8 mm

The UNIVIEW IPC3626LE-ADF28K-WP is a high-performance 6 Megapixel mini bullet IP camera from the OwlView series, featuring Wise-ISP technology and AcuSense intelligent analytics. Designed for outdoor surveillance, it delivers crisp 3200x1800 resolution at 20 fps with exceptional low-light performance and 120 dB true WDR. The 2.8 mm fixed lens provides a wide 107° horizontal field of view, making it ideal for monitoring entrances, corridors, and open areas.

Advantages

Equipped with AcuSense human and vehicle target classification, this camera significantly reduces false alarms by filtering out irrelevant motion. The 120 dB WDR ensures clear images in high-contrast scenes, while the 0.005 Lux minimum illumination captures color details even in near darkness. With IP67 weatherproof housing and an operating temperature range of -30 °C to 60 °C, it performs reliably in harsh environments. Power flexibility via 12 VDC or PoE (802.3af) simplifies installation.

Suitable for

• Perimeter surveillance of commercial buildings and warehouses
• Parking lot and entrance monitoring
• Retail store and office security
• Outdoor perimeter protection for residential properties

Key specifications

• Sensor: 1/2.8" Progressive Scan CMOS, 6 Megapixel (3200x1800)
• Lens: 2.8 mm fixed focal, F1.6, FoV: H: 107°, V: 57°, D: 128°
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: 20 fps @ 3200x1800
• Night Vision: IR cut filter, IR range up to 30 m
• Minimum Illumination: Color 0.005 Lux @ F1.6, AGC ON
• WDR: 120 dB
• Noise Reduction: 3D DNR
• Smart Features: AcuSense (human/vehicle classification), motion detection, line crossing, intrusion detection
• Storage: microSD/SDHC/SDXC slot, up to 256 GB
• Network: 1x RJ45 10/100 Mbps Ethernet
• Power: 12 VDC, PoE (802.3af), max 6.5 W
• Ingress Protection: IP67
• Operating Temperature: -30 °C to 60 °C
• Housing Material: Metal
• Form Factor: Mini Bullet

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is Class 10 or UHS-I for reliable recording. Mount the camera at a height of 2.5-3 meters for best coverage.
