Upotusasennusrasia Fanvil EX102

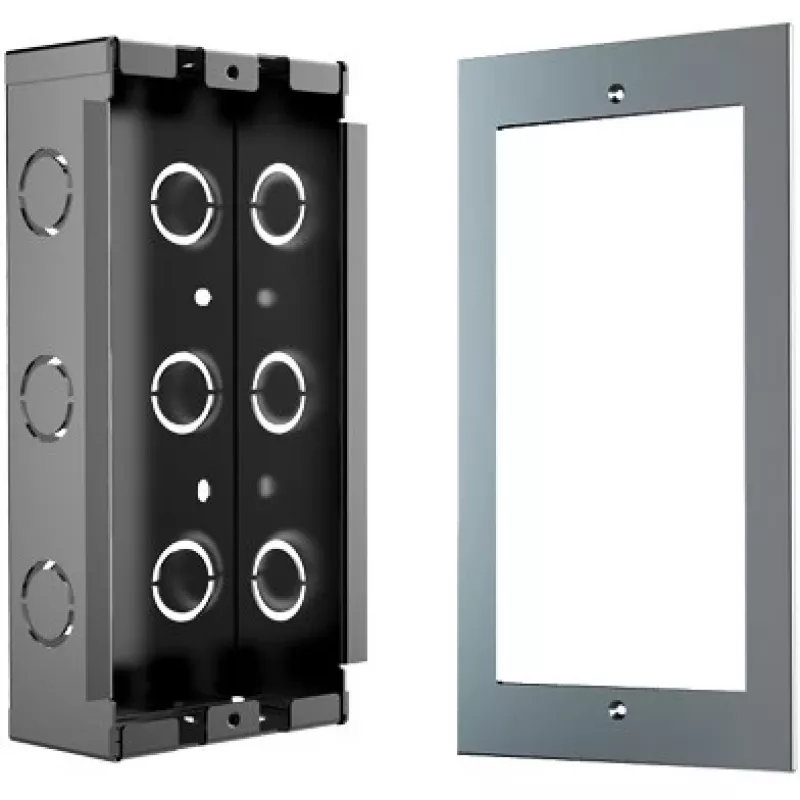

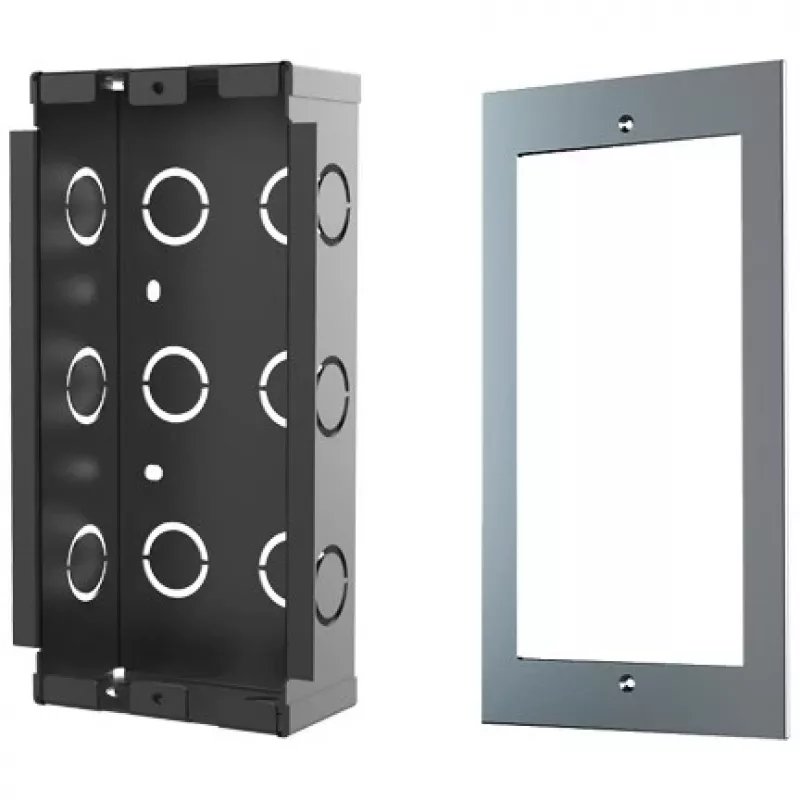

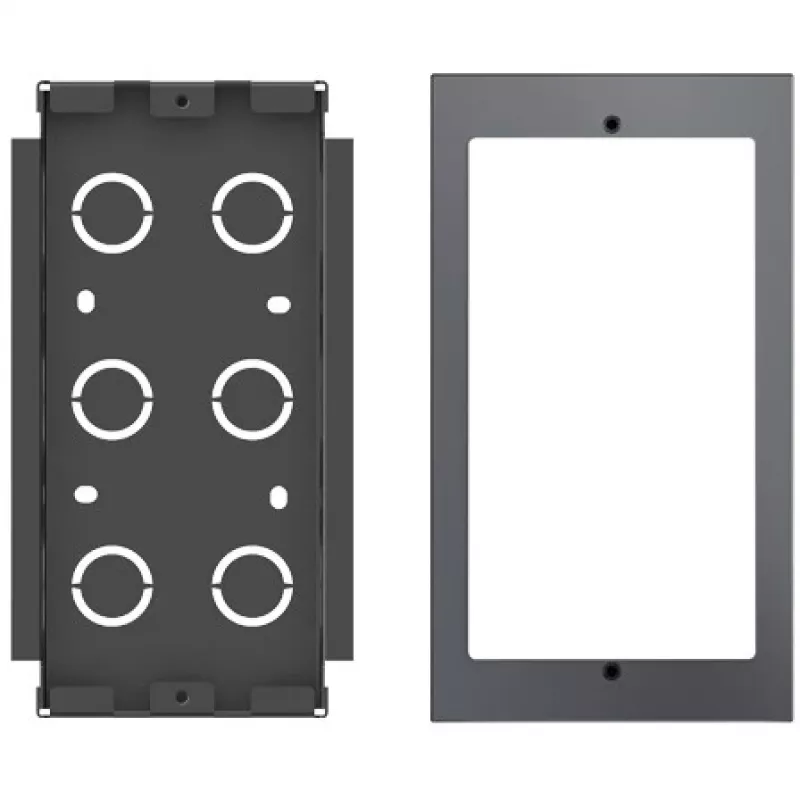

The Fanvil EX102 flush mount box is an optional accessory for mounting Fanvil EX102 door phones flush with the installation surface. It includes a frame panel and a brick box designed to simplify installation, save space and provide a neat, professional appearance while supporting the intercom hardware.

Advantages

The flush mount box offers a compact solution that keeps the EX102 unit securely fixed and protected. Its durable construction and black finish maintain a consistent look with the door phone and reduce visible cabling. The included frame panel and brick box speed up installation and help achieve a tidy, low-profile fit.

Suitable for

• Flush mounting Fanvil EX102 door phones into walls or panels
• Installations requiring a neat, low-profile intercom appearance
• Retrofit or new construction projects where space-saving mounting is needed

Key specifications

• Compatibility: Fanvil EX102
• Included parts: frame panel and brick box
• Finish: black

How to use

Prepare an opening in the wall or panel to the dimensions suitable for the brick box, insert the brick box into the opening and secure it as required by the installation surface. Attach the frame panel and then mount the Fanvil EX102 door phone into the frame, making the necessary electrical and network connections according to the EX102 installation manual.

Recommendations

Verify compatibility with the Fanvil EX102 model before installation, follow local building and electrical codes, and refer to the Fanvil EX102 manual for detailed wiring and mounting instructions. Use appropriate tools and sealing where needed to maintain weather resistance if installed outdoors.
