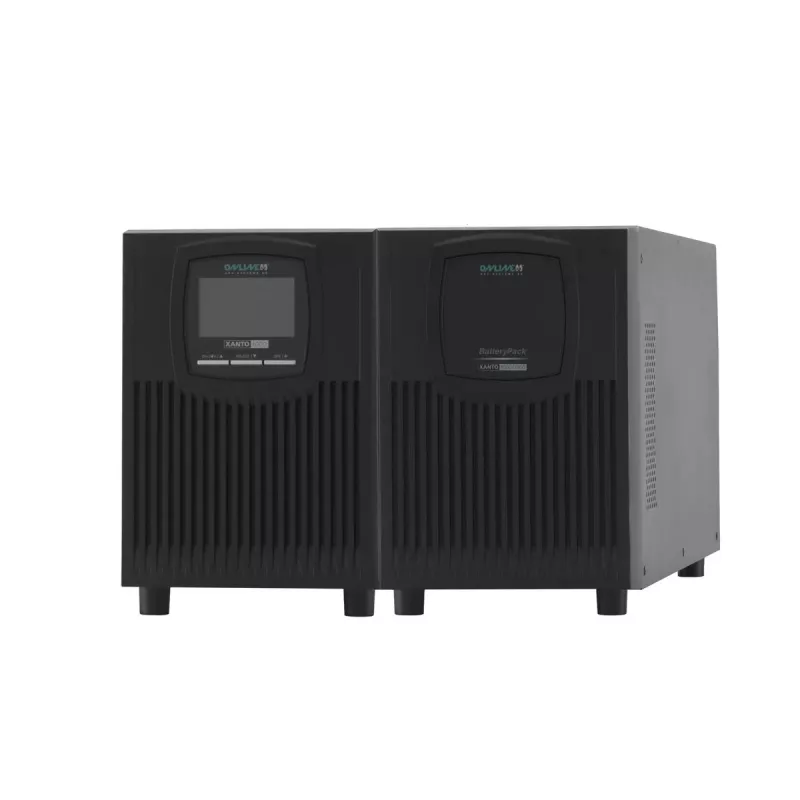

UPS-akkukaappi Tower ONLINE USV-Systeme X1000BP

The ONLINE USV-Systeme X1000BP is a tower UPS battery cabinet designed as an external backup battery for compatible UPS models. With a nominal capacity of 9 Ah and compact dimensions of 158 mm (W) x 397 mm (D) x 238 mm (H), this black battery cabinet extends runtime for critical equipment and fits into environments where space is limited. It is intended for use with ONLINE USV-Systeme XANTO 1000 and XANTO 1500 UPS units and provides an integrated solution for maintaining power continuity during outages.

Advantages

The X1000BP offers a straightforward way to increase backup time without changing the primary UPS. Its small footprint and tower form factor make installation flexible in racks, cabinets, or on the floor beside the UPS. The matched compatibility with XANTO series models ensures electrical and mechanical fit, while the enclosed design protects the battery cells from dust and incidental contact. The black finish provides a discreet appearance in office, server room or telecommunication environments.

Suitable for

• Extending runtime for ONLINE USV-Systeme XANTO 1000 UPS
• Extending runtime for ONLINE USV-Systeme XANTO 1500 UPS
• Small server rooms and network closets with limited floor space
• Workstations, point-of-sale systems and communication equipment requiring additional backup

Key specifications

• Battery type: sealed lead-acid (maintenance-free)
• Nominal capacity: 9 Ah
• Form factor: tower battery cabinet
• Dimensions (W x D x H): 158 mm x 397 mm x 238 mm
• Color: black
• Intended compatibility: designed for use with XANTO 1000 and XANTO 1500 UPS models

How to use

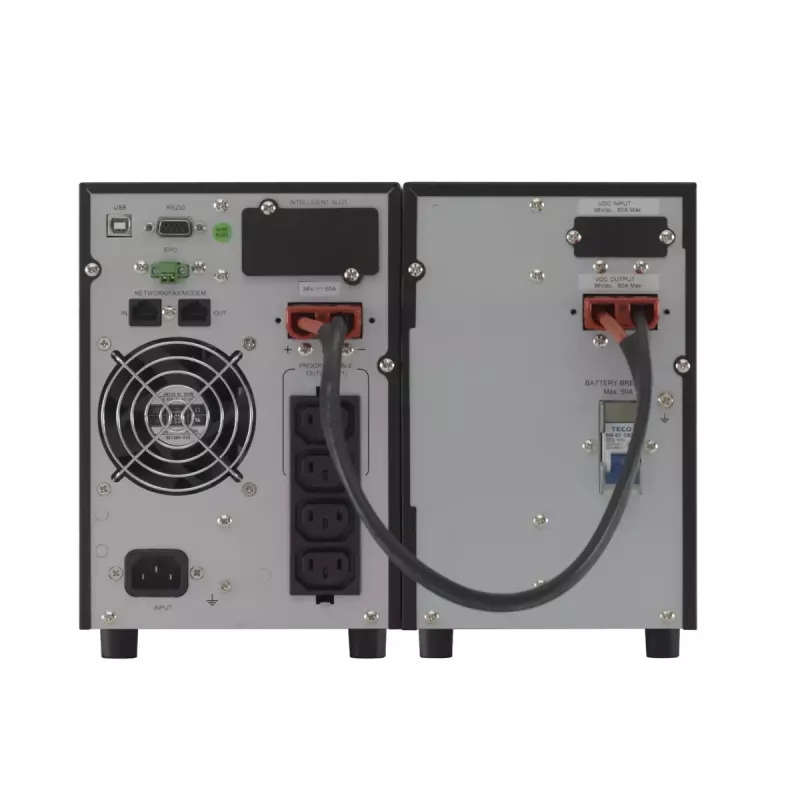

Install the X1000BP adjacent to the compatible XANTO UPS following the UPS manufacturer’s installation instructions. Power down connected equipment if the UPS manual requires it, then connect the battery cabinet to the UPS using the provided connection cable or connector. Ensure secure mechanical placement on a stable surface and allow sufficient ventilation around the cabinet. After connection, verify that the UPS recognizes the additional battery unit and confirm extended runtime through the UPS status indicators or monitoring software.

Recommendations

Store and operate the battery cabinet in a dry, temperature-controlled environment within the temperature range recommended by the UPS manufacturer. Periodically check the battery connections and UPS diagnostics to ensure proper charging and condition. Replace the battery units according to the lifecycle guidance provided by the UPS documentation to maintain reliable backup performance.
