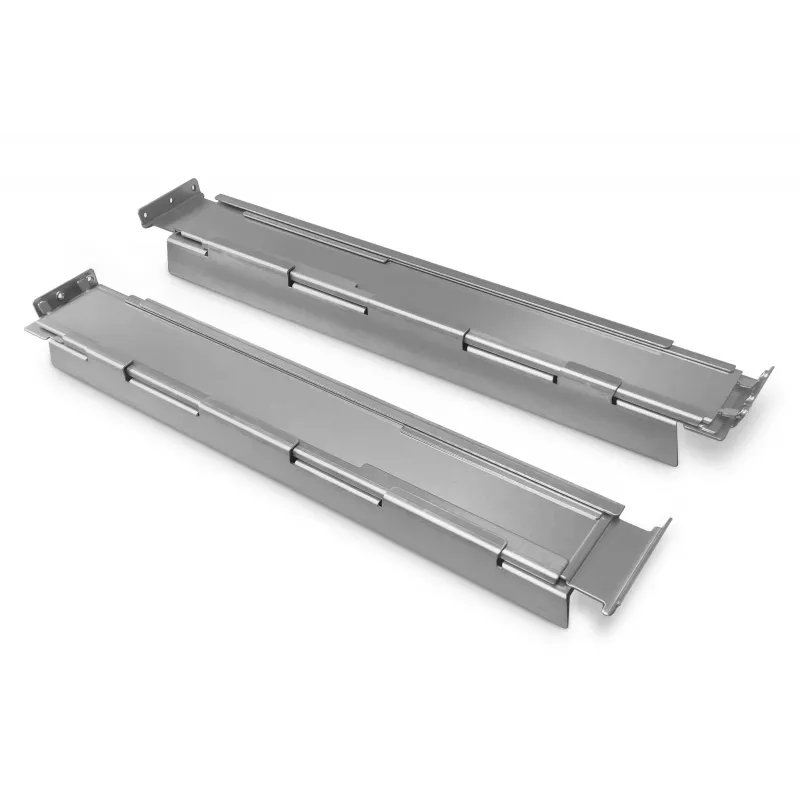

UPS-asennussarja Digitus DN-170109

The Digitus UPS Mounting Kit DN-170109 provides a practical solution for installing compatible OnLine UPS systems into 19" (483 mm) network and server cabinets. It supports installation of DIGITUS® OnLine UPS models from 1K to 10K with a height of 2 or 3 rack units and is suitable for cabinet depths from 468.5 mm to 1000 mm. The kit is intended for mounting on the cabinet's 19" profile rails and has a robust silver finish, helping to secure and organize the UPS within the rack.

Advantages

The mounting kit is compatible with DIGITUS® 1K–10K OnLine UPS systems and enables secure installation on four 19" profile rails. It supports both 2U and 3U UPS heights and accommodates a wide range of cabinet depths, allowing flexible placement in most standard server and network cabinets. The kit is lightweight and finished in silver to match typical rack interiors.

Suitable for

• Mounting DIGITUS® OnLine UPS systems (1K–10K) in 19" server or network cabinets
• Installing UPS units with 2U or 3U rack height
• Cabinets with depths between 468.5 mm and 1000 mm

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-170109
• Compatibility: DIGITUS® OnLine UPS 1K–10K
• Supported rack units: 2U, 3U
• Suitable cabinet depth: 468.5 mm – 1000 mm
• Mounting: 19" (483 mm) profile rails, 4 rail attachment
• Product colour: Silver
• Dimensions (W×D×H): 68 mm × 469.5 mm × 85 mm
• Weight: 2.77 kg
• Country of manufacture: China

How to use

Position the mounting kit inside a compatible 19" cabinet and align it with the cabinet's 19" profile rails. Attach the kit to four profile rails following the cabinet and UPS manufacturer's mounting instructions. Slide the UPS unit into the kit, ensuring it occupies the correct 2U or 3U space and that depth is appropriate for the selected cabinet (468.5–1000 mm). Secure all fastenings and verify that the UPS is firmly supported before connecting power and load.

Recommendations

Install the kit and UPS according to the cabinet and UPS manufacturer's guidelines. Verify rail spacing and cabinet depth before installation, and use appropriate mounting hardware for a secure fit. For safety, perform installation with equipment powered off and follow local regulations for electrical installations.
