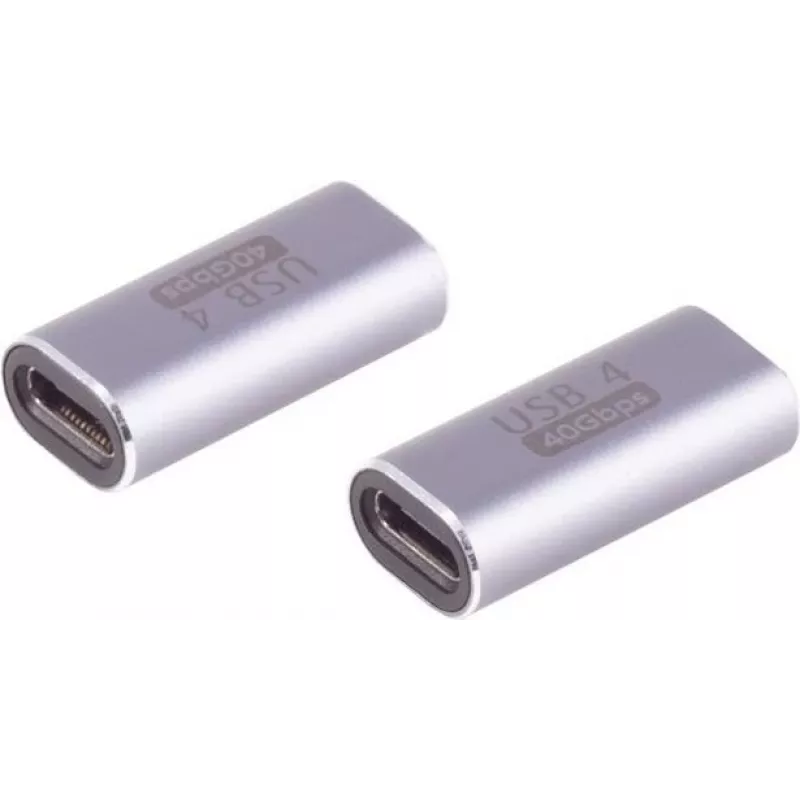

USB-C-pistoke ShiverPeaks 14-05038 40 Gbit/s metalli, suurnopeusdatan siirto

USB-C connector ShiverPeaks 14-05038 40Gbps metal, high-speed data transfer is a robust USB-C interface component designed for high-bandwidth connections up to 40 Gbps. The metal housing enhances mechanical durability and electromagnetic shielding, making it suitable for demanding setups where stable, high-rate data transfer is required. This connector is intended for integration with cables or devices that need a reliable USB-C port supporting video, data and power delivery functions at high throughput.

Advantages

The metal construction provides improved durability and EMI shielding compared to plastic connectors, reducing signal interference in crowded electronic environments. Support for up to 40 Gbps ensures compatibility with Thunderbolt 3/4 and other high-speed USB-C applications where sustained transfer rates are necessary. Compact USB-C form factor keeps compatibility with laptops, docking stations, external drives and monitors while enabling high-performance connections.

Suitable for

• External NVMe or SATA SSD enclosures requiring high transfer speeds
• Docking stations and hubs that aggregate video and data over USB-C
• Monitors and displays with USB-C input and alternate mode support
• Professional audio/video equipment and data capture devices
• High-performance peripherals and cable assemblies

Key specifications

• Connector type: USB-C reversible plug
• Maximum data rate: up to 40 Gbps
• Housing material: metal for enhanced durability and shielding
• Compatibility: supports high-speed USB-C modes (including Thunderbolt-class throughput)
• Intended use: for cable ends, device ports and assemblies requiring stable high-bandwidth links

How to use

Install the connector according to the mechanical and electrical design of the cable or device assembly, ensuring proper soldering or termination methods compatible with the connector's contacts and shielding. Verify correct orientation and secure the metal housing to the cable strain relief or device chassis to maintain connector alignment and EMI protection. After assembly, test data throughput and signal integrity with appropriate equipment to confirm up to 40 Gbps performance in the target configuration.

Recommendations

For best results, pair the connector with high-quality, shielded cable assemblies and devices rated for 40 Gbps operation. Avoid excessive bending near the connector, and follow ESD precautions during handling and assembly to protect the contacts and internal circuitry.
