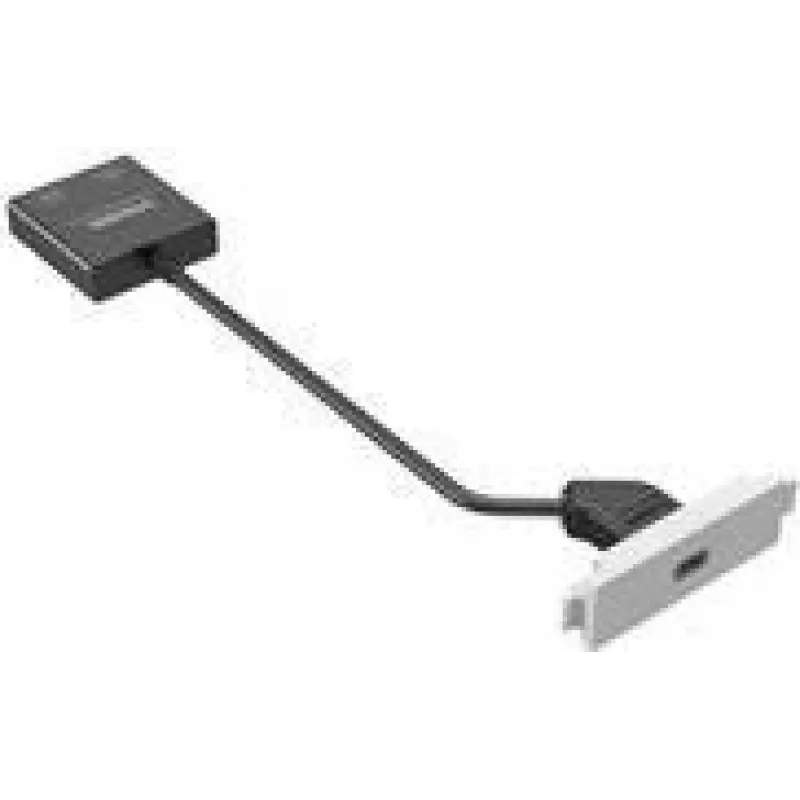

USB-C-pistorasia valkoinen Vision TC3 USB 3.2 Gen 1

This module is part of Vision's Techconnect connectivity faceplate family and provides a single USB-C connection on the front that splits into HDMI and USB at the rear. It separates the USB and display signals so users can connect a laptop with one USB-C cable to the AV faceplate while supporting longer cable runs to interactive displays. The module does not provide power delivery and cannot charge laptops or phones via the USB-C port.

Advantages

The active circuitry separates video and USB signals allowing reliable transmission to displays at greater distances. It supports 4K at 60 Hz for short, high-quality cable runs and drops to 30 Hz for longer runs. The rear USB 2.0 socket is tested for compatibility with interactive displays and projectors. Techconnect modules are removable and replaceable within the surround, so an individual module can be changed without replacing the whole faceplate.

Suitable for

• Conference rooms and meeting spaces with AV faceplates
• Interactive displays and projectors requiring separate HDMI and USB connections
• Installations where a single USB-C connection is preferred for video and data
• Environments needing modular, replaceable AV modules

Key specifications

• Front connector: USB-C (input)
• Rear connectors: HDMI (output) and USB 2.0 (data)
• Video support: up to 4K @ 60 Hz with input/output cables ≤ 3 m (10 ft); 30 Hz for longer runs
• Maximum extension to interactive display: up to 15 m (50 ft) using the separated signals
• Power delivery: not supported (no charging via USB-C)

How to use

Connect a laptop to the module's front USB-C port using a USB-C cable. At the rear, connect an HDMI cable from the module's HDMI socket to the display and connect the rear USB 2.0 socket to the interactive display or projector as required. Use high-quality cables and keep input/output cable lengths to 3 m (10 ft) if you require 4K @ 60 Hz; for longer HDMI runs the module supports 30 Hz. The module fits into a Techconnect surround fixed to a backbox, mudring, or table faceplate.

Recommendations

Use certified, high-quality USB-C and HDMI cables for best signal integrity. Do not rely on this module for device charging—provide separate power where needed. For installations requiring the maximum video refresh rate, keep both input and output cables at or below 3 m (10 ft).
