USB-kaapeli DeLOCK 85245 USB 2.0 0,25 m Micro-USB B musta

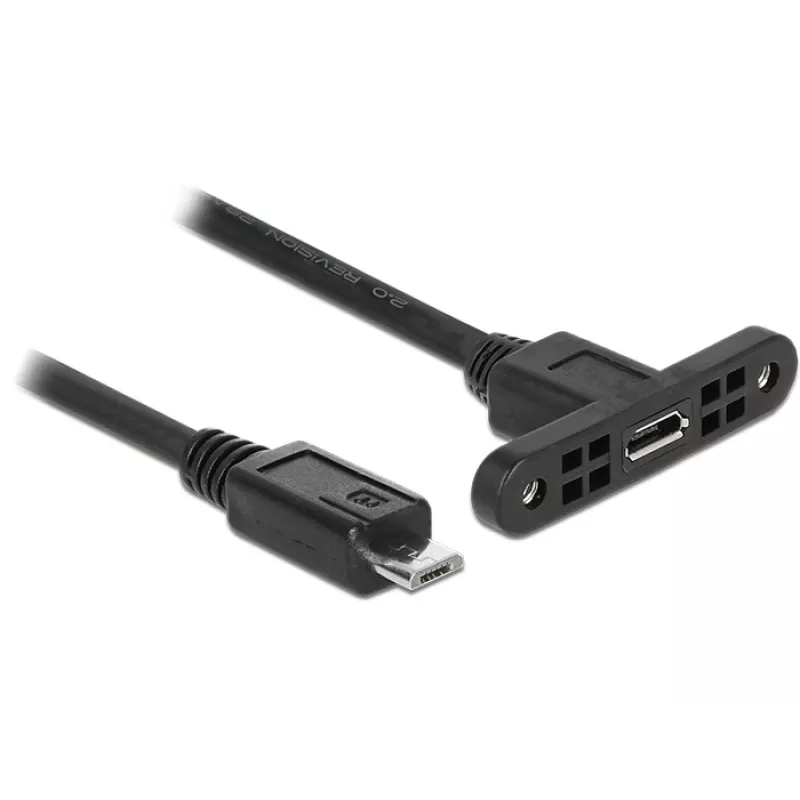

This Delock USB cable extends USB 2.0 connections and enables connection of devices with Micro-USB B ports. Both ends feature Micro-USB B connectors in a male/female arrangement; the female connector can be fixed with two screws to a slot bracket, cable duct or enclosure opening to place a USB port in an accessible position. The cable is 0.25 m long, supports USB 2.0 data rates up to 0.48 Gbit/s and comes in black.

Advantages

The Micro-USB B to Micro-USB B configuration allows extension and panel mounting of a USB connection while keeping standard USB 2.0 compatibility. A screw-mountable female connector enables secure installation in panels or enclosures. Short length reduces cable clutter when devices are close together.

Suitable for

• Extending short-range USB 2.0 connections
• Installing an accessible Micro-USB port in a case or panel
• Connecting devices with Micro-USB B interfaces (mobile devices, peripherals)

Key specifications

• Brand: DELOCK
• Model / MPN: 85245
• EAN: 4043619852451
• Connector 1: Micro-USB B
• Connector 2: Micro-USB B (female, screw-mountable)
• USB version: USB 2.0 (up to 0.48 Gbit/s)
• Cable length: 0.25 m
• Colour: Black

How to use

Connect the male Micro-USB B plug to the device requiring extension and mount the female Micro-USB B connector into the desired bracket, duct or enclosure opening. Secure the female connector with the two mounting screws through the connector housing into the panel or bracket. Once installed, plug the external cable or device into the accessible female port to establish the USB 2.0 connection.

Recommendations

For reliable performance, use this cable for short-distance USB 2.0 connections (devices within 0.25 m). Ensure the panel or enclosure opening matches the connector housing and tighten mounting screws securely but without excessive force. Do not use this cable for USB 3.x speeds or where longer cable length is required.
