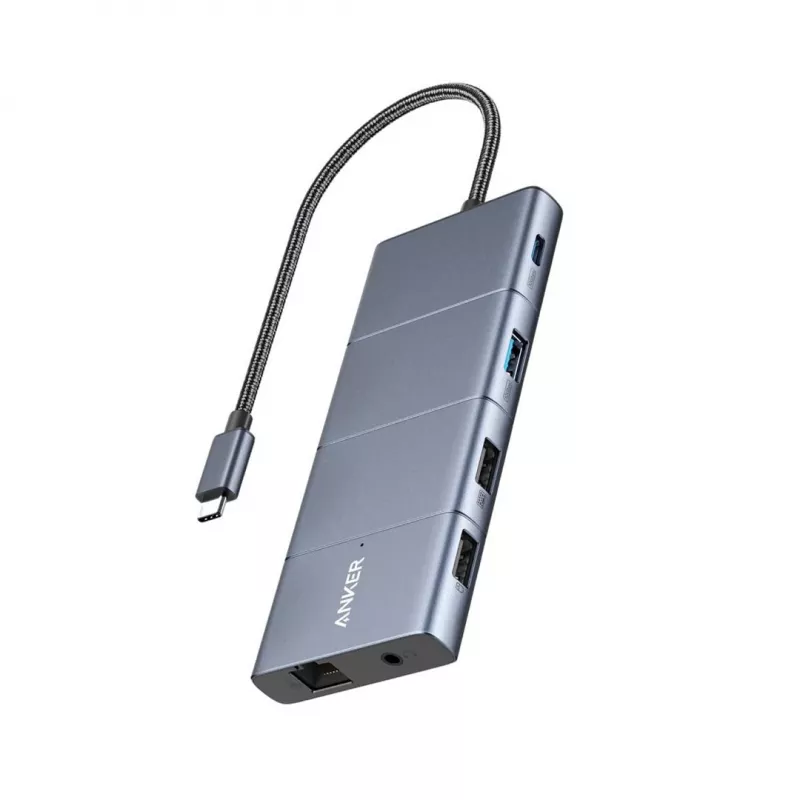

USB-keskitin USB Type-C Anker Innovations A83880A1

Anker 565 USB-C Hub (11-in-1) expands a laptop's connectivity with eleven ports in a single compact unit. It combines high-speed data transfer, dual-monitor video output, pass-through charging, wired Ethernet, card readers and audio connectivity to extend your device's capabilities without adding multiple adapters.

Advantages

This USB Type-C hub provides a mix of high-bandwidth and legacy ports including a 10 Gbps USB-C data port, a 10 Gbps USB-A port, two 480 Mbps USB-A ports, HDMI and DisplayPort video output, SD and microSD card slots, RJ-45 Ethernet and audio connectivity. It supports fast file transfers, reliable wired network access and simultaneous connection of peripherals while keeping a slim, grey design and integrated round cable.

Suitable for

• Expanding ports on modern laptops and ultrabooks with a USB-C port
• Connecting external monitors for single or dual display setups
• High-speed file transfers from SSDs, flash drives and memory cards
• Wired network access for stable internet or local network connections
• Connecting keyboards, mice, headsets and other USB peripherals

Key specifications

• Model: Anker 565 USB-C Hub (A83880A1)
• Ports: 11 total — USB-C 10 Gbps, USB-A 10 Gbps, 2x USB-A 480 Mbps, HDMI, DisplayPort, SD & microSD card slots, RJ-45 Ethernet, audio
• Data transfer rate: up to 10 Gbps on high-speed ports
• Video output: single monitor up to 4K@60Hz (when host supports DP 1.4) or 4K@30Hz (DP 1.2); dual monitors up to 2K@60Hz (DP 1.4) or 1080p@60Hz (DP 1.2)
• Color: Grey

How to use

Connect the hub's integrated USB-C cable to a compatible USB-C port on your laptop. Attach displays via HDMI or DisplayPort and plug in USB peripherals, memory cards or an Ethernet cable as needed. If your laptop supports DisplayPort Alt Mode and the stated DP version, configure display settings in the operating system to enable single or dual monitor output. Use the high-speed USB ports for fast external drives and the card slots for SD/microSD media access.

Recommendations

For optimal video performance, ensure the host laptop's USB-C port supports DisplayPort Alt Mode and the DP version indicated (DP 1.4 for 4K@60Hz). Use the 10 Gbps ports for NVMe or high-speed SSDs and maintain a stable Ethernet connection by using a quality RJ-45 cable. Avoid overloading the hub with high-power devices if the host cannot provide sufficient USB-C power delivery.
