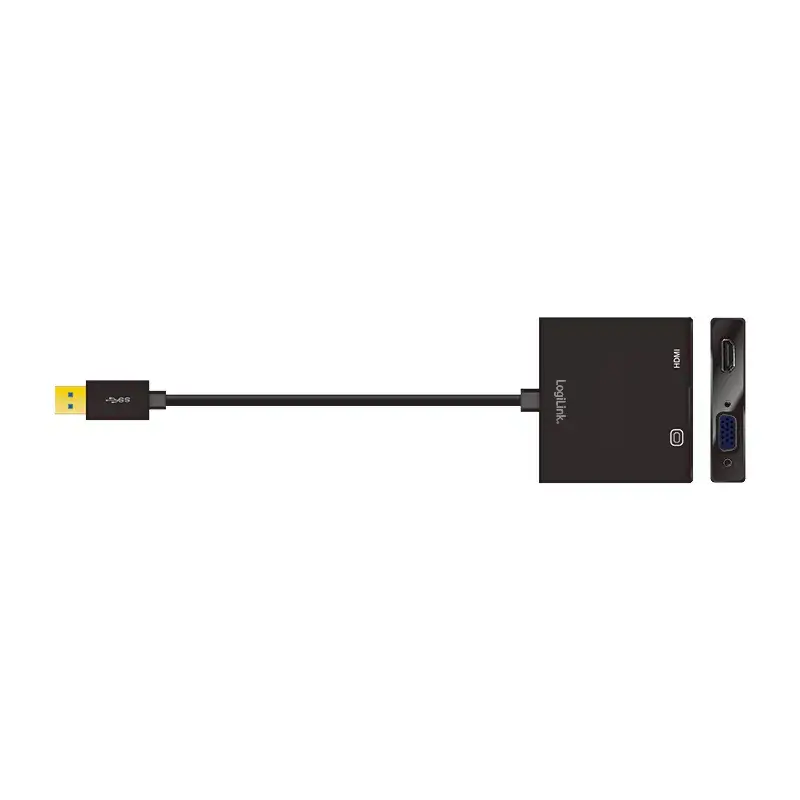

USB-näytönohjainsovitin LogiLink UA0234

The LogiLink UA0234 USB graphics adapter enables connection of an additional monitor with a maximum resolution of 1920 x 1080 pixels. Compliant with the USB 3.0 specification and backwards compatible with USB 2.0, this compact black adapter provides video output over USB and supports simultaneous VGA and HDMI outputs with synchronized images. The adapter supports up to six displays for office applications when multiple adapters are used and includes WHCK/WHQL certified drivers for Windows 7 and 8.

Advantages

Supports USB 3.0 data rates up to 5 Gbps with fallback to USB 2.0, offers Full HD video output at 1920x1080@60Hz in USB 3.0 mode and 800x600 in USB 2.0 mode, and provides synchronized VGA and HDMI outputs. Driver certification (WHCK/WHQL) ensures compatibility with Windows 7 and 8, and the adapter can be used in multi-display setups up to six adapters for typical office tasks.

Suitable for

• Adding a secondary monitor to a laptop or desktop
• Extending desktop workspace for office productivity
• Mirroring the screen to VGA or HDMI displays
• Temporary multi-monitor setups using multiple adapters (up to six)

Key specifications

• Model: LogiLink UA0234
• Interface: USB 3.0 (backwards compatible with USB 2.0)
• Maximum video output: 1920 x 1080 @ 60Hz (USB 3.0)
• Video output (USB 2.0): 800 x 600
• Data rate: up to 5 Gbps (USB 3.0)
• Outputs: VGA and HDMI (synchronized)
• Driver: WHCK/WHQL certified for Windows 7 and 8
• Colour: Black

How to use

Install the supplied or downloadable WHCK/WHQL certified driver on a compatible Windows system (Windows 7 or 8) before connecting the adapter. Plug the adapter into a USB 3.0 port for Full HD performance; a USB 2.0 port may be used with reduced video resolution. Connect your monitor via VGA or HDMI. Configure display mode in the operating system to Primary, Extended or Mirror as required.

Recommendations

For best performance, connect the adapter to a USB 3.0 port on your computer and use an HDMI cable for digital displays. When using multiple adapters for extended desktop setups, ensure sufficient USB bandwidth and system resources; the adapter is intended for office and productivity applications rather than high-performance gaming or 3D rendering.
