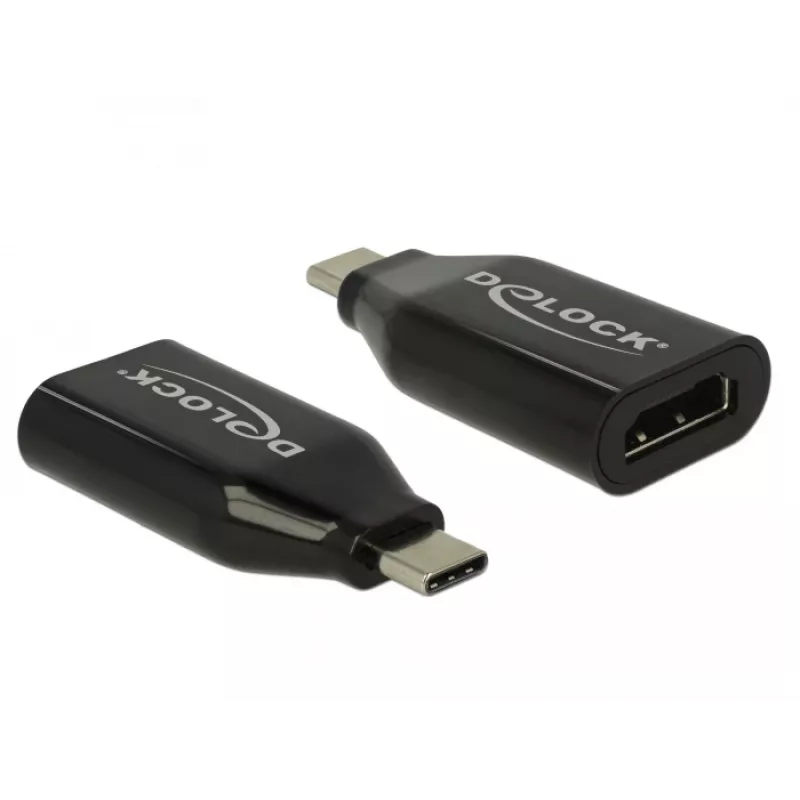

USB-näyttösovitin DeLOCK 62978

The DeLOCK 62978 USB graphics adapter enables connection of an HDMI monitor to a computer with a USB-C™ port that supports DisplayPort Alternate Mode. Equipped with a Parade PS176 chipset and finished in black, the compact adapter (22.5 × 48.6 × 10.3 mm) supports resolutions up to 4096 × 2160 pixels and is compatible with many laptops such as MacBook, Chromebook and other systems with the required USB-C or Thunderbolt™ 3 interface support.

Advantages

This adapter provides high-resolution HDMI output from a USB-C port using DisplayPort Alt Mode, uses a reliable Parade PS176 chipset for signal conversion, and has a compact, black housing that is easy to carry and install. It also supports operation on Thunderbolt™ 3 interfaces where available.

Suitable for

• Connecting an external HDMI monitor to a USB-C laptop (DisplayPort Alternate Mode)
• Extending or mirroring a laptop display for presentations or multitasking
• Using with MacBook, Chromebook and similar notebooks with USB-C or Thunderbolt™ 3

Key specifications

• Model: DeLOCK 62978
• Chipset: Parade PS176
• Maximum resolution: 4096 × 2160 pixels
• Connector: USB-C (requires DisplayPort Alternate Mode) to HDMI
• Product colour: Black
• Dimensions (W × D × H): 22.5 × 48.6 × 10.3 mm
• EAN: 4043619629787

How to use

Plug the adapter into the computer's USB-C port that supports DisplayPort Alternate Mode (or into a Thunderbolt™ 3 port). Connect an HDMI cable from the adapter to the HDMI input of the monitor or TV. Configure the display settings in the operating system to extend or mirror the desktop as required. No additional drivers are typically needed when the host device provides DP Alt Mode support.

Recommendations

Ensure the host USB-C port supports DisplayPort Alternate Mode or Thunderbolt™ 3; otherwise the adapter will not provide video output. Use a high-speed HDMI cable for best results and set the monitor resolution in the OS to match the adapter's maximum supported resolution where needed.
