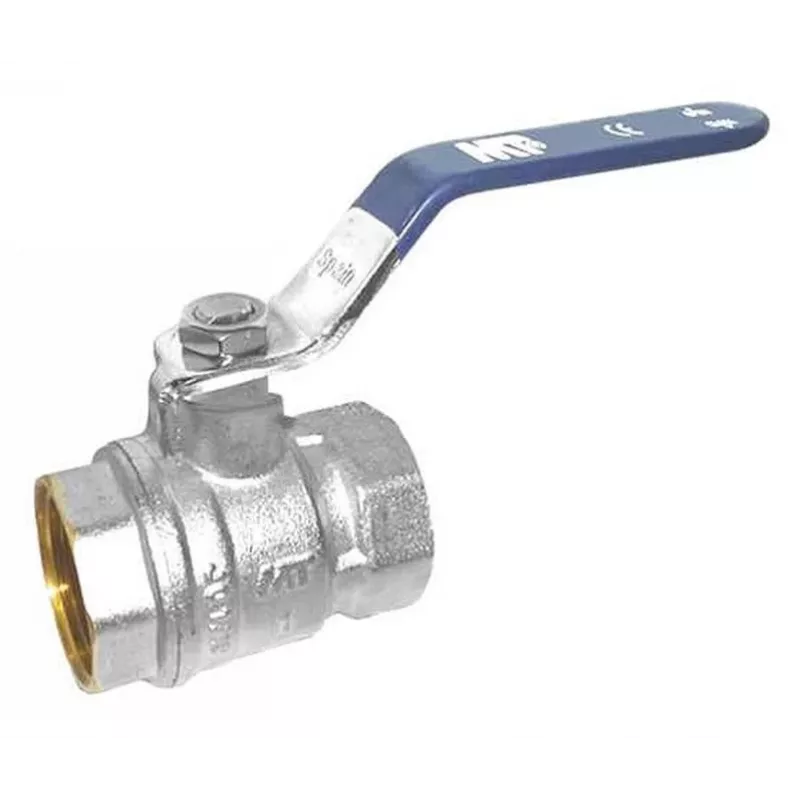

VALVE palloventtiili vesi 2 1/2" sisäkierteellä ja pitkällä vivulla 4092065

This VALVE water ball valve, model 4092065, is a high-quality full bore valve designed for reliable flow control in plumbing, heating, industrial, and irrigation systems. Featuring a 2 1/2 inch female threaded (FF) BSP connection and a long lever handle with PVC coating, it offers easy quarter-turn operation and excellent corrosion resistance. The valve is constructed with a nickel-plated brass body, chrome-plated brass ball, brass stem, and PTFE seals, ensuring durability and leak-free performance up to PN40 (40 bar / 580 PSI). Suitable for water, non-aggressive fluids, and compressed air, it operates within a temperature range of -10°C to 120°C. Certified with CE and ACS, this valve is bi-directional and provides high corrosion resistance for long-lasting service.

Advantages

Full bore design minimizes pressure drop and allows maximum flow. The long lever handle provides comfortable grip and clear visual indication of valve position. Nickel-plated brass body offers superior corrosion resistance compared to standard brass. PTFE seals ensure low friction and excellent chemical resistance. Quarter-turn operation enables quick and easy open/close control.

Suitable for

• Water supply and distribution systems
• Heating and cooling circuits
• Industrial process lines
• Irrigation and agricultural systems
• Compressed air networks

Key specifications

• Valve Type: Ball Valve
• Connection Size: 2 1/2 inches (DN65)
• Connection Type: Female Threaded (FF) BSP
• Body Material: Nickel-Plated Brass
• Ball Material: Chrome-Plated Brass
• Stem Material: Brass
• Seal Material: PTFE
• Handle Type: Long Lever Handle (Steel with PVC coating)
• Operating Mechanism: Quarter Turn (90°)
• Nominal Pressure: PN40 (up to 40 bar / 580 PSI)
• Maximum Operating Temperature: 120°C (248°F)
• Minimum Operating Temperature: -10°C (14°F)
• Bore Type: Full Bore
• Media Compatibility: Water, non-aggressive fluids, compressed air
• Certification: CE, ACS
• Flow Direction: Bi-directional
• Corrosion Resistance: High

Recommendations

For optimal performance, ensure the valve is installed with proper thread sealing and is not subjected to pressures or temperatures exceeding the specified limits. Regularly operate the valve to prevent seizing. This valve is not recommended for use with aggressive chemicals or steam.
