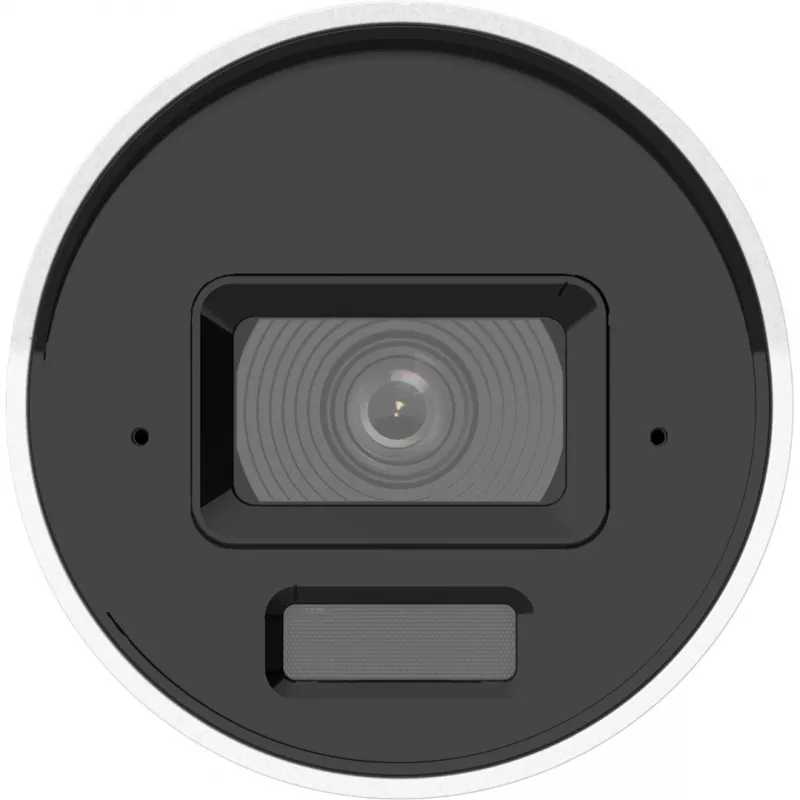

Valvontakamera Hikvision DS-2CD2043G2-LI2U 2,8 mm

Certification: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013 | Maximum aperture number: 1.6 | Observe distance: 25 m | Wide Dynamic Range (WDR): Yes | Pan range: 0 - 360° | Minimum illumination: 0 lx | Length: 176.3 mm | LED type: IR/White | Card reader integrated: Yes | HTTPS encryption: Yes | Package height: 117 mm | Maximum memory card size: 512 GB | Package depth: 120 mm | Recognize distance: 12 m | Bit rate: 32 Kbps - 8 Mbps | Region of Interest (ROI) encoding: Yes | Detect distance: 63 m | Frame rate: 30 fps | Fixed focal length: 2.8 mm | Compatible memory cards: MicroSD (TransFlash) | Total megapixels: 4 MP | Optical sensor size: 25.4 / 2.9 mm (1 / 2.9") | Housing material: Metal | Diameter: 7.44 cm | Number of cameras: 1 | Compatible memory cards: MicroSDXC | Noise reduction technology: 3D noise reduction | Progressive scan: Yes | Signal-to-Noise Ratio (SNR): 52 dB | Ethernet interface type: Fast Ethernet | Night vision distance: 40 m | Ethernet LAN: Yes | Angle of rotation: 360° | Back Light Compensation (BLC): Yes | Wi-Fi: No | Protection features: Dust resistant | International Protection (IP) code: IP67 | Highlight Compensation (HLC): Yes | Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Protection features: Water resistant | Noise reduction: Yes | Compatible memory cards: MicroSDHC | Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | IP address filtering: Yes | Camera shutter speed: 1/3 - 1/100000 s | Supported graphics resolutions: 1280 x 720 (HD 720) | Maximum resolution: 2688 x 1520 pixels | Reset button: Yes | Supported graphics resolutions: 640 x 480 (VGA) | Ethernet LAN (RJ-45) ports: 1 | Connectivity technology: Wired | Storage temperature (T-T): -30 - 60 °C | Networking standards: IEEE 802.3af | Built-in microphone: Yes | Supported graphics resolutions: 640 x 360 | Power source type: DC, PoE | Operating relative humidity (H-H): 0 - 95% | Storage relative humidity (H-H): 0 - 95% | Bluetooth: No | Supported graphics resolutions: 1920 x 1080 (HD 1080) | Form factor: Bullet | Package width: 234 mm | Type: IP security camera | Power consumption (max): 6 W | Product colour: White | Supported graphics resolutions: 2688 x 1520 | Weight: 515 g | Package weight: 760 g | Operating temperature (T-T): -30 - 60 °C | Tilt angle range: 0 - 90° | User access level: Administrator, Operator, User | Pixel counter: Yes | Password reset via email: Yes | Flash log: Yes | Infrared (IR) cut-off filter: Yes | Mounting type: Ceiling/wall | Video motion detection: Yes | Number of users: 32 user(s) | Sensor type: CMOS | Gain control type: Auto | Video compression formats: H.264+ | Infra-red wavelength: 850 nm | Password protection: Yes | Heartbeat: Yes | Identify distance: 6 m | Behavior analysis: Line crossing detection | Active tampering alarm: Yes | Mirror: Yes | Night vision: Yes | Languages support: Multi | DC output current: 0.5 A | Video compression formats: H.265+ | Power consumption (Power over Ethernet (PoE)): 7.5 W | Digest authentication: Yes | Number of languages: 33 | Video compression formats: M-JPEG | DC output voltage: 12 | Dynamic range: 120 dB | Number of sensors: 1 | Web browser: Yes | Placement supported: Indoor & outdoor | Audit log: Yes | Day/night mode: Yes | Video streaming: Yes | Live view: Yes | Number of lenses: 1 | Video compression formats: H.265 | Video compression formats: H.264 | Lens viewing angle, vertical: 57° | Bit rate range: 32 - 320 Kbit/s | Sample rates: 8 - 48 kHz | Number of simultaneous live view channels: 6 channels | Lens viewing angle, horizontal: 104° | Lens viewing angle, diagonal: 122°

How to use

Mount the camera at the desired location with a clear view of the monitored area, ensuring the chosen position matches the wide-angle coverage of the 2.8mm lens. Connect the device to power and your local network using the appropriate power-over-Ethernet (PoE) or external power source supported by your system. Configure network settings and enable motion detection and analytics through the camera’s web interface or your network video recorder software. Adjust image settings such as exposure, gain, and privacy masks as needed to optimize video quality for the specific environment.

Recommendations

Install the camera at a height that balances wide coverage and facial recognition needs (typically 2.5–4 meters). For best low-light results, avoid direct bright light sources facing the lens and use complementary lighting if required. Regularly check firmware updates and maintain a secure network configuration to ensure reliable operation and protection against unauthorized access.
