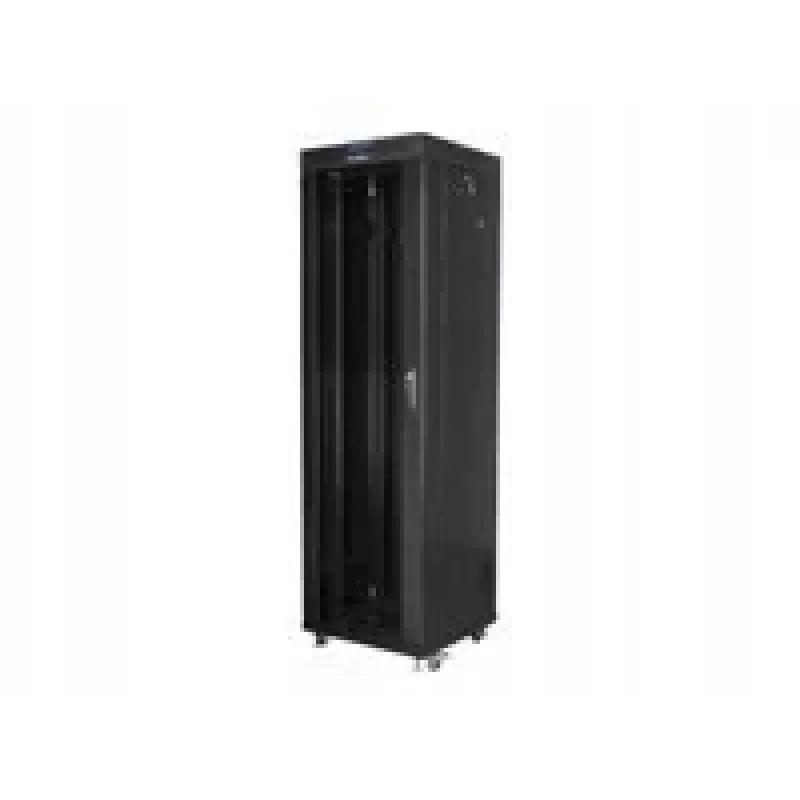

Vapaasti seisova räkki Lanberg FF01-6642-12BL

Free standing Lanberg cabinet FF01-6642-12BL is a 19" rack enclosure designed to house networking and server equipment with a maximum load capacity of 800 kg. Intended for networks, server rooms, small and medium businesses and data centres, the cabinet also supports low-voltage systems such as cable TV, alarm and fire protection, access control, CCTV and IP surveillance. The construction is made of high-grade cold-rolled steel, providing adjustable depth for vertical mounting rails. The cabinet ships in three flat packs for easier transport and requires self-assembly.

Advantages

The cabinet features a front tempered glass door with lock that can be fitted to open to the right or left, removable side panels with locks, and a rear solid steel door with lock. An integrated LCD display on the front shows internal temperature, current time and fan status. Cable entry panels are provided on the top and bottom and the fan tray includes two 230 V fans. The package also contains accessories for rail installation, M6 cage nuts and blank entry panels.

Key specifications

• Model: Lanberg FF01-6642-12BL
• Rack size: 19"
• Maximum load capacity: 800 kg
• Material: cold-rolled steel
• Doors: front tempered glass door (reversible), rear solid steel door
• Side panels: removable with locks
• Depth-adjustable vertical mounting rails
• Front LCD display: shows temperature, time and fan status
• Fan tray: 2 × 230 V fans
• Cable entry: top and bottom with blank entry panels
• Accessories included: rail mounting hardware, M6 cage nuts, blank panels
• Packaging: three flat packs, self-assembly required

How to use

Assemble the cabinet following the supplied instructions from the three flat packs, mount the vertical rails to the required depth and install equipment in the 19" rack positions using the supplied M6 cage nuts and rail hardware. Choose door orientation (left or right) for the front glass door during assembly. Route cables through the top or bottom cable entry panels and install the blank panels where entries are not used. Connect the fan tray to a 230 V supply and monitor internal temperature, time and fan status via the front LCD display.

Recommendations

The cabinet is suitable for deployment in network rooms and data centres; use appropriate airflow management and mounting practices, verify floor loading capacity relative to the 800 kg maximum, and ensure the electrical supply matches the 230 V fan requirements. For CCTV, alarm or access control systems, follow relevant installation standards and local regulations.
