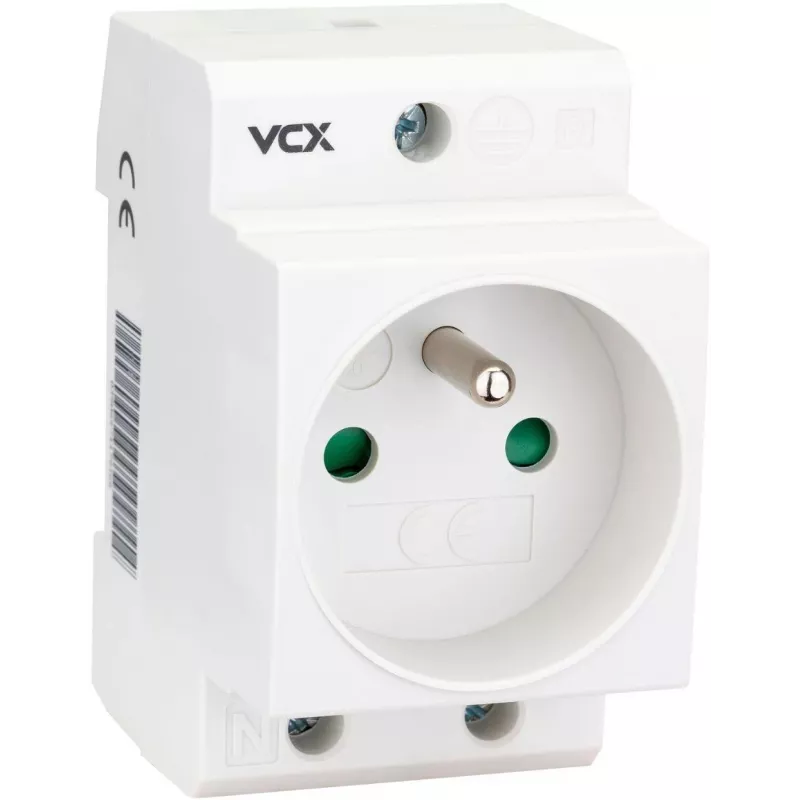

VCX GN TH DIN-kiskopistorasia suojajohtimella 230V 16A Schuko tyyppi F

In industrial control panels and distribution boards, a reliable power outlet directly on the DIN rail saves space and simplifies wiring. The VCX GN TH socket mounts onto a standard TH 35 rail and provides a 230V Schuko outlet with earthing pin, rated for 16A. Its snap-on installation and screw terminals make it a practical choice for panel builders and maintenance technicians who need a safe, accessible power point inside enclosures.

Key specifications

• Socket standard: Schuko (Type F) with earthing pin
• Mounting: DIN rail TH 35 (35 mm), snap-on
• Nominal voltage: 230V AC
• Nominal current: 16A
• Frequency: 50/60 Hz
• Poles: 2P+E (phase, neutral, earth)
• Ingress protection: IP20
• Terminal type: screw terminals
• Max wire cross-section: 4 mm²
• Housing material: thermoplastic (PC/ABS)
• Colour: grey
• Operating temperature: -25°C to +55°C
• Storage temperature: -30°C to +70°C
• Certifications: CE, RoHS
• Number of DIN modules: 2
• Application: industrial control panels, electrical enclosures, distribution boards

Why choose it

The VCX GN TH offers a compact, DIN-rail-mounted power outlet that integrates seamlessly into your existing installation. Its robust thermoplastic housing withstands harsh industrial environments, while screw terminals ensure secure and durable connections. The earthing pin provides essential safety, and the 16A rating supports a wide range of tools and devices.

Ideal use cases

• Providing a service outlet inside control cabinets for maintenance equipment
• Powering test instruments or small tools during commissioning
• Adding a convenient power point in distribution boards for temporary loads
• Industrial automation panels where space is limited

Good to know

This socket occupies two standard DIN modules (approx. 36 mm width). It is designed for indoor use in dry environments (IP20). Always ensure the circuit is de-energized before installation. The product is compliant with CE and RoHS directives, ensuring quality and environmental safety.
