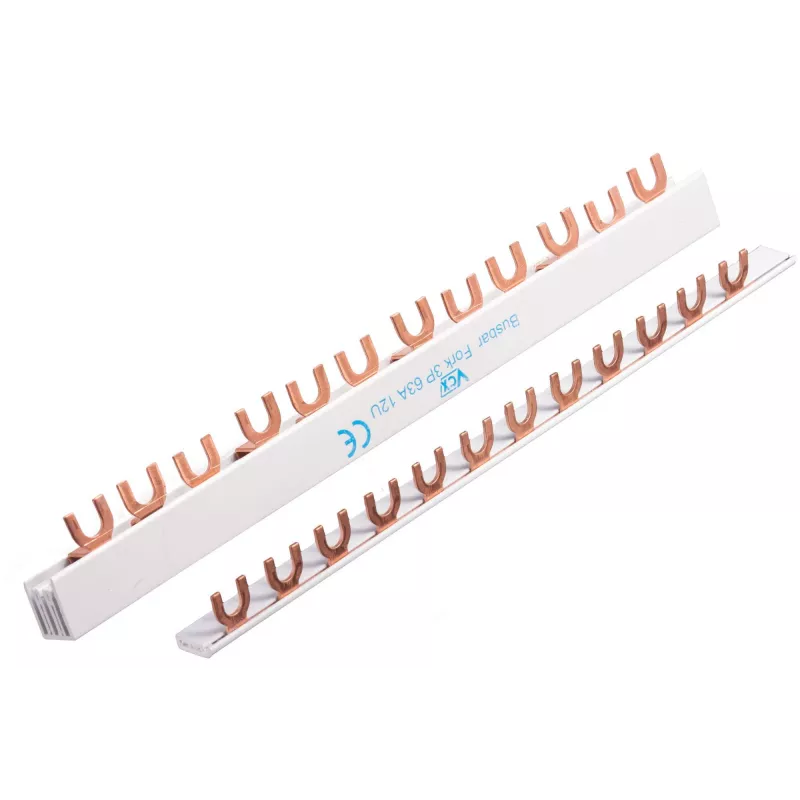

VCX SZD63A 3F 18X3M 3-napainen 63A kiskosto 54 moduulia 3-vaiheinen harmaa

The VCX SZD63A 3F 18X3M is a high-quality comb busbar designed for efficient power distribution in modular electrical installations. With 3 poles, a rated current of 63 A, and support for up to 54 modules (3x18), this busbar is ideal for 3-phase systems. It features a copper conductor with a cross-section of 10 mm² and is rated for 400 V AC. The busbar is made with self-extinguishing plastic insulation in grey, ensuring safety and durability. It complies with PN-EN 60947-7-1 standards and is designed for DIN rail mounting with an 18 mm module pitch.

Advantages

Reliable power distribution for modular devices, easy installation on DIN rail, high current capacity of 63 A, and robust construction with copper conductors and self-extinguishing insulation.

Suitable for

• Power distribution in electrical panels
• Connecting modular circuit breakers, RCDs, and other DIN rail devices
• 3-phase commercial and industrial installations

Key specifications

• Type: Comb Busbar
• Number of Poles: 3-Pole (3P)
• Rated Current: 63 A
• Number of Modules: 54 (3x18)
• Phase Configuration: 3-Phase
• Conductor Cross-section: 10 mm²
• Rated Voltage: 400 V AC
• Conductor Material: Copper
• Insulation Material: Self-extinguishing plastic
• Connection Type: Pin Type
• Module Pitch: 18 mm
• Standard Compliance: PN-EN 60947-7-1
• Mounting Type: For DIN rail
• Insulation Color: Grey

Recommendations

For optimal performance, ensure compatibility with your modular devices and follow installation guidelines. This busbar is a reliable choice for professional electricians.
